NUC Recovery Step 1: Download Media (Bean Canyon - Zoom)

Please check find the image for your specific NUC from the list below. Using the wrong recovery media will prevent the system from running optimally. Please contact Logitech support if you have any questions.

On the bottom of your Nuc, look for the sticker below and download the corresponding vhdx file. Once downloaded, mount the VHDX file by double clicking on it. A new drive will be mounted to your PC. Then copy the contents of the drive (Do NOT copy the VHDX file) to your USB drive.



Bean Canyon (Zoom)

Older NUC systems may not have the above sticker, or the sticker may say

ZOOM-LOGNUC8i5BEH or ZOOM-LOGNUC8i7BEH

Media Download: logi-z234-rev1-recovery.vhdx (19 GB)

Hash: D0D1CCA698439598E86EE0780D91F9D2B836C1E9592149B4BE93ADE4595087A2

Bios Version: 95 BECFL357.86A.0095.zip Update Instructions ASUS-NUC-Visual-BIOS-Update.pdf



Image Details

Windows Version: Microsoft Windows 10 IoT Enterprise LTSC (10.0.19044 21H2)

Zoom Room Version: 5.16.1.3257

DisplayLink version: 11.1 M1

Major Changes

  • Intel no longer supports the NUC platform.

    • DSA tool is no longer supported

    • SSU tool is no longer supported

    • ASUS as of yet does not have a driver update tool

  • New hardware Arena Canyon :

  • Gen 5 / 234

    • NUC13L3Kv5

    • 16 GB Memory

    • vPro

    • 3000 MB/s Drive (compared to 2500 previously)

    • Detailed technical specs can be found below

Language Support

cs-CZ
de-DE
en-GB
en-US(Default)
es-ES
es-MX
fr-CA
fr-FR
it-IT
ja-JP
pt-BR
pt-PT
ru-RU
zh-CN
zh-TW

Troubleshooting

IMPORTANT: After you finish the recovery process, the password for ZoomAdmin will be reset and you will be required to change the password on the first logon.

Login Details

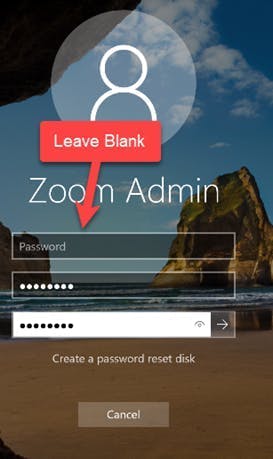

The current password is empty, do not enter a password in the existing password field. If you forget the password or do not create a password reset disk, and you forget the password, you will need to run through the recovery process again.

BIOS control

At the POST screen Press F2 to enter the BIOS. If this fails, you will need to plug in your keyboard to the USB-C Port with an adapter.

  1.  Click on the Advanced Tab

  2. Click on Devices

  3. Click on USB

  4. On the right side select the port that has the USB drive connected, (do not enable all ports) and set the connection to enabled

  5. Press F10 to save the settings and Reboot
