Bundled Compute Guide

NUC Recovery Troubleshooting (Teams)

If the system fails to boot from the USB drive, follow the troubleshooting steps for your model (scroll down if yours is not listed at the top).

Teams Bean Canyon

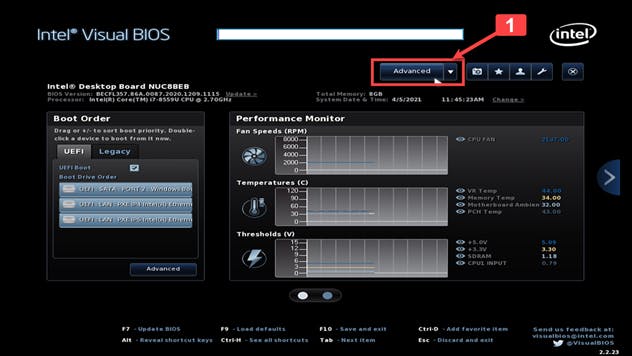

At the POST screen Press F2 to enter the BIOS. If this fails, you will need to plug in your keyboard to the USB-C Port with an adapter.

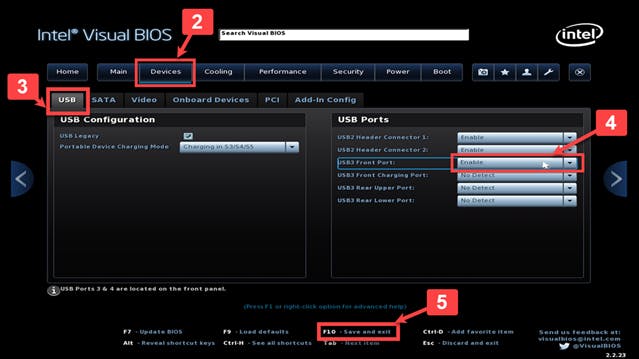

  1.  Click on the Advanced Tab

  2. Click on Devices

  3. Click on USB

  4. On the right side select the port that has the USB drive connected, (do not enable all ports) and set the connection to enabled

  5. Press F10 to save the settings and Reboot

Teams Tiger Canyon

At the POST screen Press F2 to enter the BIOS. If this fails, you will need to plug in your keyboard to the USB-C Port with an adapter.

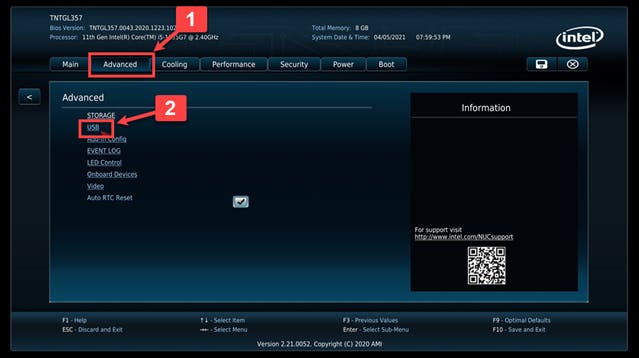

  1. Click on Advanced

  2. Click on USB

  3. Select the port that has the USB drive connected, (do not enable all ports) and set the connection to enabled

  4. Press F10 Save the settings
