Right Sight 3: Presenter View
What is Right Sight 3?
Right Sight 3 is Logitech’s most advanced video processing and framing technology supporting multiple center-of-table and wall-mounted cameras with Smart Switching.
Smart Switching
Powerful Smart Switching technology automates in-room camera switching delivering a curated, broadcast-like experience while keeping remote participants fully connected to the conversation, wherever it moves.
Presenter View

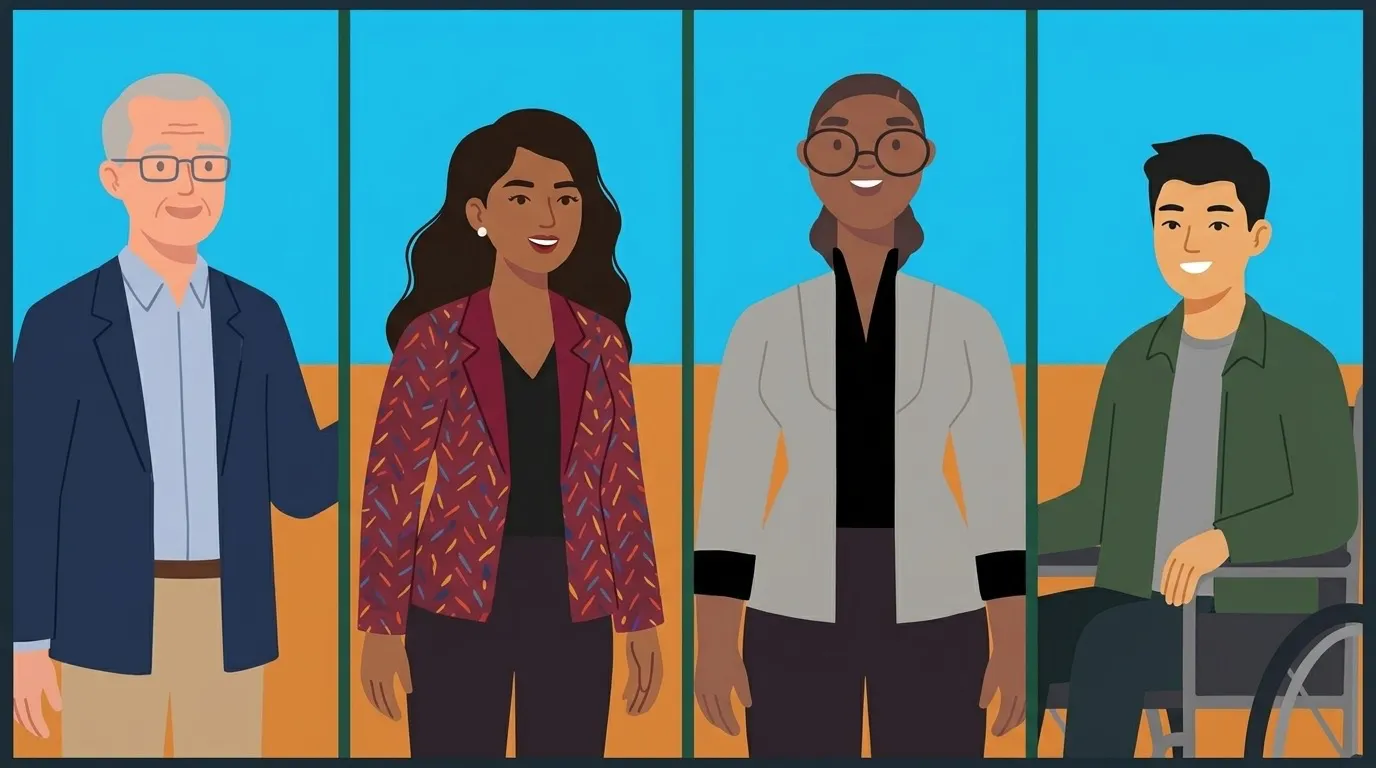

Presenter View tracks presenters as they move across a room, keeping them centered so remote participants can follow them throughout a session. Presenter View can display up to four individual presenters simultaneously in separate grid frames. It operates as an additional framing mode alongside Grid View, Group View, and Speaker View, and is available on the Rally AI Camera and Rally AI Camera Pro running CollabOS 2.2 or higher.
For updates on currently available features, please see CollabOS Devices, Compatibility and Features.
Enabling & Configuring Presenter View
Enabling Presenter View in CollabOS Settings
Navigate to CollabOS settings.
Select "Camera", then tap on the camera to be configured.
Choose "Presenter View" to enable it.
Enabling Presenter View in Sync App
Open Sync App
Select the desired device, then choose “Camera” under the device section.
Select "Right Sight 3".
Select "Presenter View".
Enabling Presenter View features in Sync
Log into your Sync account.
Select the desired device, then choose “Camera” under the device section.
Select "Right Sight 3".
Select "Presenter View".
Activating Presenter View within Provider Applications
Before activating Presenter View within Provider Applications, complete the above steps to enable and configure the functionality.
Activating Presenter View (Presenter Focus) in Zoom Rooms
Pre-Meeting (Administrators)
In Zoom Device Manager (ZDM), go to Room Management > Zoom Rooms > Account Settings > Devices > Camera Control Mode, then enable Presenter Focus. You can configure this setting at the room level or at the account level to apply it to all rooms.
In-Meeting (Users)
On the Zoom Rooms Controller, select Camera Controls > Mode > Presenter Focus.
Activating Presenter View in Microsoft Teams Rooms
Pre-Meeting (Administrators)
Today, Microsoft Teams Rooms on Windows (MTRoW) does not offer camera mode selection on the Tap. To use Presenter View in MTRoW, Administrators configure and activate Presenter View through Sync App in the admin profile to leverage this mode during meetings.
In-Meeting (Users)
Users will automatically leverage Presenter View in meetings when configured and activated by Teams Rooms Administrators in advance as described above.
Note: Presenter View on Microsoft Teams Rooms on Android (MTRoA) is currently not supported by Microsoft
Activating Presenter View in Google Meet on Android
Pre-Meeting (Administrators)
For Google Meet on Android (GMoA) devices, administrators can adjust the default camera framing to ‘Manufacturer Framing’ following these instructions after activating Presenter View on a supported CollabOS device.
In-Meeting (Users)
For user instructions, please refer to the RightSight Hub page for Google Meet to activate ‘Framing by Logitech’.
Configuring Presenter View

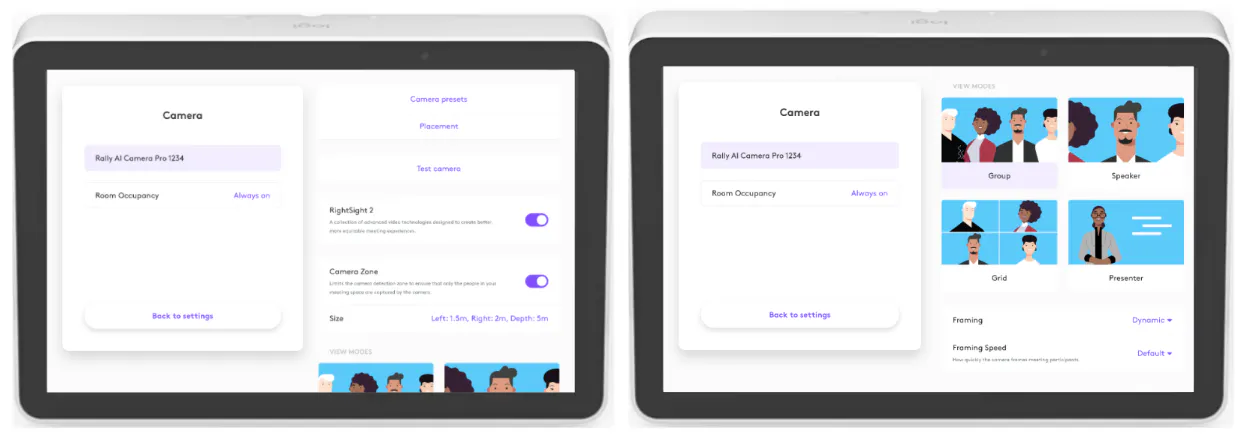

Configuring Presenter View features in CollabOS Settings
Navigate to CollabOS settings.
Select "Camera", then tap on the camera to be configured.
Choose "Presenter View."
If you have not selected this mode before, the configuration options appear automatically.
After the initial configuration, tap on "Reconfigure Presenter View" to make adjustments.
Use the handles to adjust the rectangular area to match your desired presentation zone. Use Tap to adjust the zone; the CollabOS host screen shows the zone over the camera preview.
To preview the configured zone as a remote participant would see it, tap “Enable preview”.
Make any needed adjustments, then tap “Disable preview” when finished.
Once the zone is sized to your preferences, tap “Done”.
To make further changes, select “Reconfigure Presenter View.
Configuring Presenter View features in Sync App
Navigate to Rally AI Camera or Rally AI Camera Pro.
Select "Camera" under the selected device.
Enable Right Sight 3 if needed.
Choose "Presenter View"
The initial configuration appears automatically. After the first configuration, select "Reconfigure Presenter View" to make adjustments.
Use the handles to adjust the rectangular area to match your desired presentation zone. During configuration, the zone appears over the live video preview in Sync App.
Once the zone is sized to your preference, select “Confirm”.
To make further changes, select “Reconfigure Presenter View.
Presenter View Options
Framing Style
Presenter View offers three framing styles. An administrator selects the style during configuration; users cannot change it during a meeting.

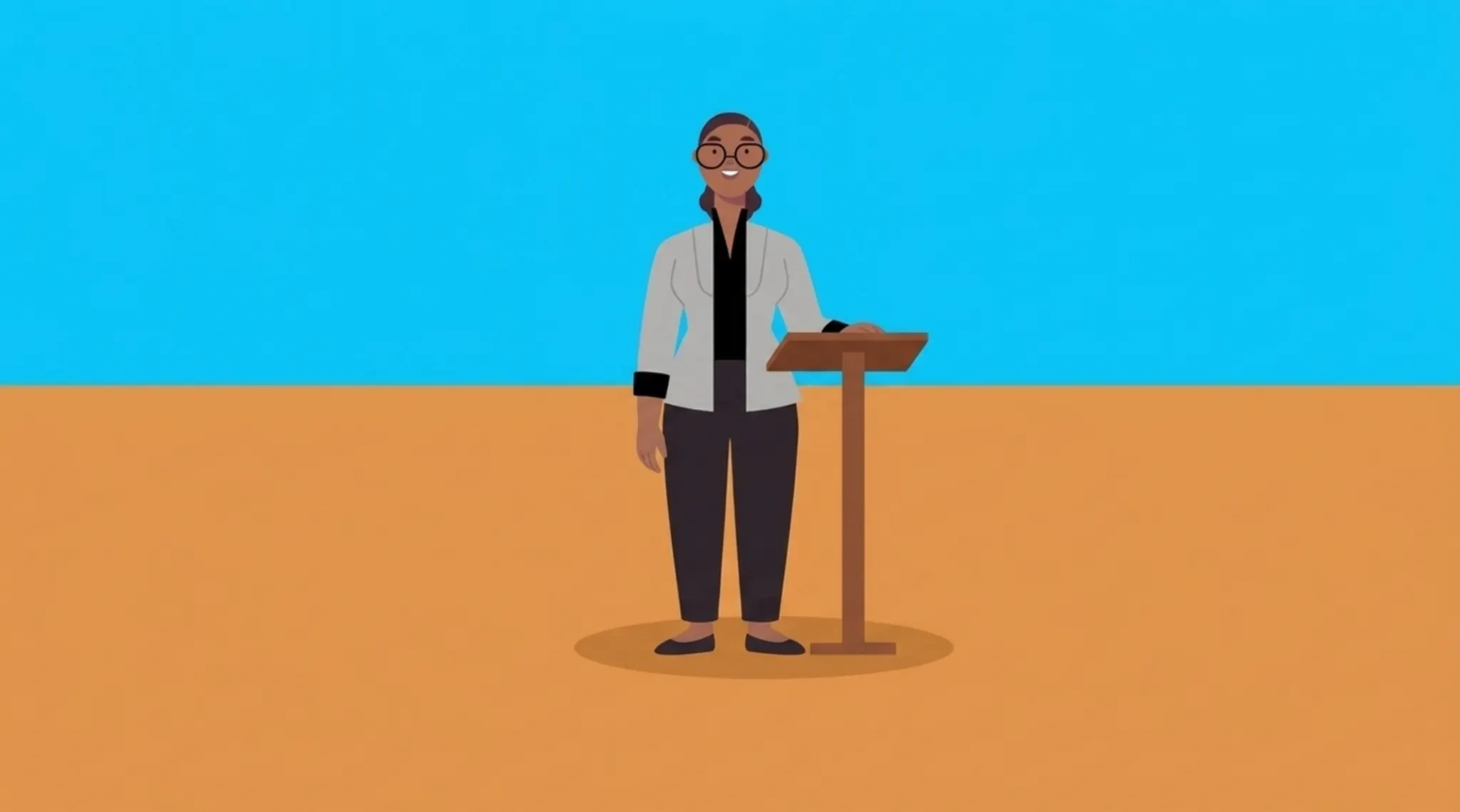

Default
The Default framing style balances a clear view of the presenter with broader room context. It is recommended for most users

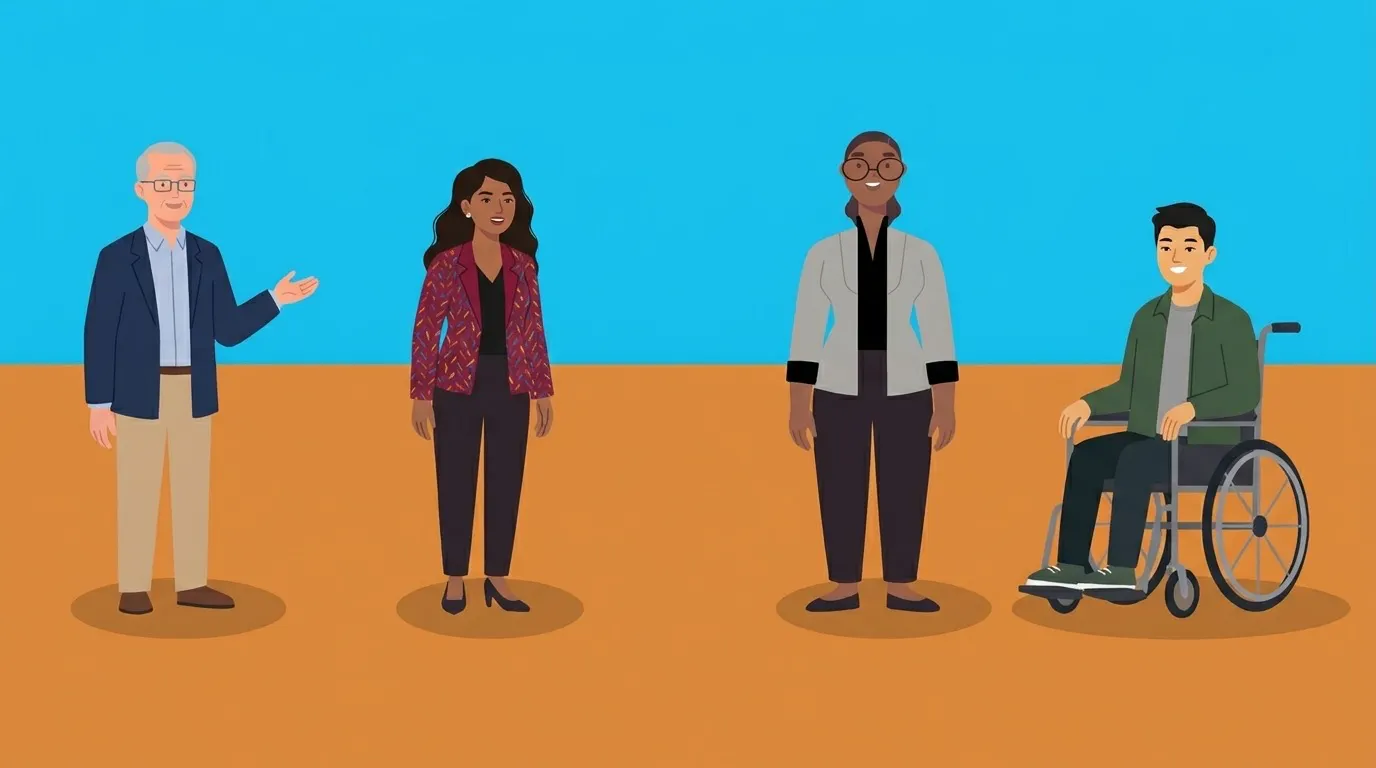

Wide
The Wide framing style provides more context by showing more of the surroundings and the presenter’s body language. It is also well suited for spaces where multiple presenters are commonly shown at the same time.

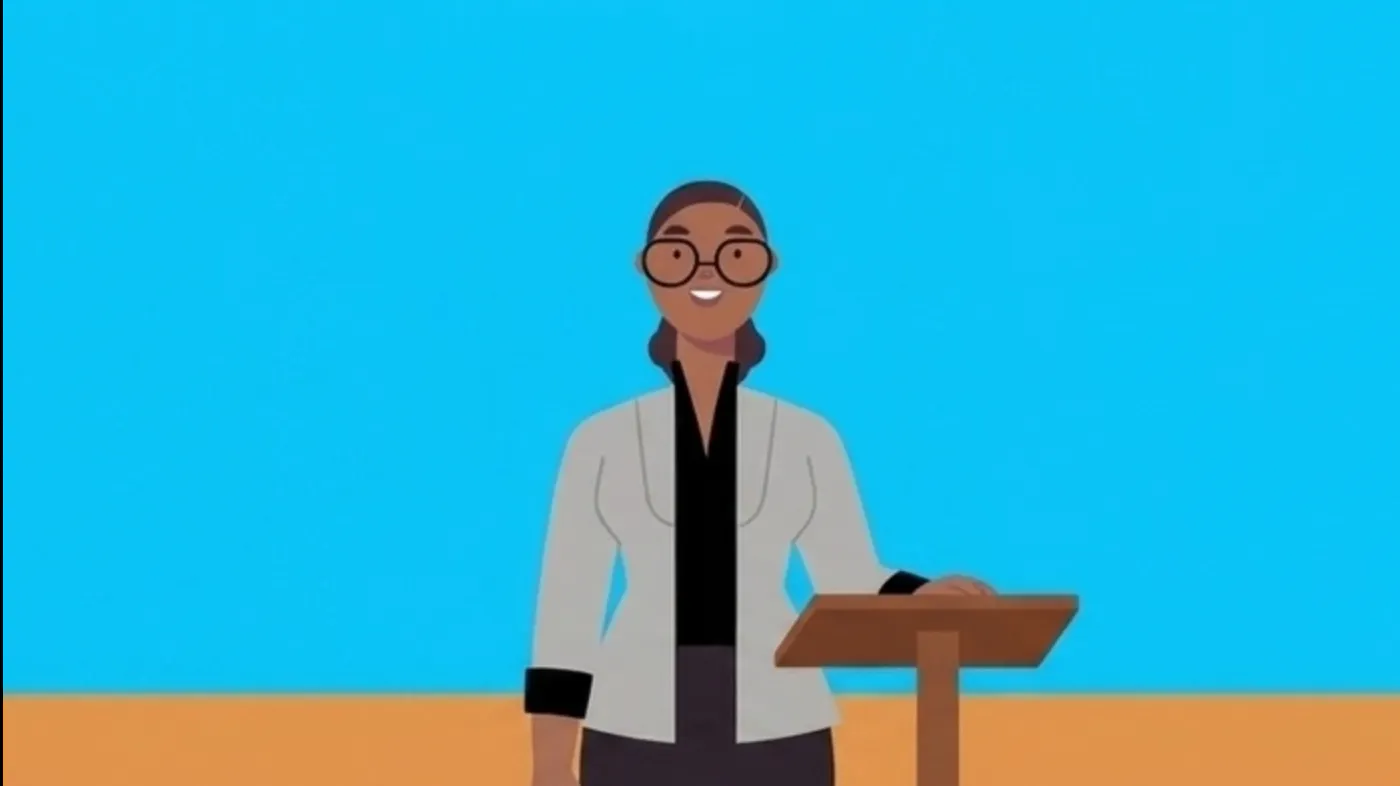

Tight
The Tight framing style provides a closer view of the presenter’s facial expressions and reduces visual distractions from the surrounding environment. Because it can create more motion during a presentation, use this style selectively.
Sub-Tiling
Sub-Tiling automatically frames each presenter in their own tile. If presenters stand close together, it groups them into a shared frame instead.
Sub-Tiling supports up to four presenters at once. If five or more presenters are present, Presenter View will frame the entire group.

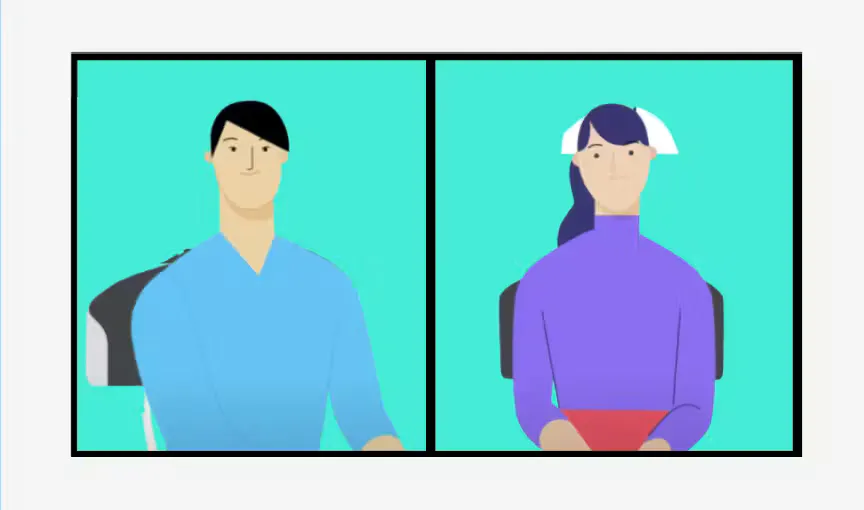

50-50 Layout

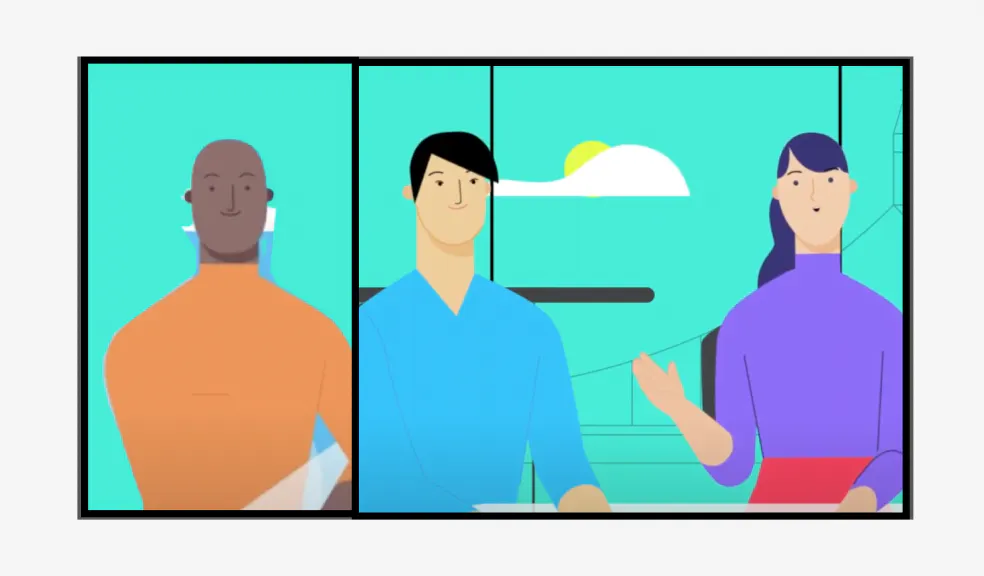

33-66 or 66-33 Layout

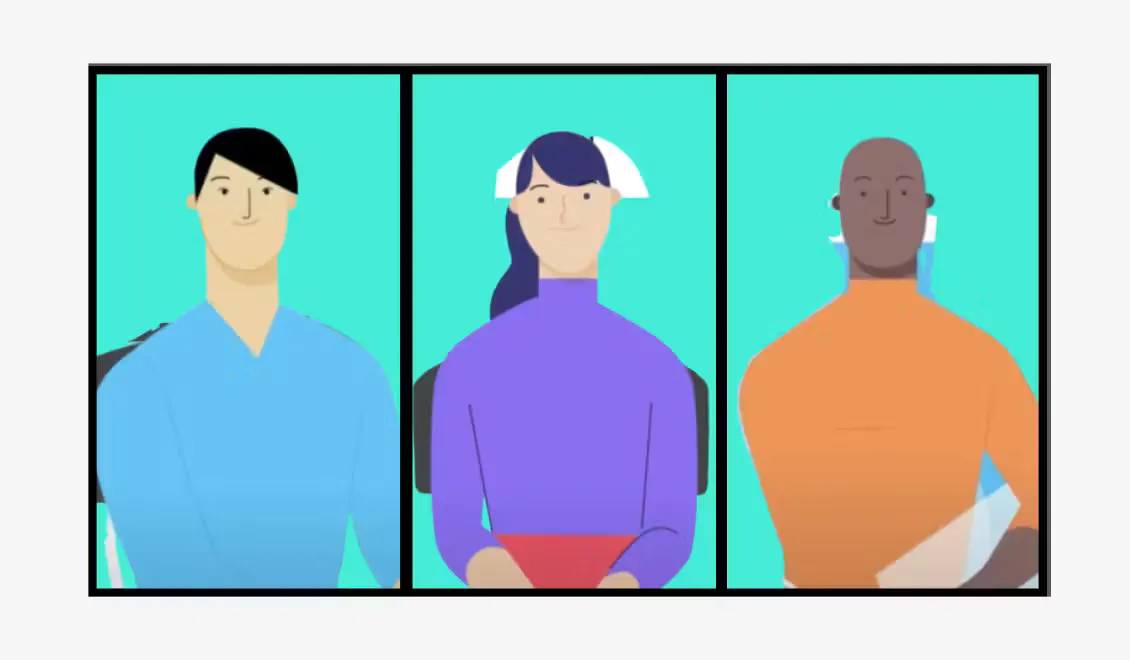

33-33-33 Layout

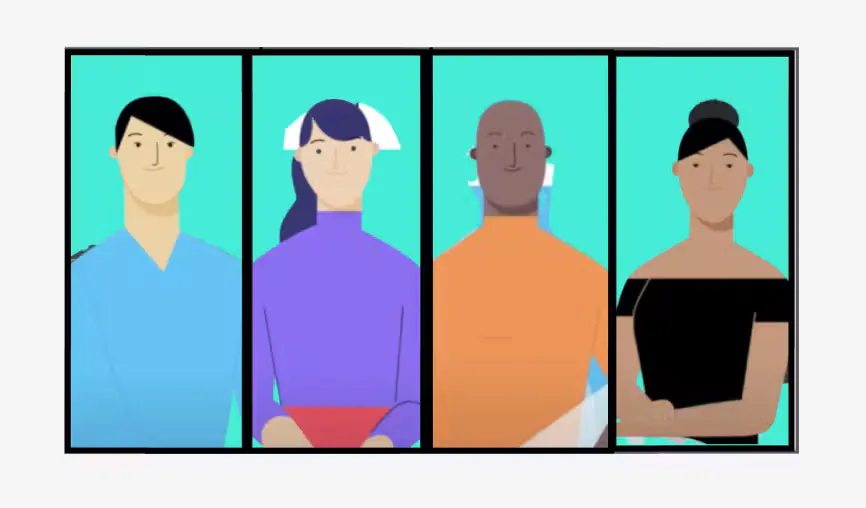

25-25-25-25 Layout
Prerequisites
Compatible Platforms
Presenter View works with the platforms listed below. Right Sight 3 Presenter View framing occurs on the device and does not depend on the connected computer. Configuration of the feature is possible on CollabOS devices or PCs that run supported versions of the Sync App.
Service Providers
Zoom Rooms on Android (aka Presenter Focus)
Zoom Rooms on Windows (aka Presenter Focus)
Teams on Android
Teams on Windows
BYOD Service Provider
BYOD while in Zoom Rooms on Android
NOTE: For all uncertified platforms, Presenter View must be configured and activated in Sync App or CollabOS settings. The service provider application does not provide native controls for this mode.
FAQ
How many presenters can be shown simultaneously while using Presenter View?
There is no limit to the number of presenters that can be shown as a group. When Sub-Tiling is enabled, Presenter View supports up to four displayed presenters. If a fifth presenter enters the zone, the grouped view will be used until four or fewer presenters are left.
What happens when no presenters are recognized in the Presenter View zone?
When no users are detected within the Presenter View zone, the camera will zoom out fully until a presenter is detected again.
Is there a minimum zone size for Presenter View?
The size for the Presenter View zone is between 25% and 100% of the camera’s full field of view.
Can I enable multiple Presenter View zones?
Presenter View supports one configured zone.
Can I set up rejection zones?
Configure the Presenter View zone to avoid displays showing remote participants whenever possible. No admin-defined exclusion zones are required for Presenter View.
