Connection Types

Setup of Logitech Extend depends how it is being used.

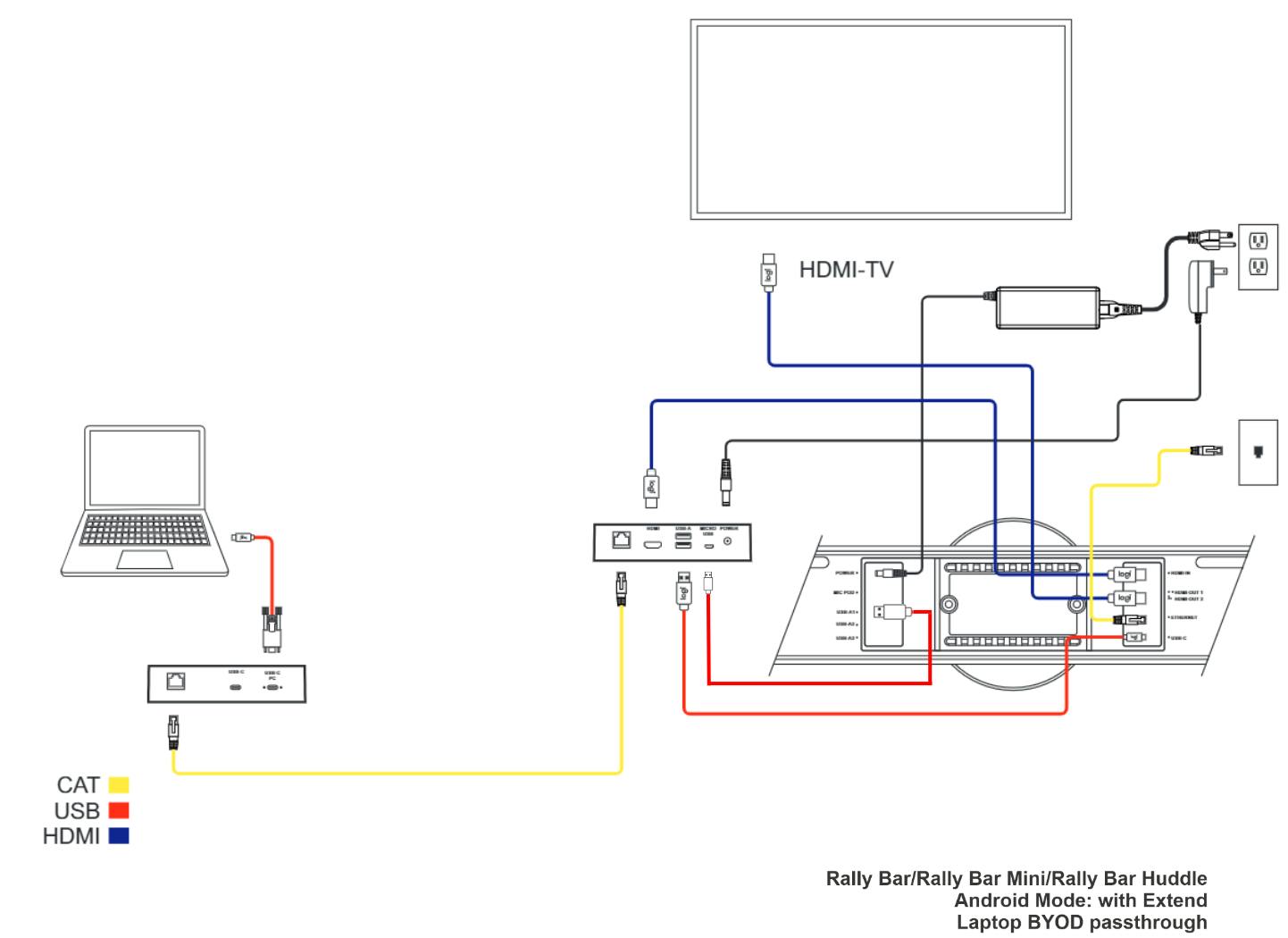

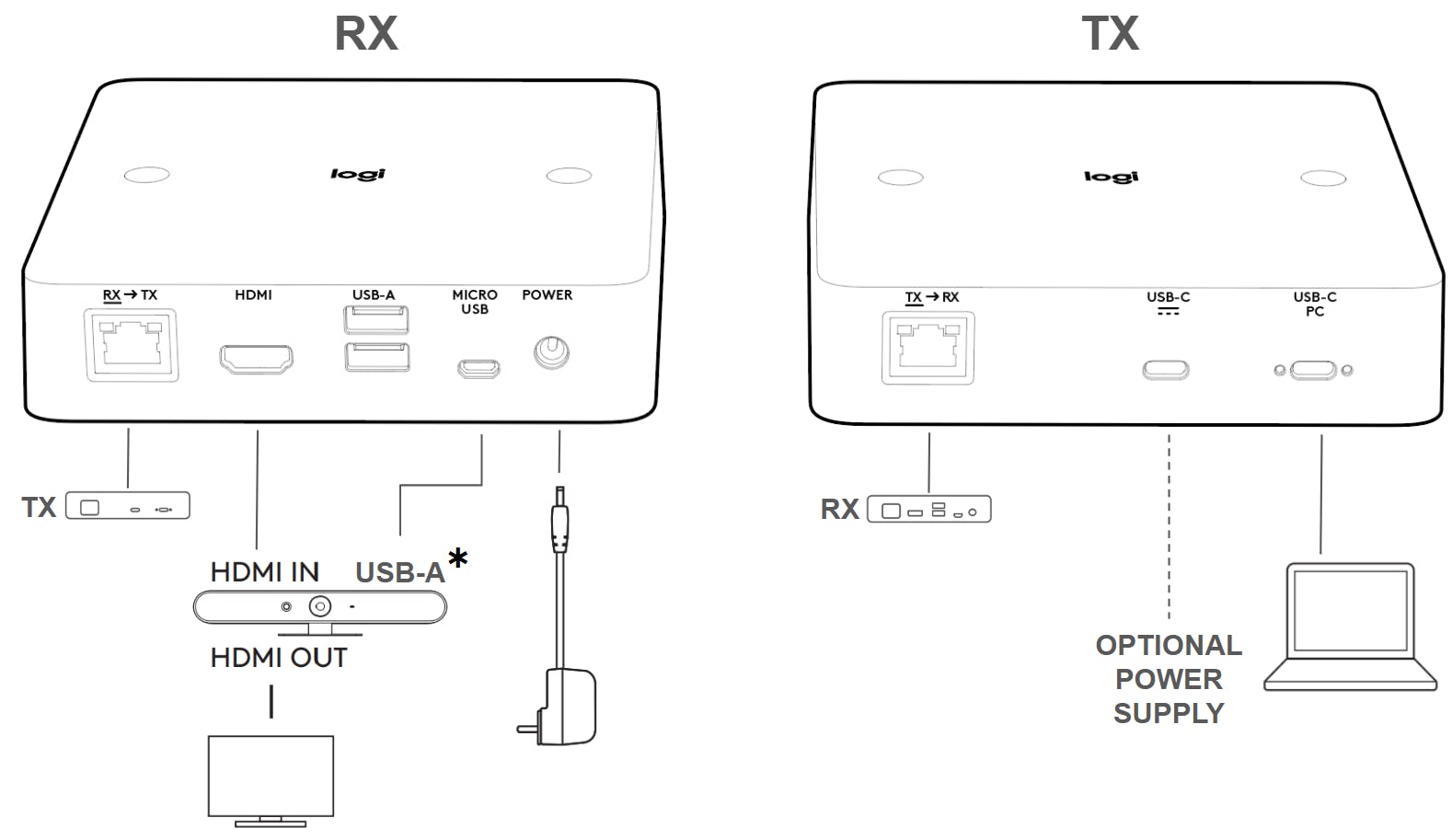

BYOD Passthrough (Wiring Guide)

A room installation where the video bar normally runs Microsoft Teams Rooms on Android (MTRoA), Zoom Room Appliance, or Google Meet for Android.

• In this configuration, Extend firmware updates are included within CollabOS updates to the associated/connected camera bar.

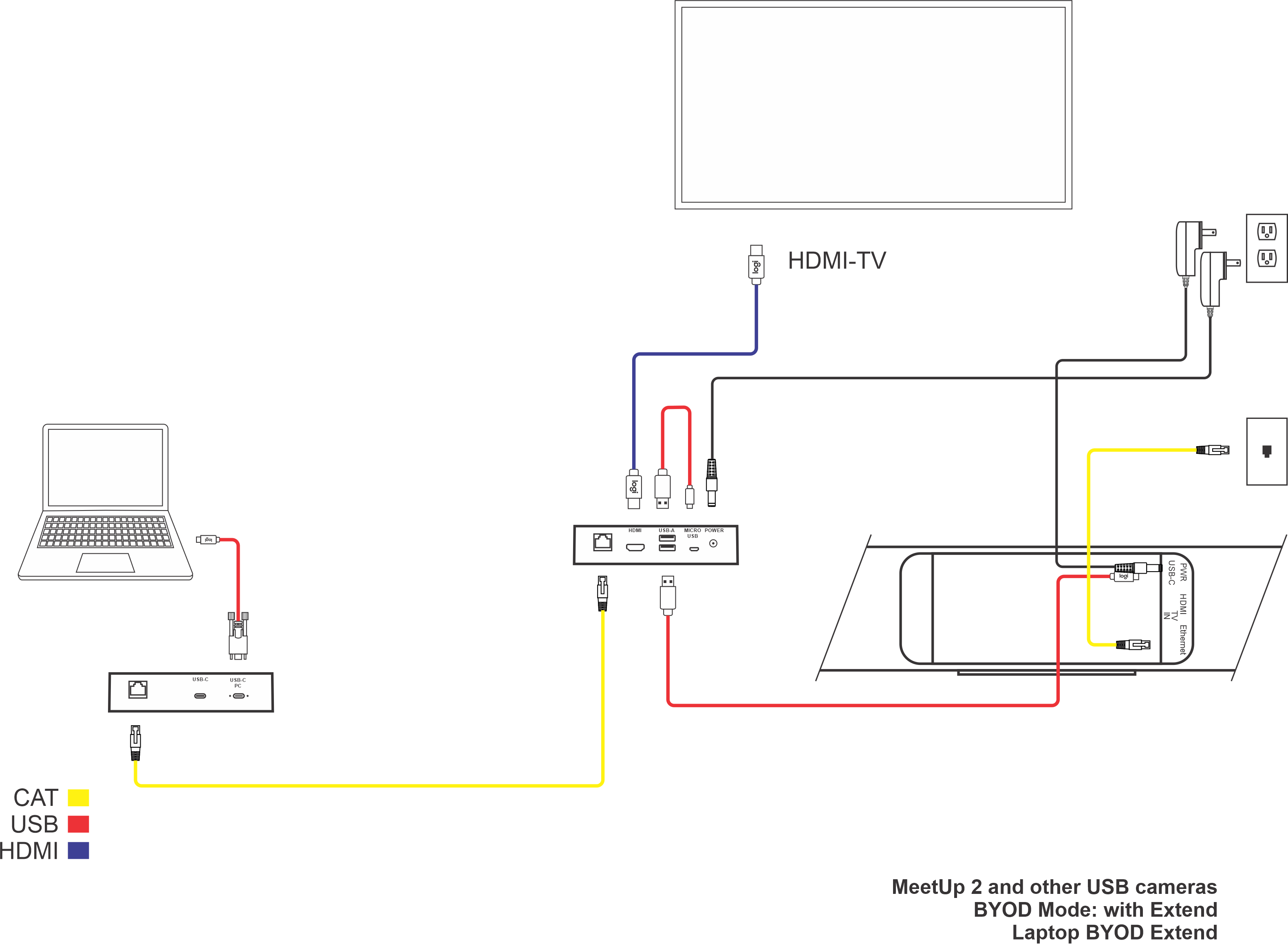

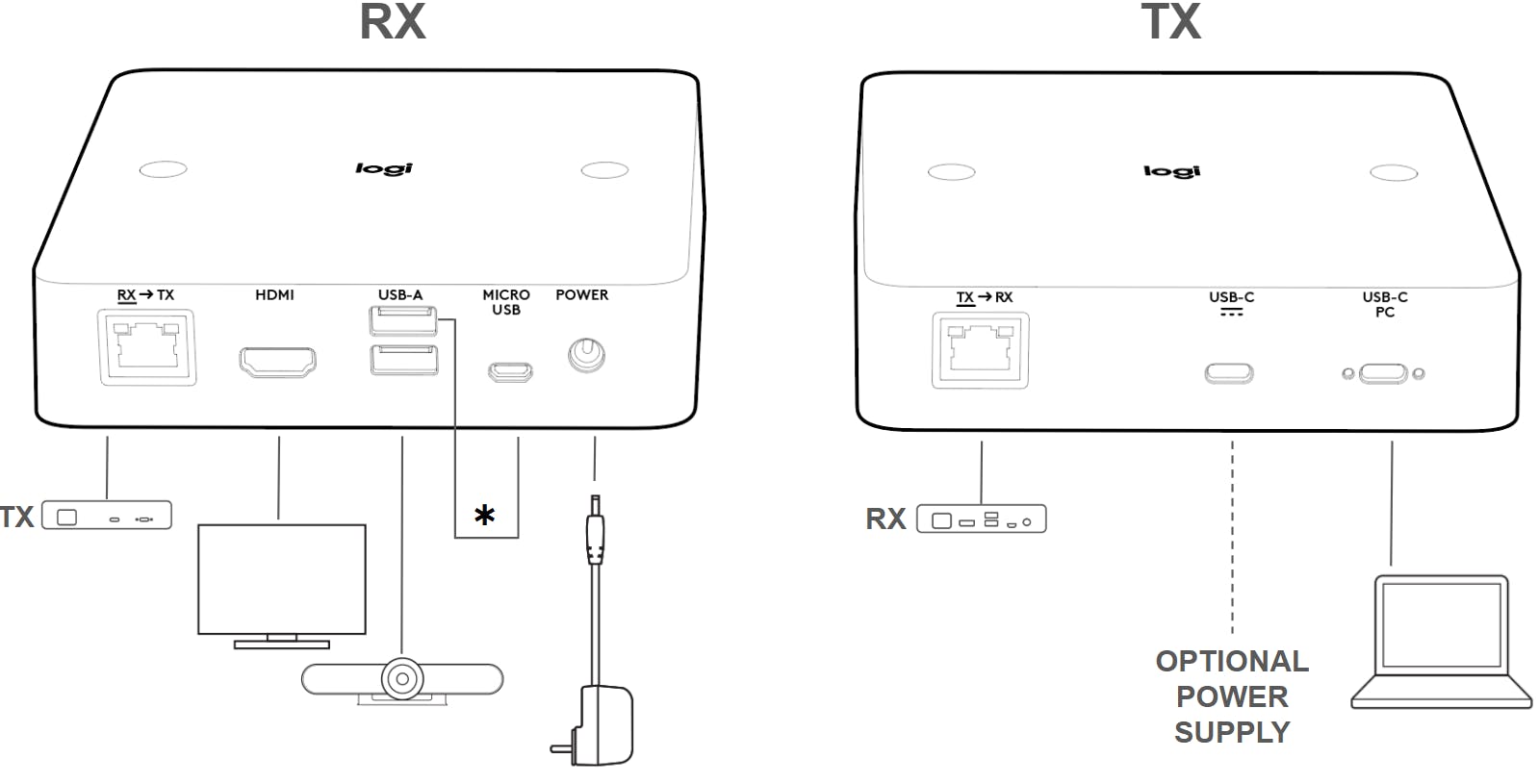

BYOD Extend (Wiring Guide)

Meetings in this installation type are run from an end user’s laptop or mobile device and leverage a camera/display/speakers/microphone in the room.

• In this configuration, Extend firmware updates are applied via Sync on connected laptop using the purple USB-C connection.
