Specifications - Logi Dock Focus Room Kit
Logi Dock Focus Room Kit is a one-cable, plug-and-play video conferencing solution for phone booths and focus rooms.

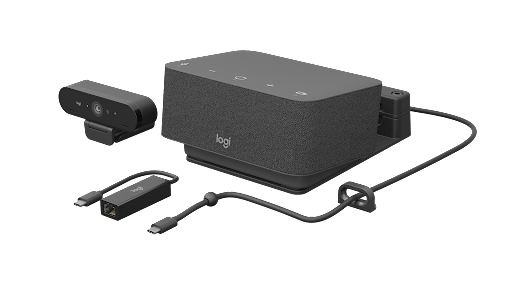

The kit includes:
Logi Dock, an all-in-one docking station with meeting controls and speakerphone
BRIO, a premium 4k webcam with HDR
Cable management accessories for a clean installation and secure cables
Product Specifications
Dimensions
Logi Dock with mounting bracket
Height: 3.46 in (88 mm)
Width: 6.30 in (160 mm)
Depth: 8.15 in (207 mm)
Cable length: 4.9 ft (1 m)
Weight: 38.62 oz (1.095 kg)
BRIO webcam
Height: 1.06 in (27 mm)
Width: 4.01 in (102 mm)
Depth: 1.06 in (27 mm)
Cable length: 7.2 ft (2.2 m)
Weight: 2.22 oz (63 g)
USB-C cable tidy kit
Height: 0.71 in (18 mm)
Width: 0.43 in (31 mm)
Depth: 0.28 in (7 mm)
USB-C-to-Ethernet adapter
Height: 0.59 in (15 mm)
Width: 0.79 in (20 mm)
Depth: 5.91 in (150 mm)
System Requirements
Operating systems:
Works with Windows 10 or later, macOS 11 or later, or Chrome-based computer via USB-C with Alt Mode, and iOS or Android Bluetooth enabled devices
Software downloads:
Download Logi Tune desktop app for convenient calendar integration, one-touch-to-join meeting experience and customization
Certifications:
Products included in the kit are certified for Microsoft Teams, Zoom, Google Meet, and Google Voice.
Technical Specifications
Logi Dock
Speaker:
Frequency response: 60Hz-20kHz
Driver size: 55 mm
Microphones:
Beamforming mic array with six mics
Frequency response: 65Hz-8kHz
Docking Station:
Docking interface: USB-C with DisplayPort or Alt Mode
Power to system: Up to 100 Watt charging
Monitor ports:
1 x HDMI v. 2.0 (Support up to 4K, i.e. 3840 x 2160 @60Hz HDR)
1 x DisplayPort 1.4 (Support up to 4K, i.e. 3840 x 2160 @60Hz HDR)
Peripheral ports:
2 x USB-A
- 1 x USB3.1 (5Gbps) with 4.5W charging
- 1 x USB3.1 (5Gbps) with 7.5W fast charging^1
3 x USB-C
- 2 x USB3.1 (5 Gbps) with 4.5W charging
- 1 x USB3.1 (5 Gbps) with 7.5W fast charging^1
1 x USB-C Upstream
Others:
1 x Bluetooth Sync button
1 x AC power (230W, 19.5V)
Security slot type: Kensington security slot
^1 Port marked with lightning icon
BRIO webcam
Resolutions: 4K Ultra HD @30 fps, 1080p @30 or 60 fps, 720p @30, 60, or 90 fps
Zoom: 5x digital zoom in Full HD
Field of View:
- Diagonal: 90°
- Horizontal: 82.1°
- Vertical: 52.2°
RightLight Technology: RightLight 3 with HDR for clear image in various lighting environments ranging from low light to direct sunlight
Autofocus
Warranty Information
2-Year Limited Hardware Warranty
1-Year or 3-Year Extended Warranty available for purchase
Package Contents
Logi Dock with mounting bracket Power supply AC power cord USB-C to USB-C cable USB-C cable tidy kit USB-C-to-Ethernet adapter Mounting hardware Brio webcam with universal mounting clip USB-A to USB-C cable Attachable privacy shutter User documentation.
