M650 for Business - Setup guide

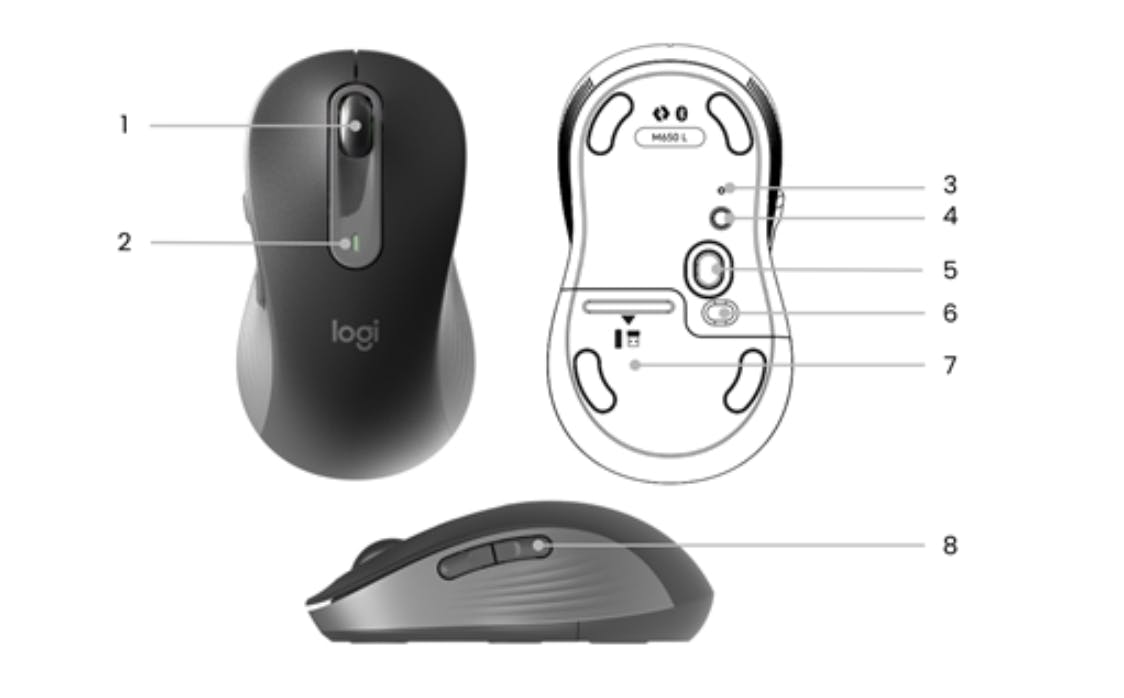

PRODUCT OVERVIEW

1. SmartWheel scroll wheel

2. Battery status LED

3. Connection Status LED

4. Connect button

5. 4000DPI sensor

6. On/Off toggle switch

7. Battery and receiver compartment

8. Back/Forward buttons

Our new Logitech SmartWheel on your mouse

The Signature M650 and M650L feature SmartWheel scrolling that delivers precision or speed the moment you need it. Seamlessly switch between these two scrolling styles with the flick of your finger.

• Line-by-line (ratchet) scroll — get line-by-line precision when you need to focus on the details. Scroll slowly, you will feel each step on the wheel. Ideal for reading or precise navigation of items and lists.

• Speed (inertia) scroll — scroll faster for less- friction spinning. It will let you scroll faster and with less effort through long documents and web pages.


Back/Forward buttons

The back and forward buttons enhance navigation and simplify task.

To move back and forward, press the back or forward button to navigate web or document pages, depending on the location of the mouse pointer.

Battery information:

• Requires 1 AA alkaline battery

• Expected battery life is up to 24 months

Check battery status

The LED on the top of the mouse indicates battery status.

Green LED: Battery level at 100% - 11%.
Red LED: Battery level at 10%.

Left-handed version:

Logitech M650L has a left-handed version (M650L Left). It has the same feature definition as the right-handed version with the only difference being that the side buttons are on the right side of the mouse for better accessibility with your left thumb.
