Rally Bar 2: Wall Mount [Below Display] Installation Instructions

Tools Required

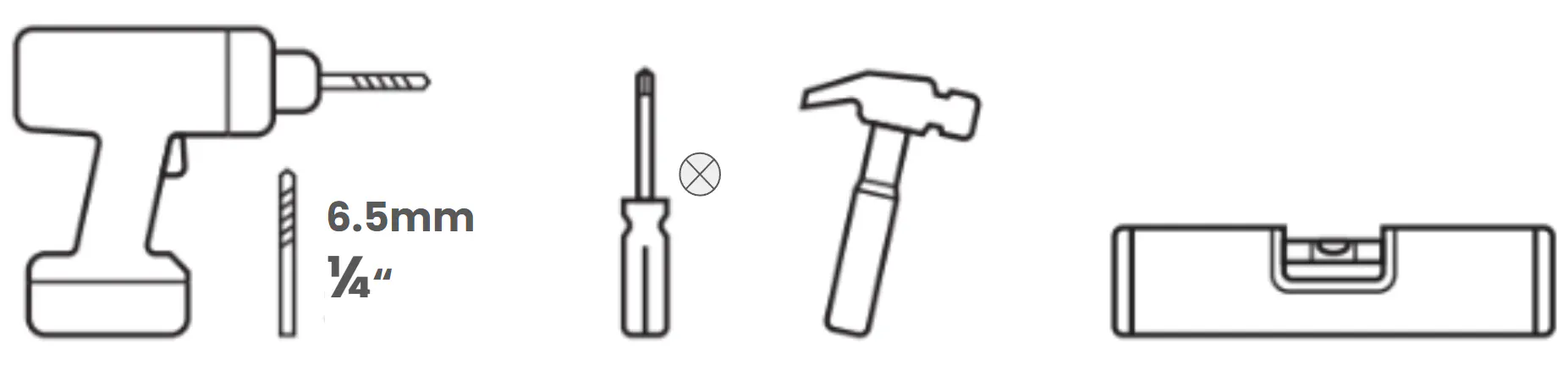

In addition to the parts included in the box, a drill, 6.5mm (1/4") drill bit, Phillips head/crosshead screwdriver, hammer, and spirit/bubble level are required.

NOTE: For your convenience, we've included anchors suitable for many office conditions. You are responsible for ensuring the mounting hardware is appropriate for the wall material in use.

Wall Mount Orientation

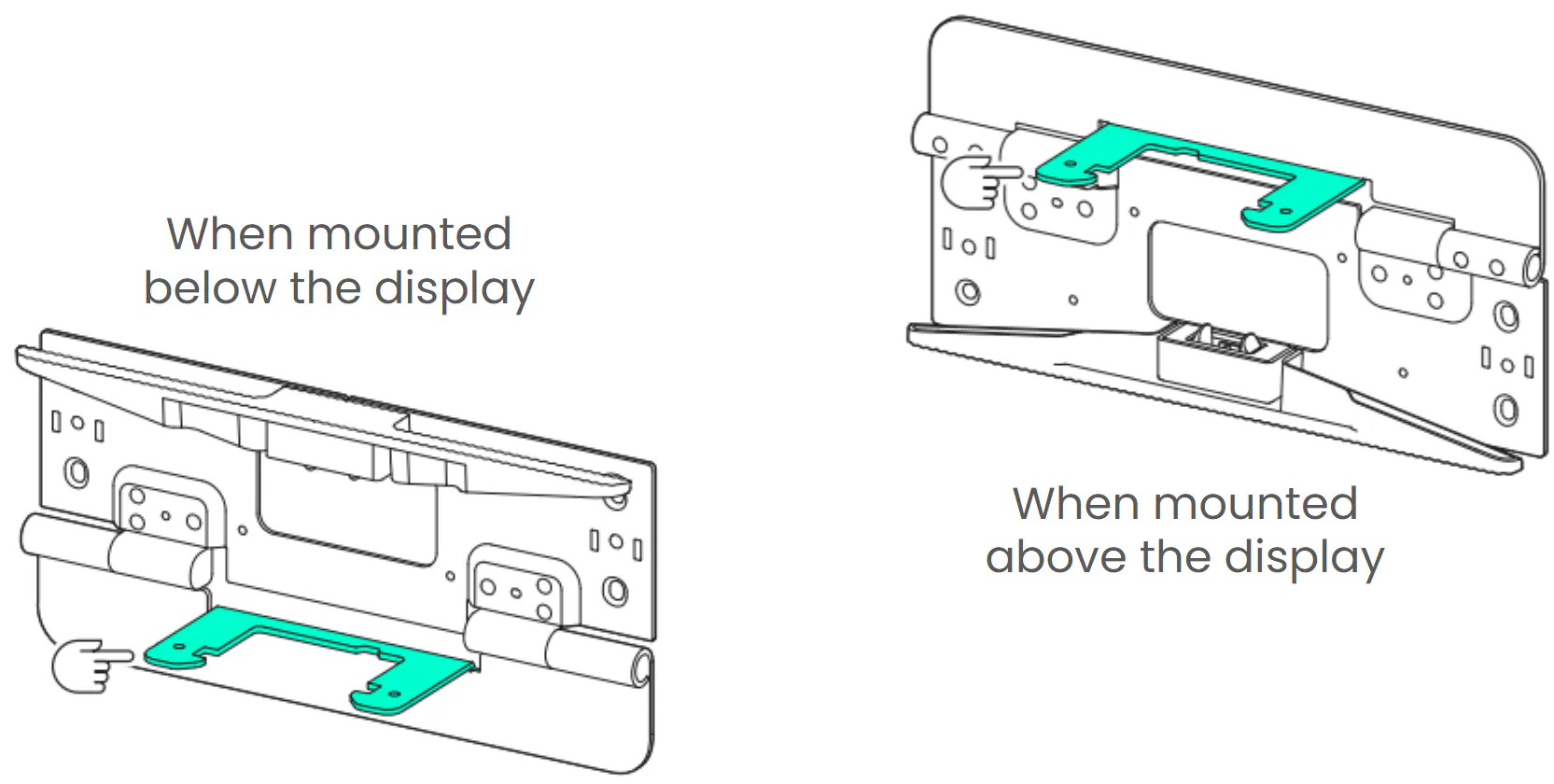

When Rally Bar 2 is mounted below the display, the mounting forks should be oriented toward the bottom (left image). To use the mount above the display, turn the mount 180° so the mounting forks are oriented toward the top (right image).

Measure and Mark

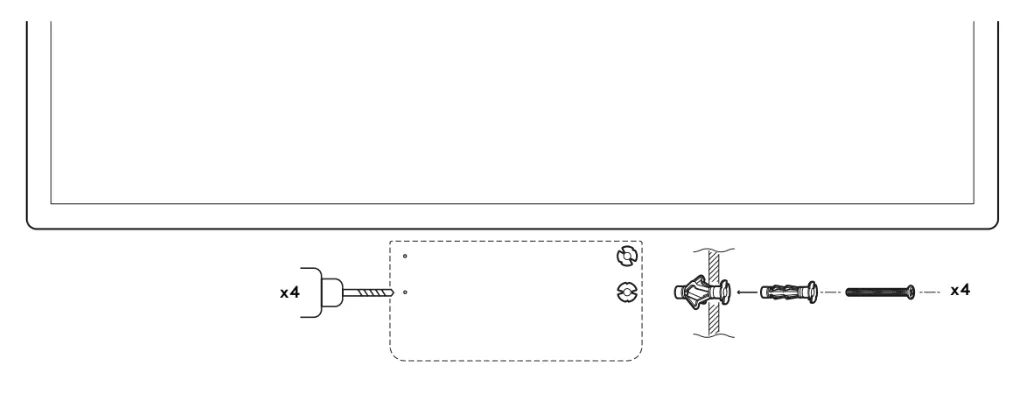

1. Locate and mark the center of your display.

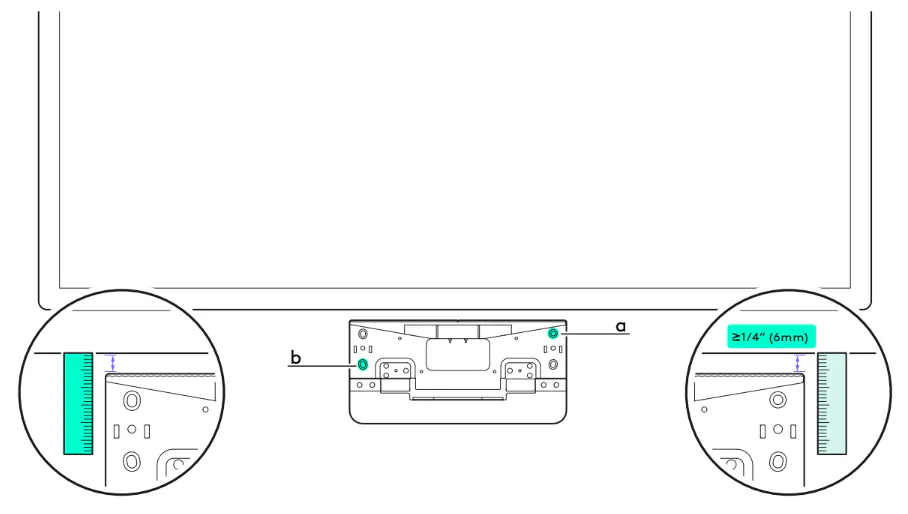

2. Locate the bottom edge of your display and mark ¼” (5-6mm) below this height.

3. Center the wall mount flat against the wall with the top edge located at your determined height from Step 2.

4. Mark the center of each mounting hole on the backplate (there are 4 in total).

Drill Holes and Affix Mount to Wall

5. Using a 6.5mm (1/4") drill bit, drill 4 holes, and secure wall anchors.

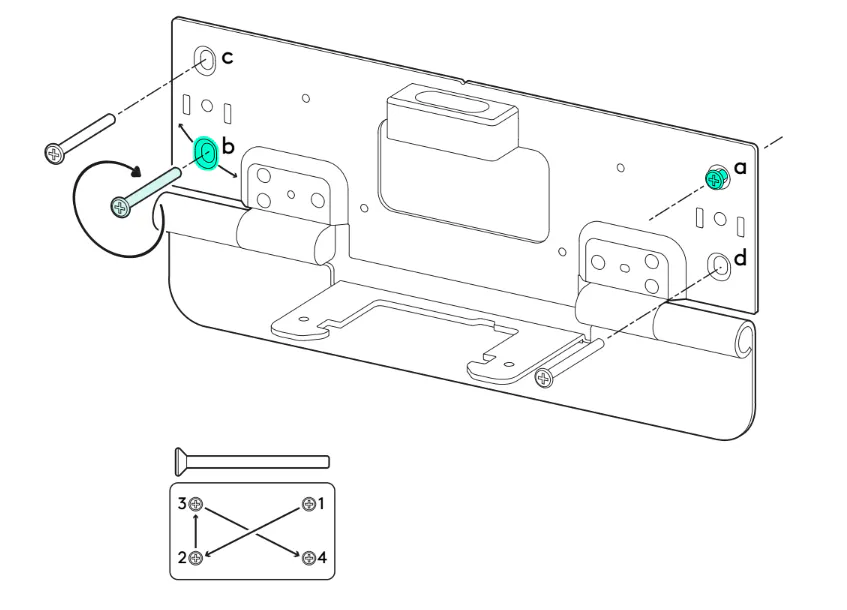

6. Place the mount against the wall and attach the screw a leaving it slightly loose. Insert screw b and tighten while checking the mount remains level. Insert and tighten all screws.

Attach Rally Bar 2 to the Wall Mount

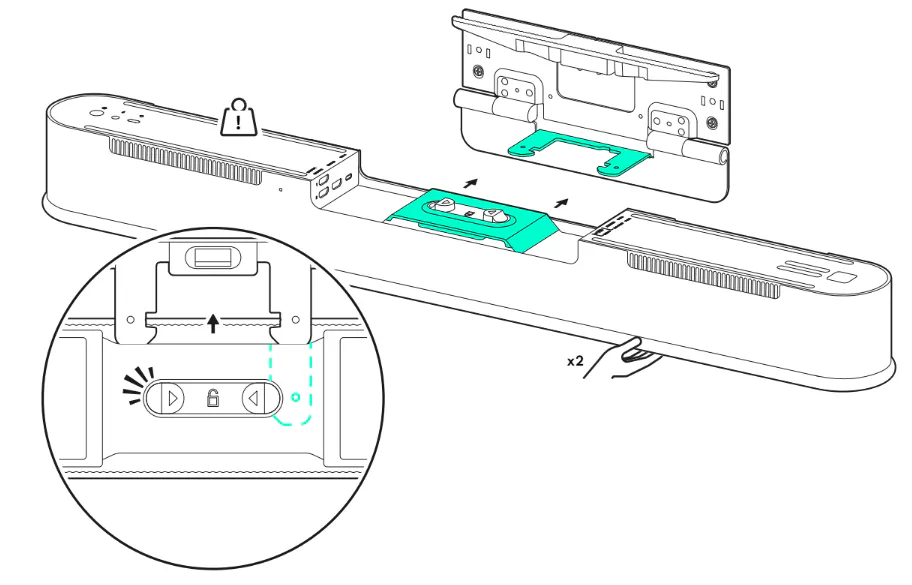

7. To attach Rally Bar 2, hold it facing down with both hands supporting. Slide the device onto the mounting forks until an audible “click” is heard.

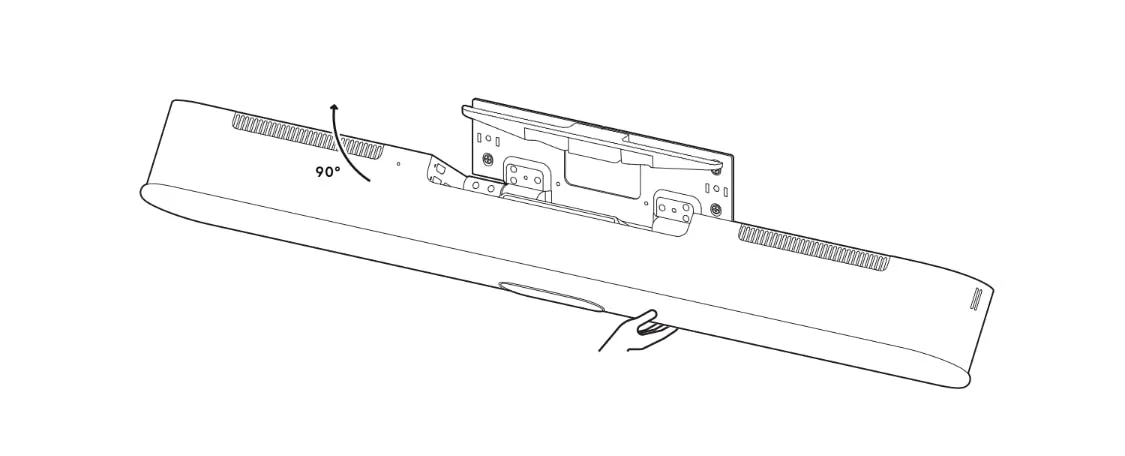

8. Rotate the product up 90˚ so that the camera is facing forward until an audible “click” is heard. Check the product's location and alignment relative to the display, and adjust the mounting screws to level as needed.

Install Cables

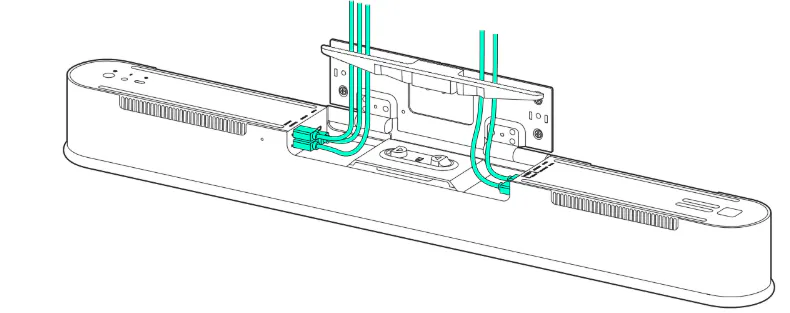

9. To install cables, rotate Rally Bar 2 downward 90˚. Insert cable connections as desired. Cables plugged on the left side of the should utilize the left side of the cable guide track and conversely for the right.

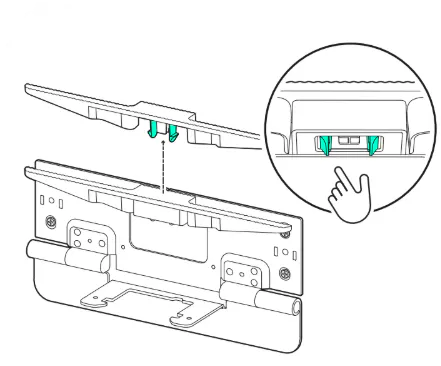

   If using larger cables or cables with ferrites, please remove the cable guide for increased capacity.

   ⚠️ NOTE: If securing cables (with zip ties, velcro, etc) behind the display, be sure to leave enough slack that the device can be rotated downward without placing strain on the cables.

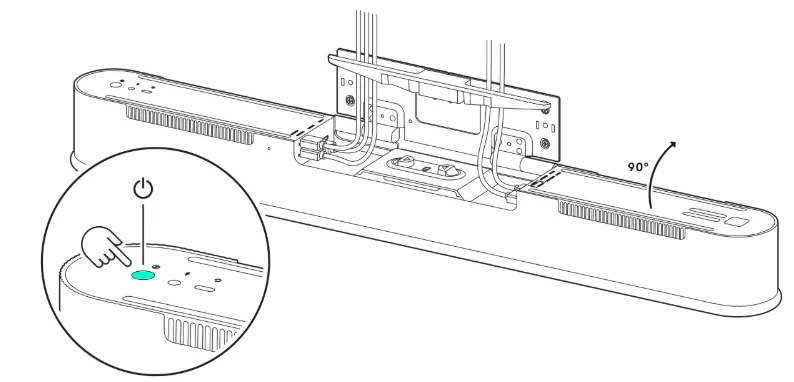

Power On Rally Bar 2

10. Power on the device. Rotate the product up slowly, managing cable slack in order to avoid pinching cables.

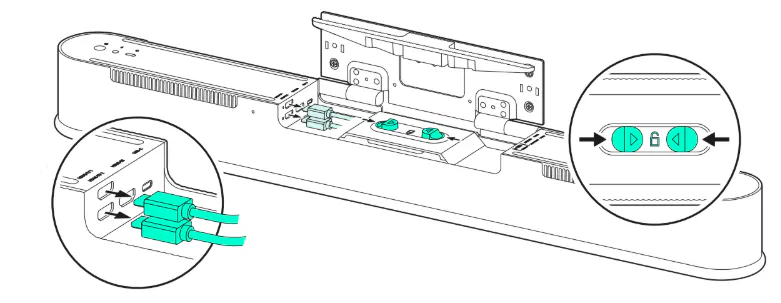

Remove Rally Bar 2 from Wall Mount

To remove Rally Bar 2 from the wall mount, rotate the product down 90˚ and unplug all cables. While supporting the device with one hand pinch the release features together and slide the product away from the wall.
