Rally Mic Pod 2 Setup

What’s in the Box?

• Rally Mic Pod 2

• Documentation

Note: 4 Mic Pod 2 support require CollabOS 2.2 or higher.

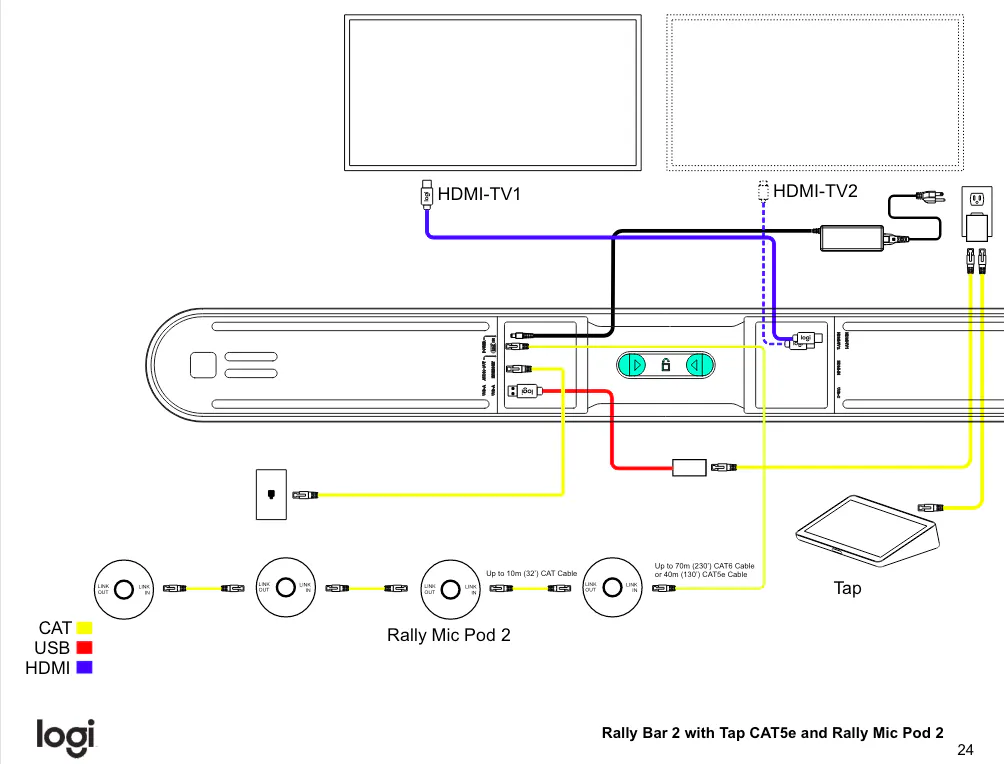

Wiring Diagram

Unboxing and Device Setup

• Ensure that you remove all parts from the packaging

• Setup following the complete printed instructions provided inside the Rally Mic Pod 2 box

• Connect Rally Mic Pod 2 using a CAT cable to the Aux port on the Rally Bar 2

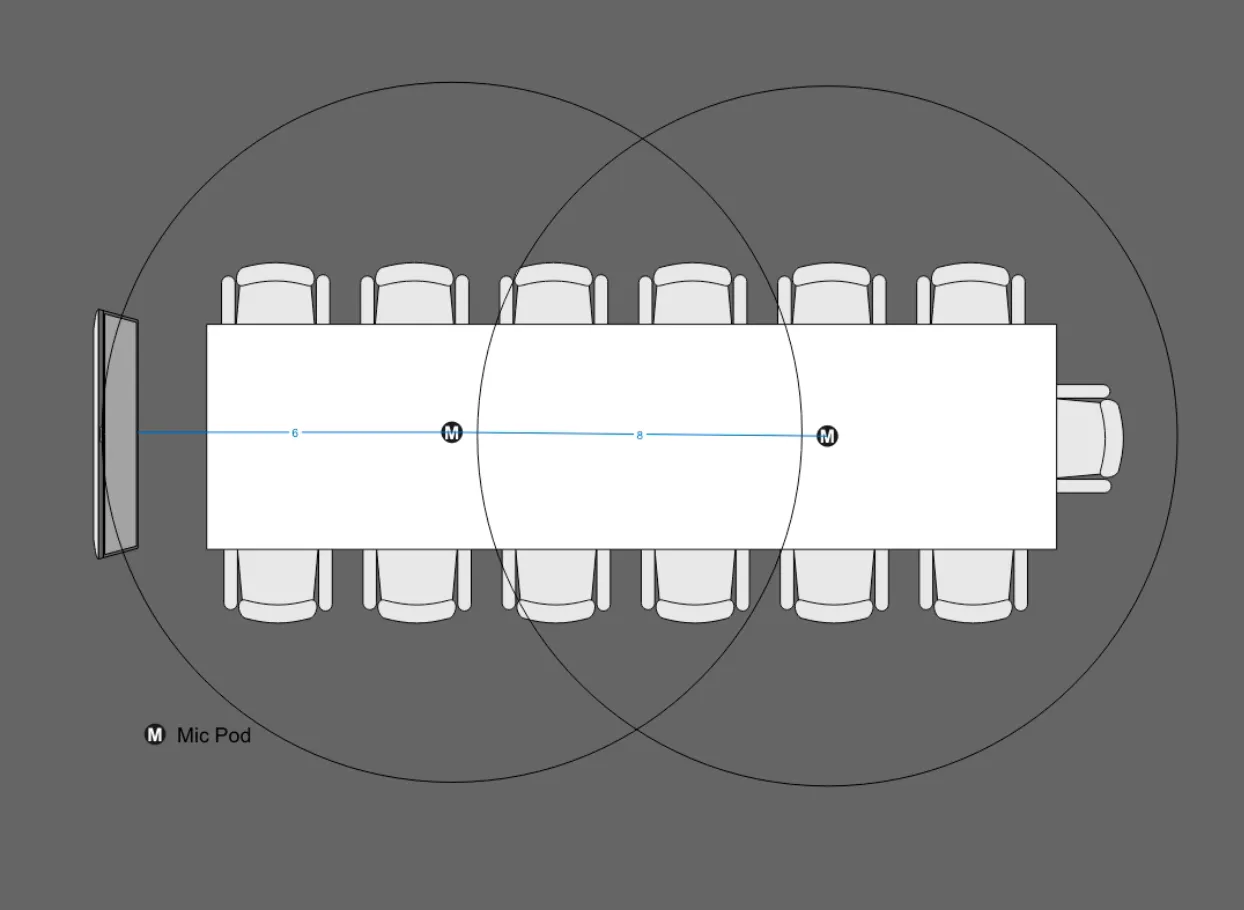

• Placement guide:

  • Single Rally Mic Pod 2 spaced ~ 6’ (1.8 M) From Rally Bar 2

  • Second Rally Mic Pod 2 spaced ~ 8’ (2.4 M) From 1st Rally Mic Pod 2

Category Cable Specs

• Cat5e: Cable length up to 40 m

• Cat6 SF/UTP: Cable length up to 70 m

• Maximum cable length between Rally Mic Pod 2 units: 10 m. (Extended length support is planned for a future release.)
