Rally Board 65 Setup - Accessories and Optional Setup

Rally Board 65 includes optional accessories that may be applied as needed. These include:

• Cable Hook (included) - for cable management

• VESA Accessory mount - for mounting a small form factor PC or accessory to the rear surface of Rally Board 65

• Stylus (with included tips)

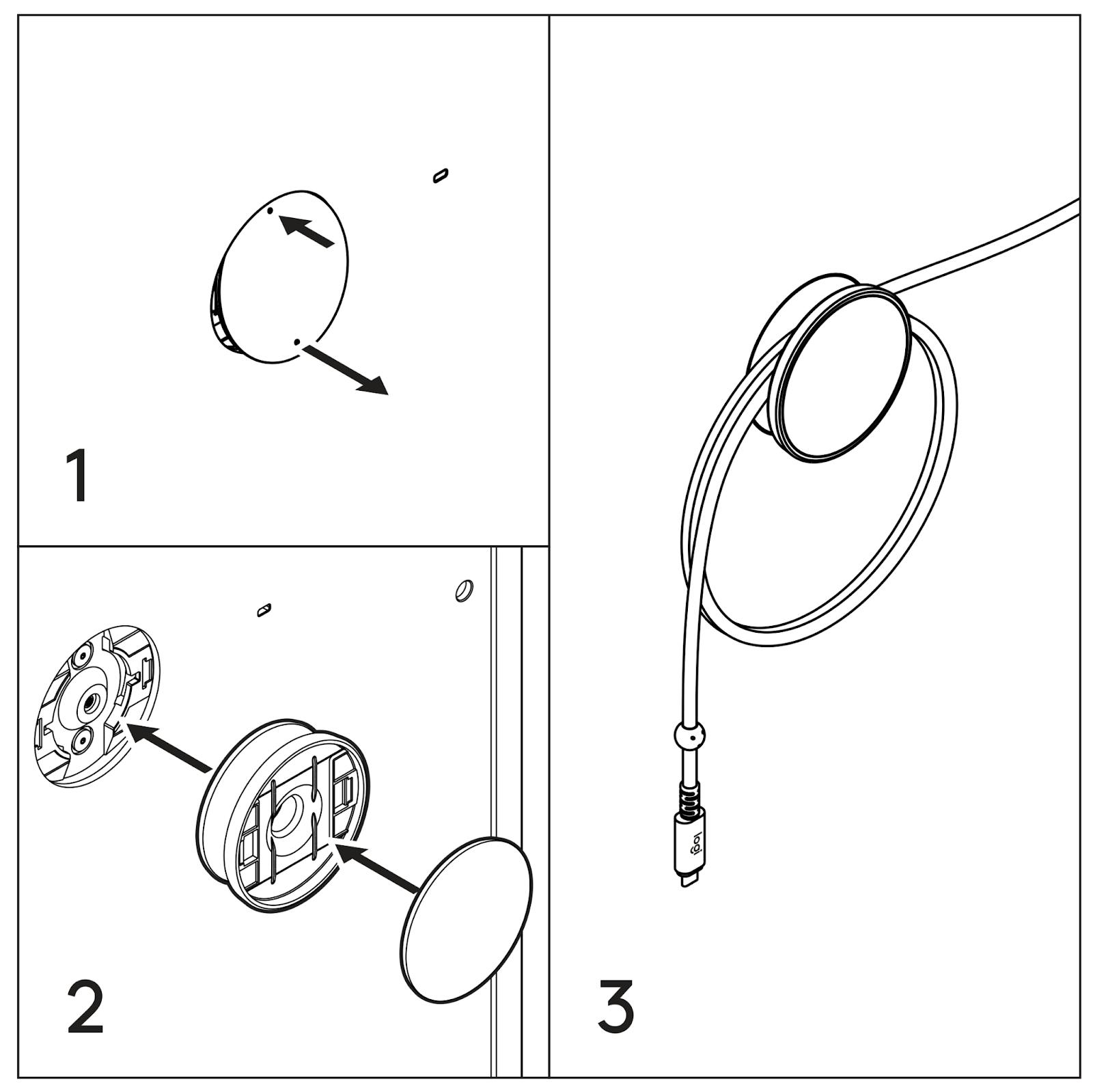

Cable Hook (included)

1. Remove an accessory cover from the right or left side of the rear surface of Rally Board 65

2. Attach the cable hook with one screw and a philips head screwdriver (not included)

3. Replace the accessory cover on the cable hook

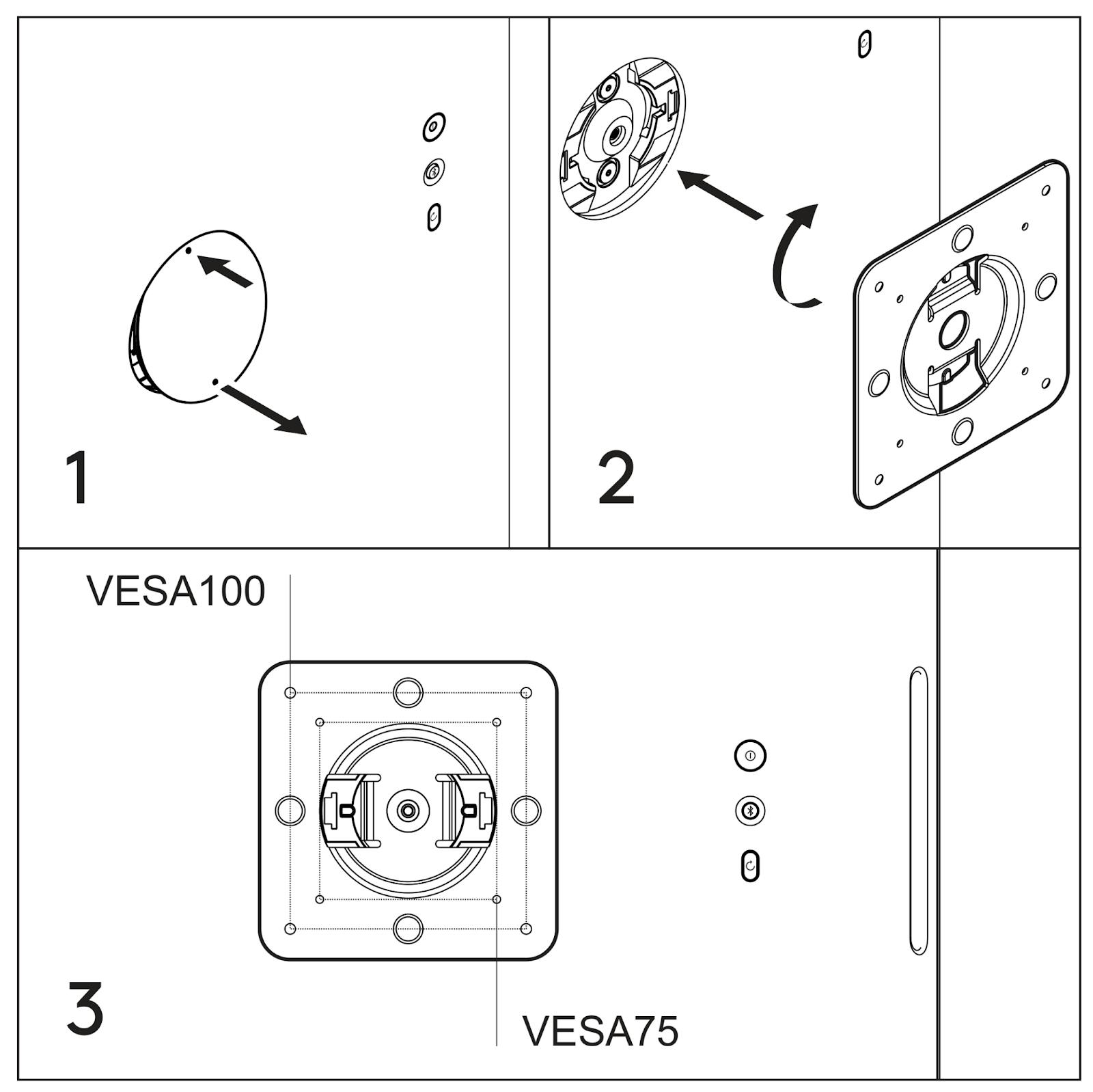

VESA Accessory Mount (included)

1. Remove an accessory cover from the right or left side of the rear surface of Rally Board 65

2. Attach a VESA 100 or 75 accessory or PC to the included mounting bracket. It is recommended that the accessory not exceed 2kg / 4.4lb in weight

3. Insert the mounting bracket to the bayonet interface and rotate 90 degrees clockwise

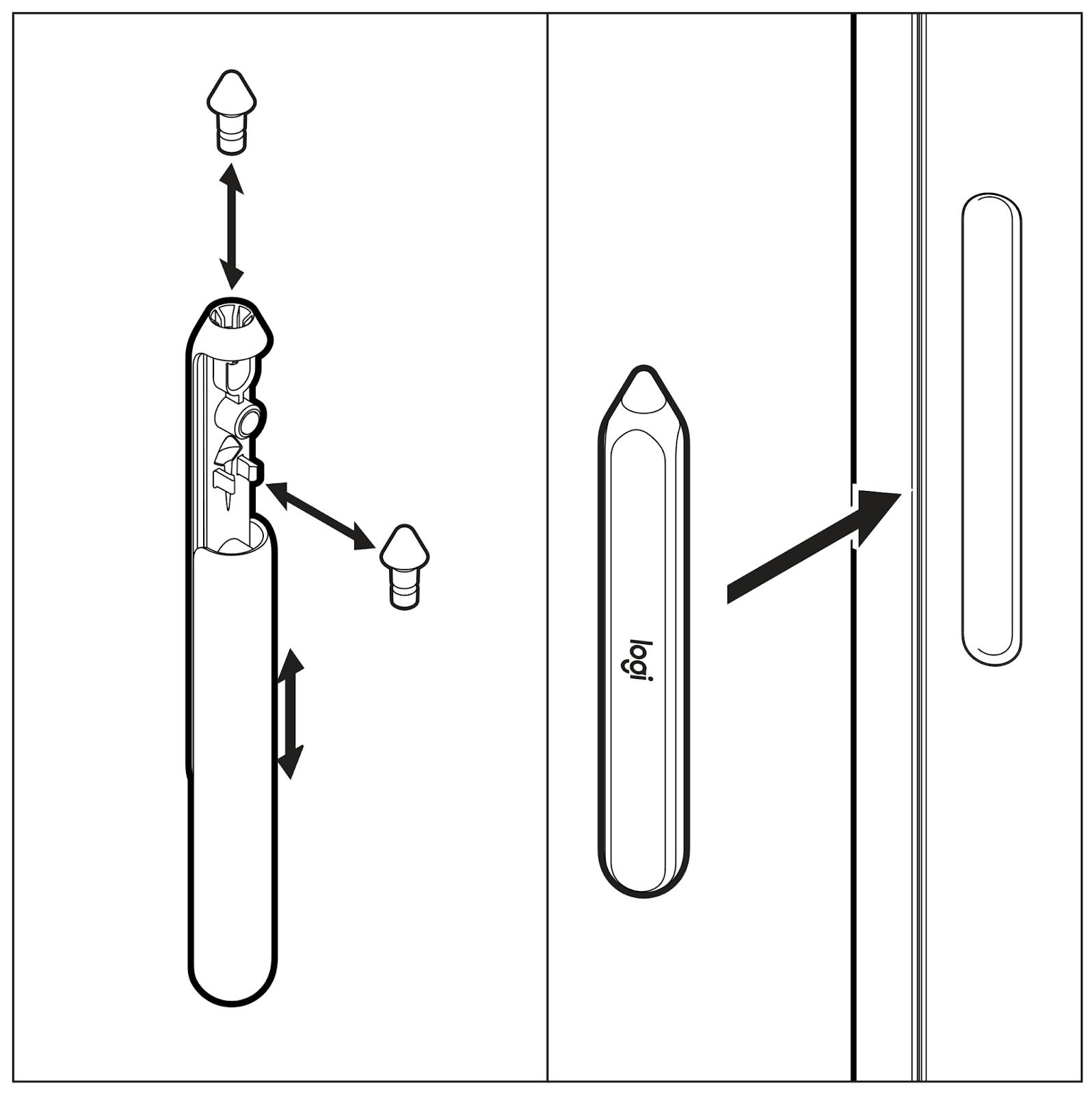

Stylus Placement and Spare Tip (included)

• The two stylus may be placed magnetically on each side of Rally Board 65

• Each stylus contains a spare tip stored inside the stylus as shown
