Enabling Scribe for Rally Bar Microsoft Teams Rooms on Android

The latest version of MTR on Android update supports any USB camera being configured as a content camera. All you need to do is connect a Scribe or any USB camera, to Rally Bar, Rally Bar Mini or Roommate. You may need a reboot once you connect the Scribe or camera. Or just power off the appliance before connecting anything, then power it on.

Note: You need a Pro license for content camera and for primary camera switching. If you have Basic, the screen where you choose your room camera and content camera is grayed will display PRO next to them.

 Setup

  1. Once you connect the Scribe and power on the appliance, click on More, then Settings.

  2. Select Device Settings.

  3. Select Admin Settings.

  4. Log in and select System.

  5. Select Teams Admin Settings.

  6. Select Devices

  • You will be presented with Room Camera and Content Camera. And if you have a Tap IP connected, Console pairing

  1. To set the content camera, select Content Camera.

  2. Open the source dropdown list and choose Logitech Scribe.

  3. Return to the Teams Room screen.

Step 1

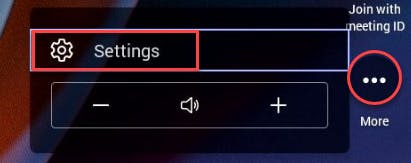

Once you connect the Scribe and power on the appliance, click on More, then Settings.

Step 2

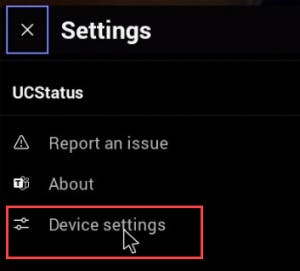

Select Device Settings

Step 3

Select Admin Settings

Step 4

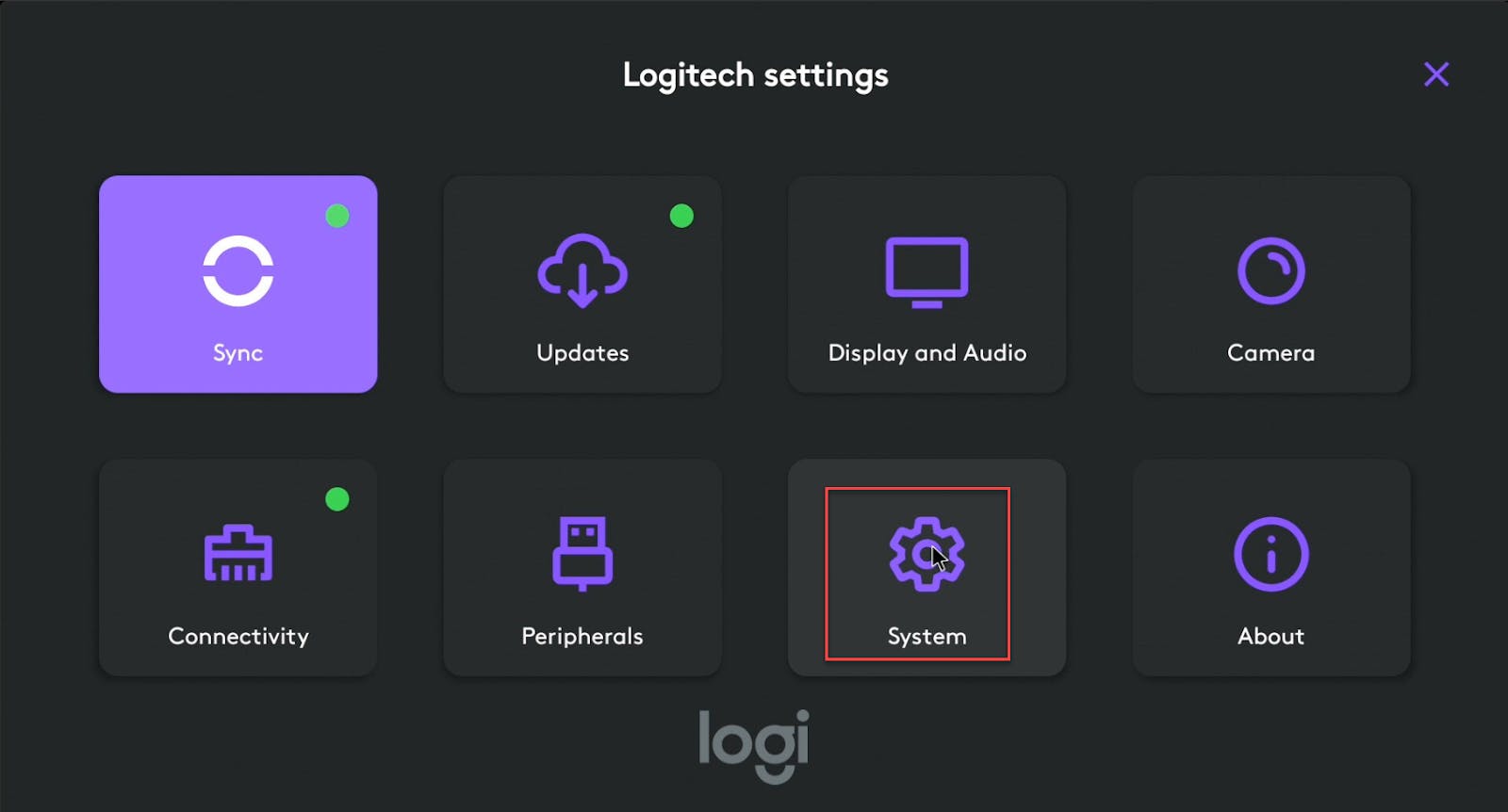

Log in and select System

Step 5

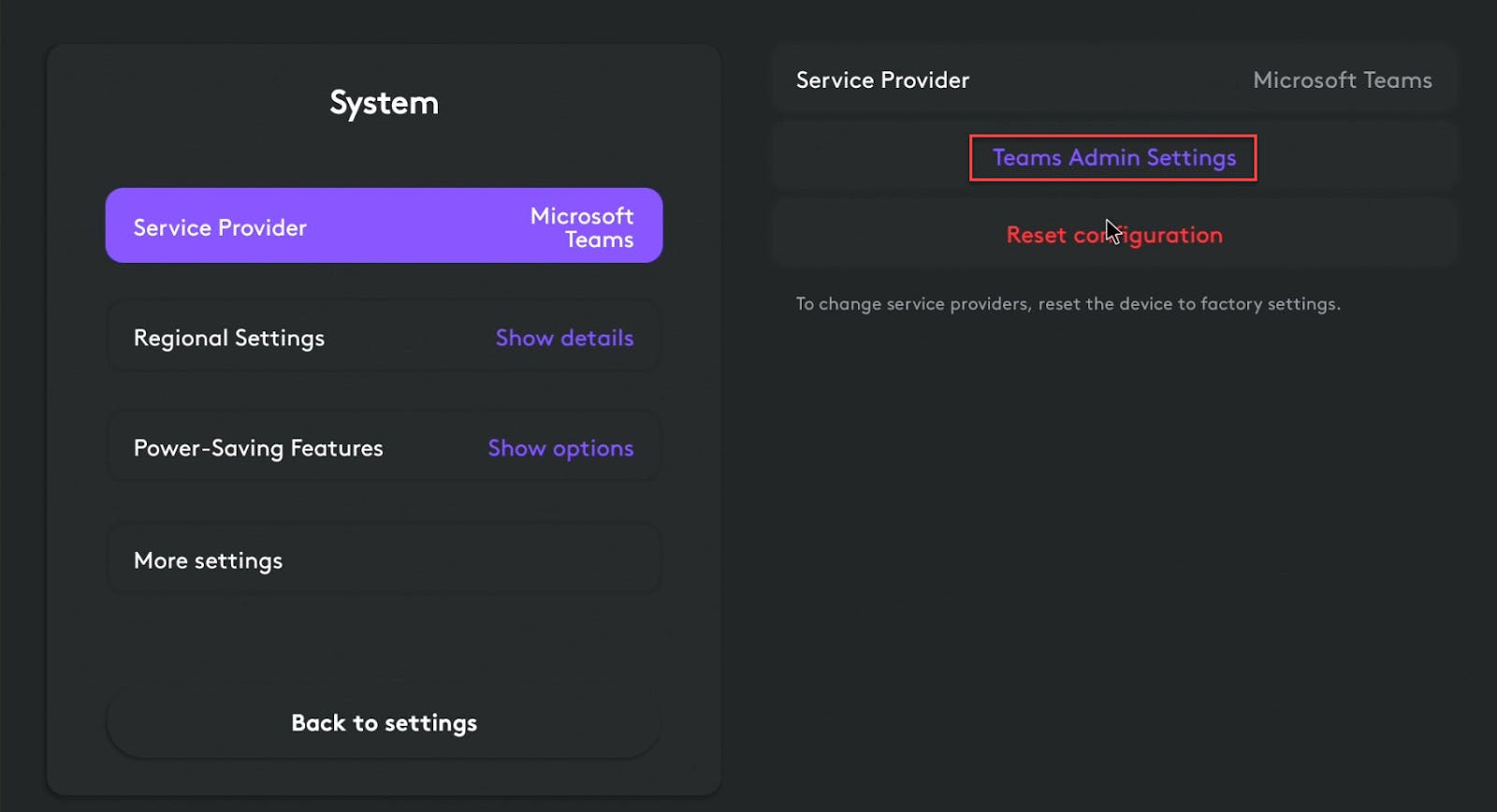

Select Teams Admin Settings

Step 6

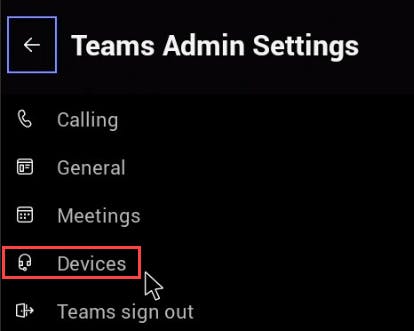

Select Devices

You will be presented with Room Camera and Content Camera. And if you have a Tap IP connected, Console pairing.

Any secondary camera can be used as a content camera or a room camera. If you set a secondary camera as a room camera you can't select it as the content camera because it is locked. Same for if you set a camera as the content camera, you can't later select it as the room camera if it is already selected as the content camera.

Step 7

To set the content camera, select Content Camera.

Step 8

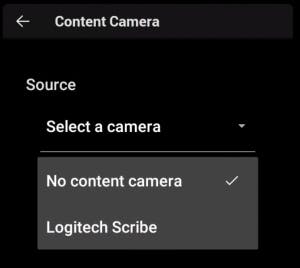

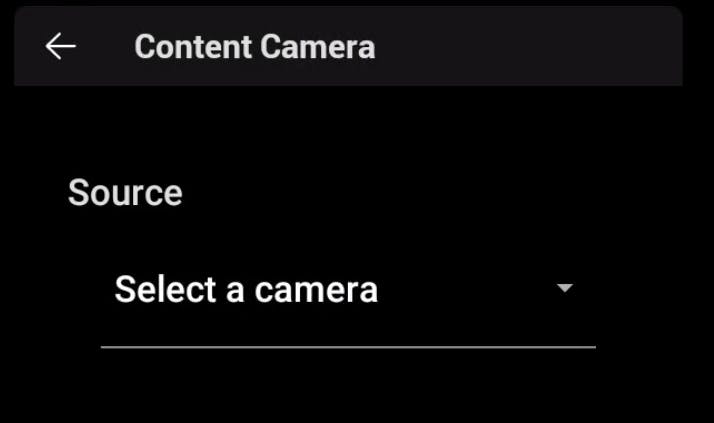

Open the Source drop down list.

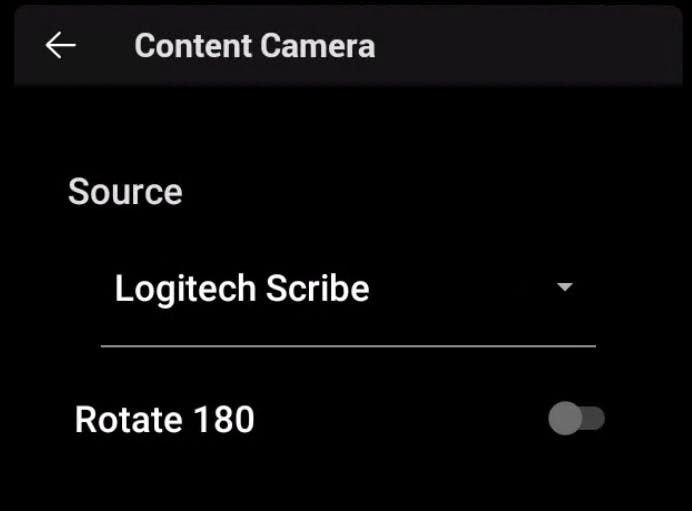

Choose Logitech Scribe. If you do choose a USB camera you have the option to invert the image if it is upside down. Not needed with Scribe.

Step 9

Return to the Teams Room screen.

Testing

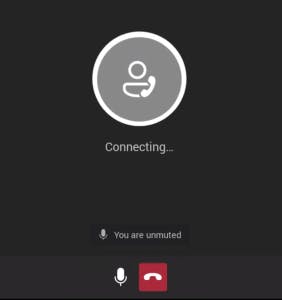

  1. Join a scheduled meeting or start a Meet Now.

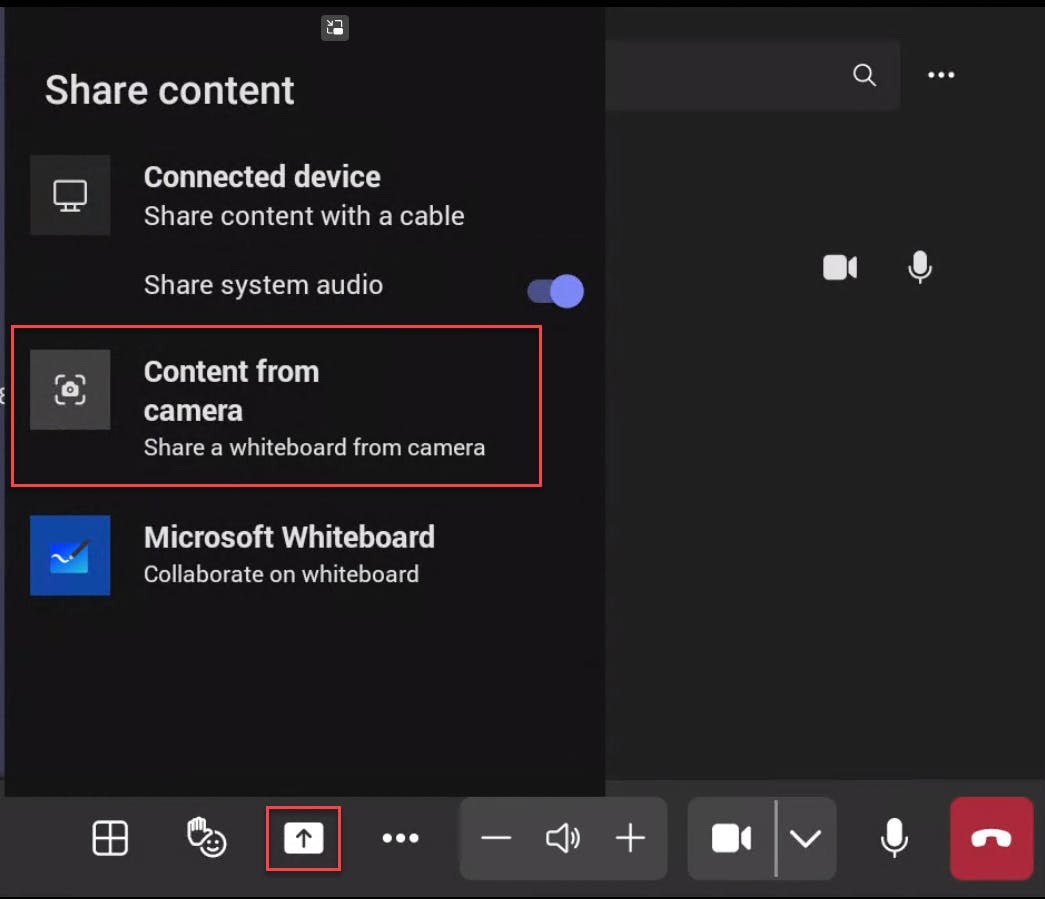

  1. Select the share tray icon, then select Content from camera.

  1. Or press the Purple button.

  • If you are using Scribe, it immediately shares what the Scribe has been configured to see.

  • If you are using a USB camera it will show whatever the USB camera sees.
