Sight Tripod Installation

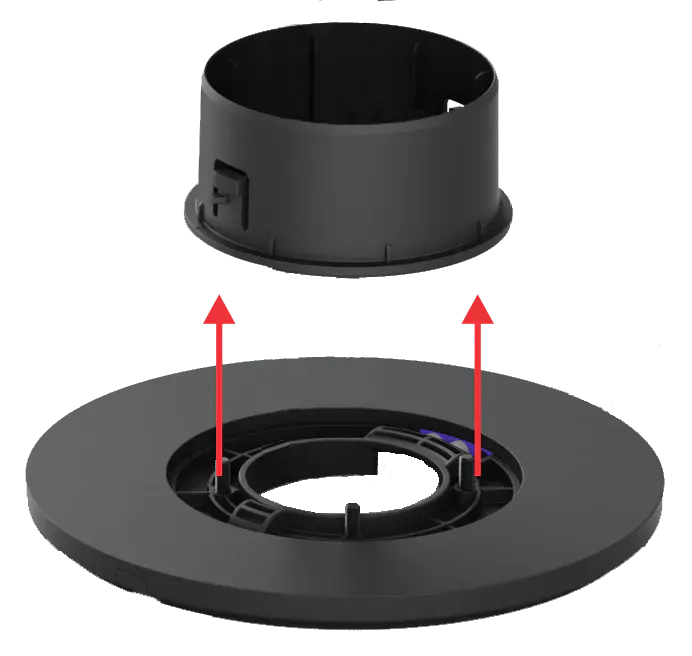

Separate the Mounting Cup from the Table Mount by removing the four screws.

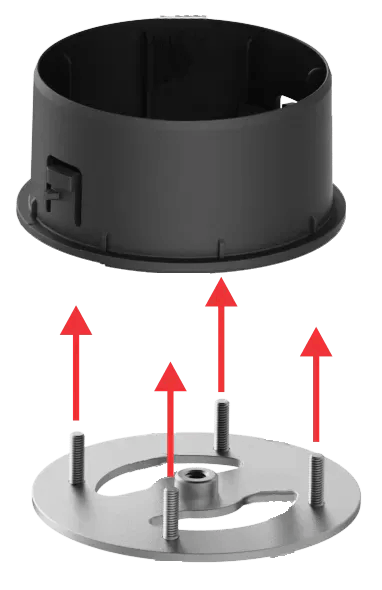

Attach the Tripod Mount to the Mounting Cup using the four screws from Step 1.
Route the cables through the Tripod Mount/Mounting Cup.

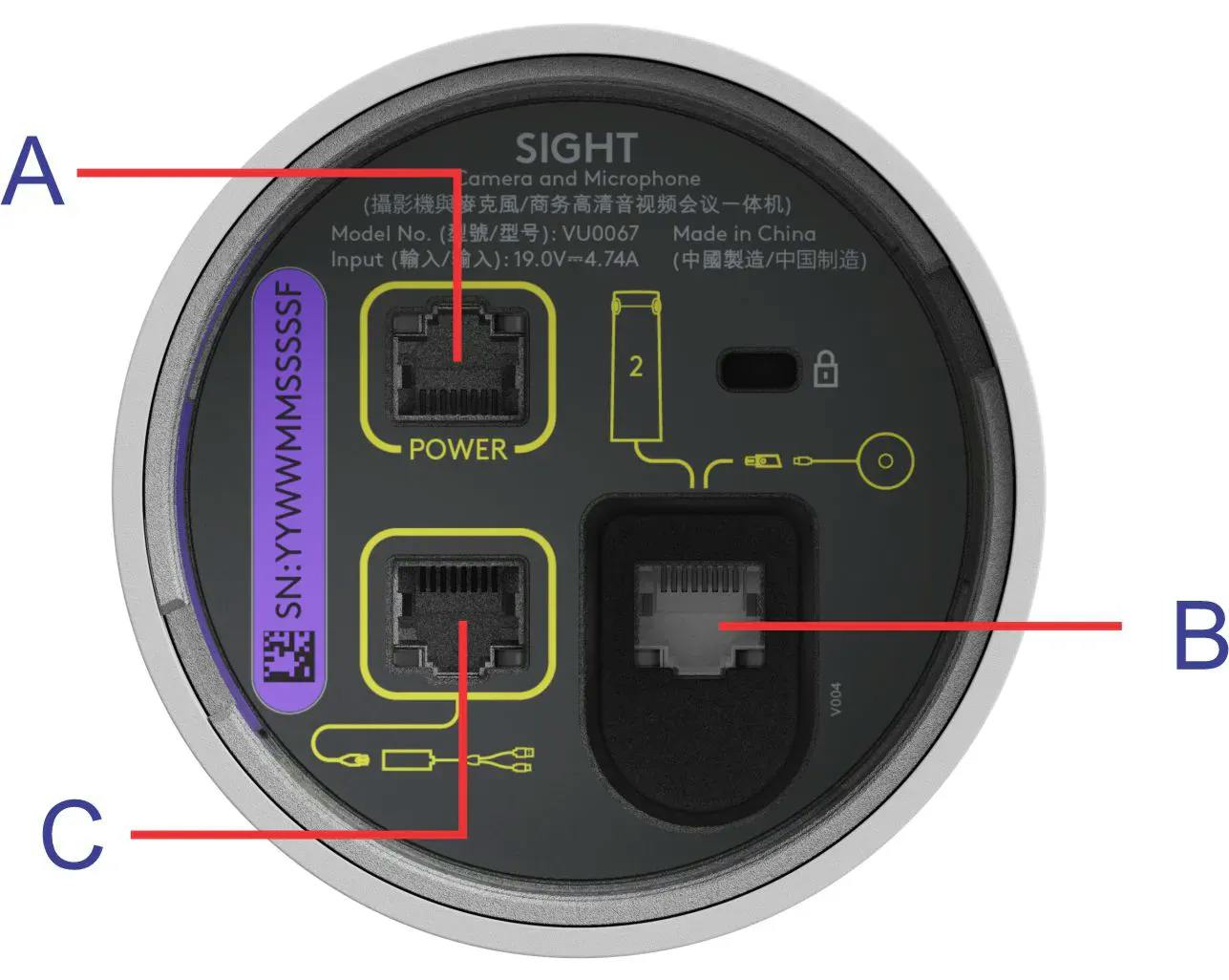

Connect the category cables to the appropriate RJ45 jacks on the bottom of Sight.
(A) Connects to 802.3at Type 2 PoE+ (30W)
(B) Optionally connects to a Mic Pod dongle (if used with Rally Mic Pods). In a dual Sight deployment, the 1st Sight device uses this port to connect to the 2nd Sight device.
(C) Connects to the Sight host dongle. In a dual Sight deployment, the 2nd Sight device uses this port to connect to the 1st Sight device.
Insert the Mounting Cup into the base of Sight and turn clockwise until the Mounting Cup clicks in place.
Attach a ¼” - 20 threads per inch screw into the Tripod Mount.
Orient Sight so that the Logi logo and lenses face away from the screen.
Connect the cable from the Sight (A) port to the 802.3at Type 2 PoE+ (30W) power supply (user supplied).
(Optional) connect the cable from the Sight (B) to a Mic Pod dongle, if this Sight is used with Rally Mic Pod or Rally Mic Pod Hub. In a dual Sight deployment, the 1st Sight device uses this port to connect to the 2nd Sight device.
Connect the cable from the Sight (C) port to the Sight host dongle. In a dual Sight deployment, the 2nd Sight device uses this port to connect to the 1st Sight device.
