How to use Swytch in a Bring-Your-Own-Device Conference Room

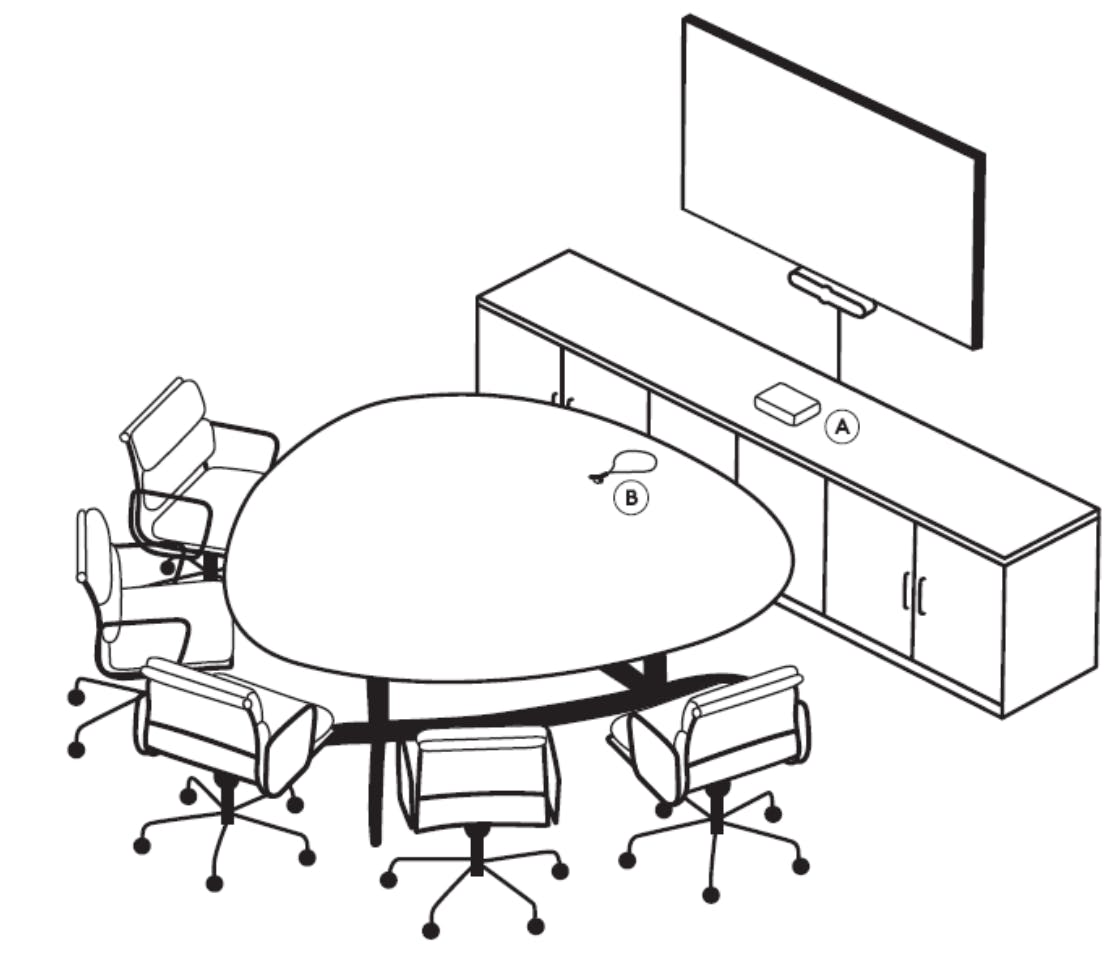

Recommended placement:

• Swytch Hub (A) collocated with the TV + PC + ConferenceCam at the front of the room

• Swytch Extender (B) at the table, typically mounted or placed underneath

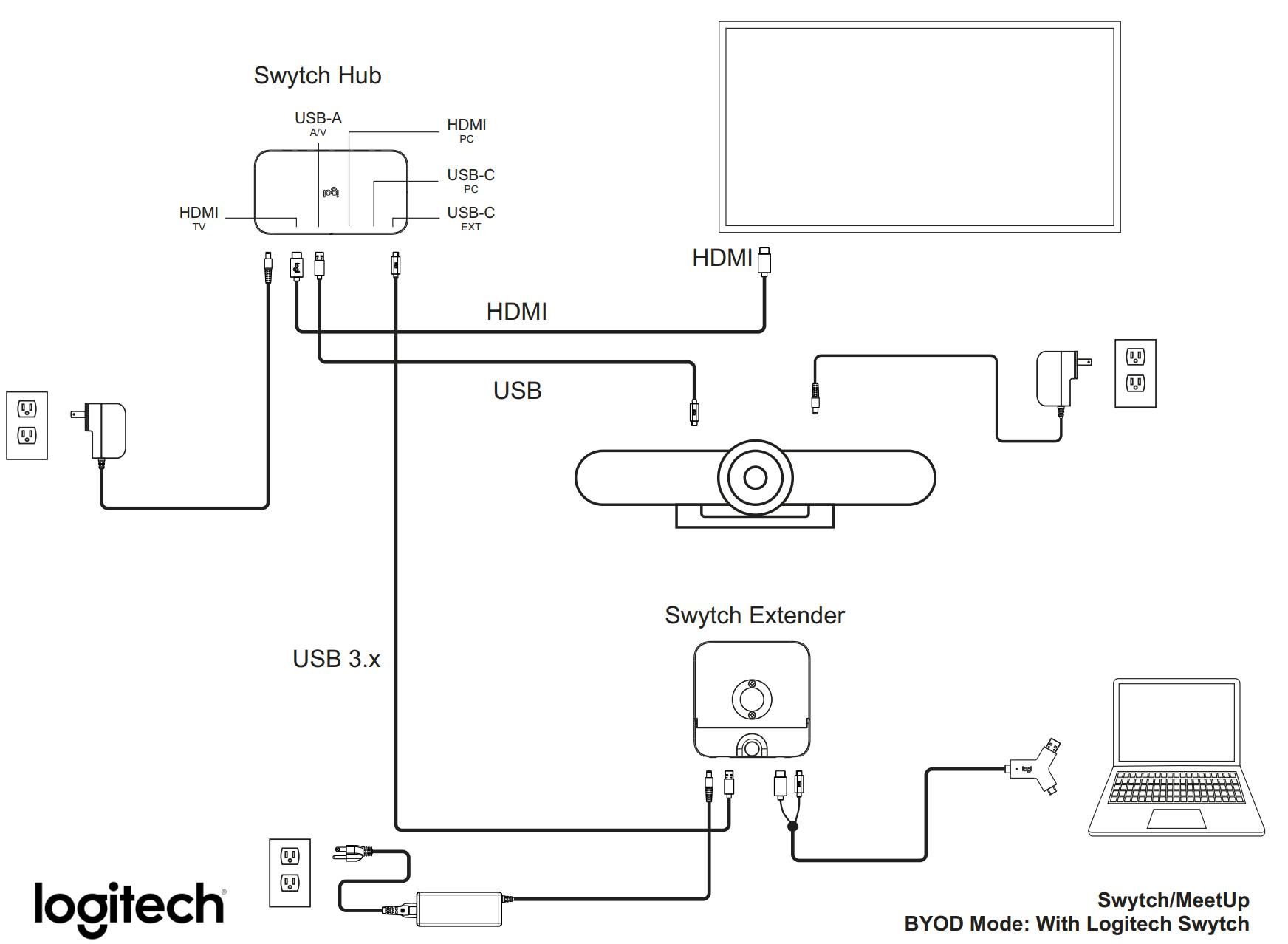

Standard Wiring Diagram

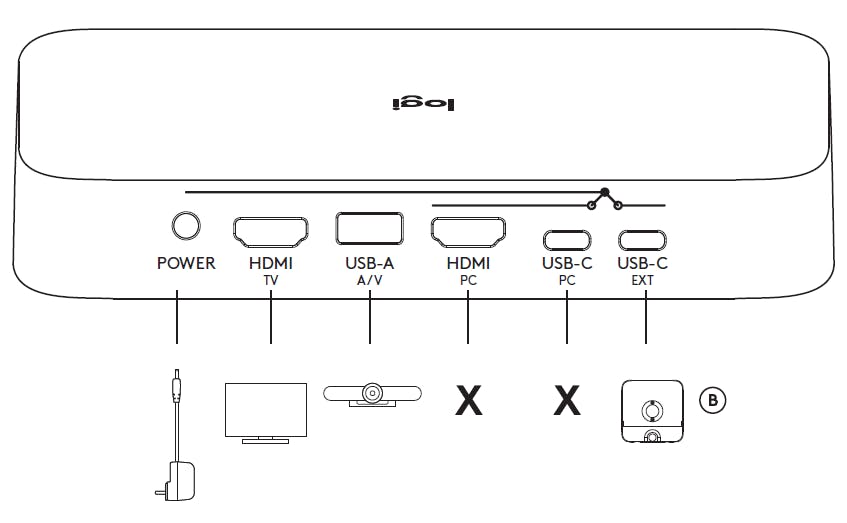

Swytch Hub Connections Detail

Logitech Swytch and USB Requirements

Logitech Swytch leverages USB 3.0 from end to end to enable up to 4K30 Camera and 4K60 Display support. The system is fully compatible with USB 2.0 and USB 3.0 AV devices, including Logitech ConferenceCams such as Logitech MeetUp, Rally, Rally Bar and others.

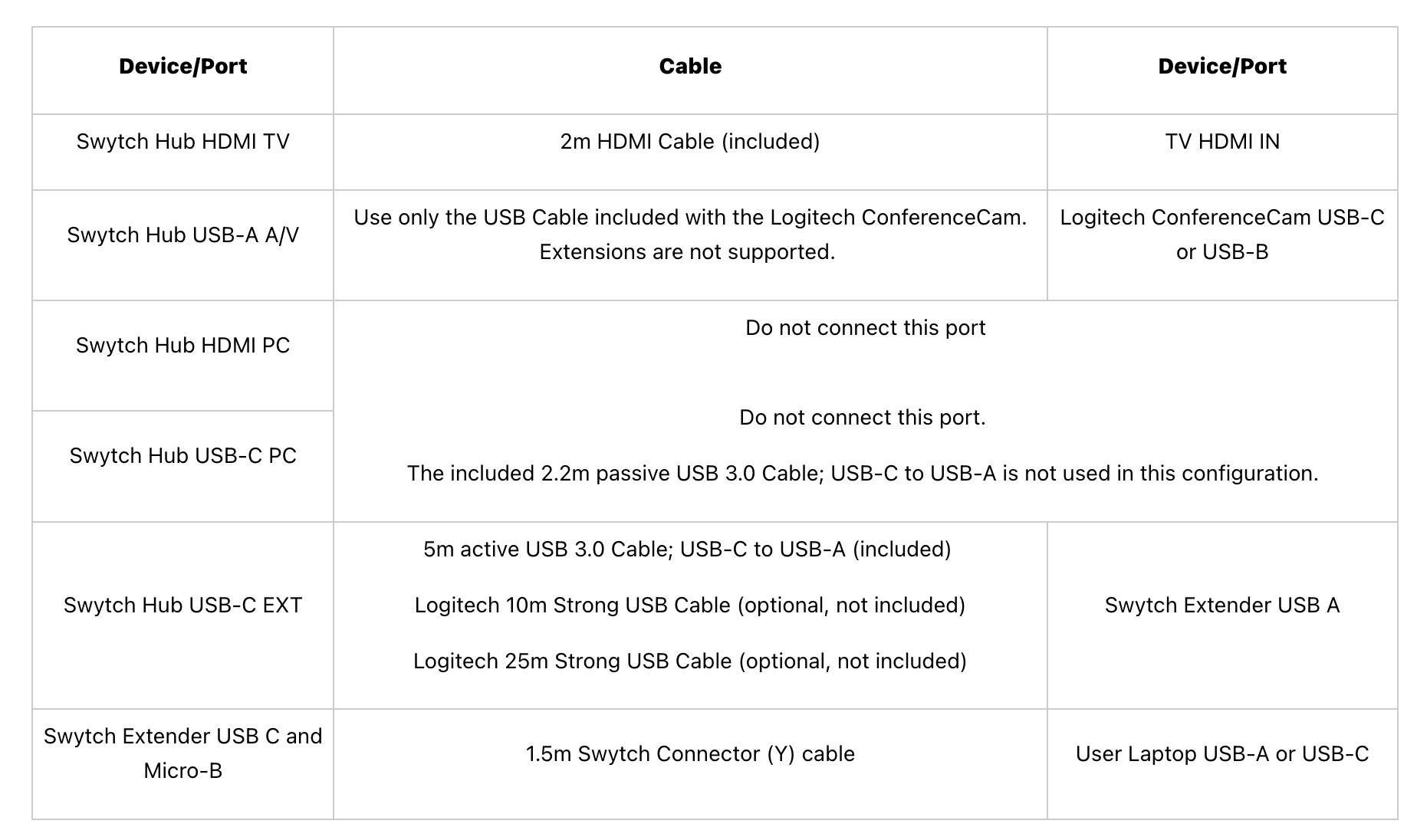

When connecting the system and supported devices, please ensure to follow the wiring diagrams carefully, paying special attention to the cables included with Swytch and the ConferenceCam. The multiple USB Cables are not interchangeable.
