1.3 Getting Started: Provisioning Codes

You can use provisioning codes to simplify the process of adding CollabOS devices to Sync. To add a CollabOS device to Sync using a provisioning code, you will first need to generate a code in Sync Portal and then enter the code when asked in:

  • On-device out-of-box setup experience

  • On-device settings

  • Local Network Access

What you need to get started:

  • Device running CollabOS 1.7 or higher

Generating a Sync provisioning code

There are two ways to generate a provisioning code in Sync Portal:

  • When creating a new room

  • With an existing room

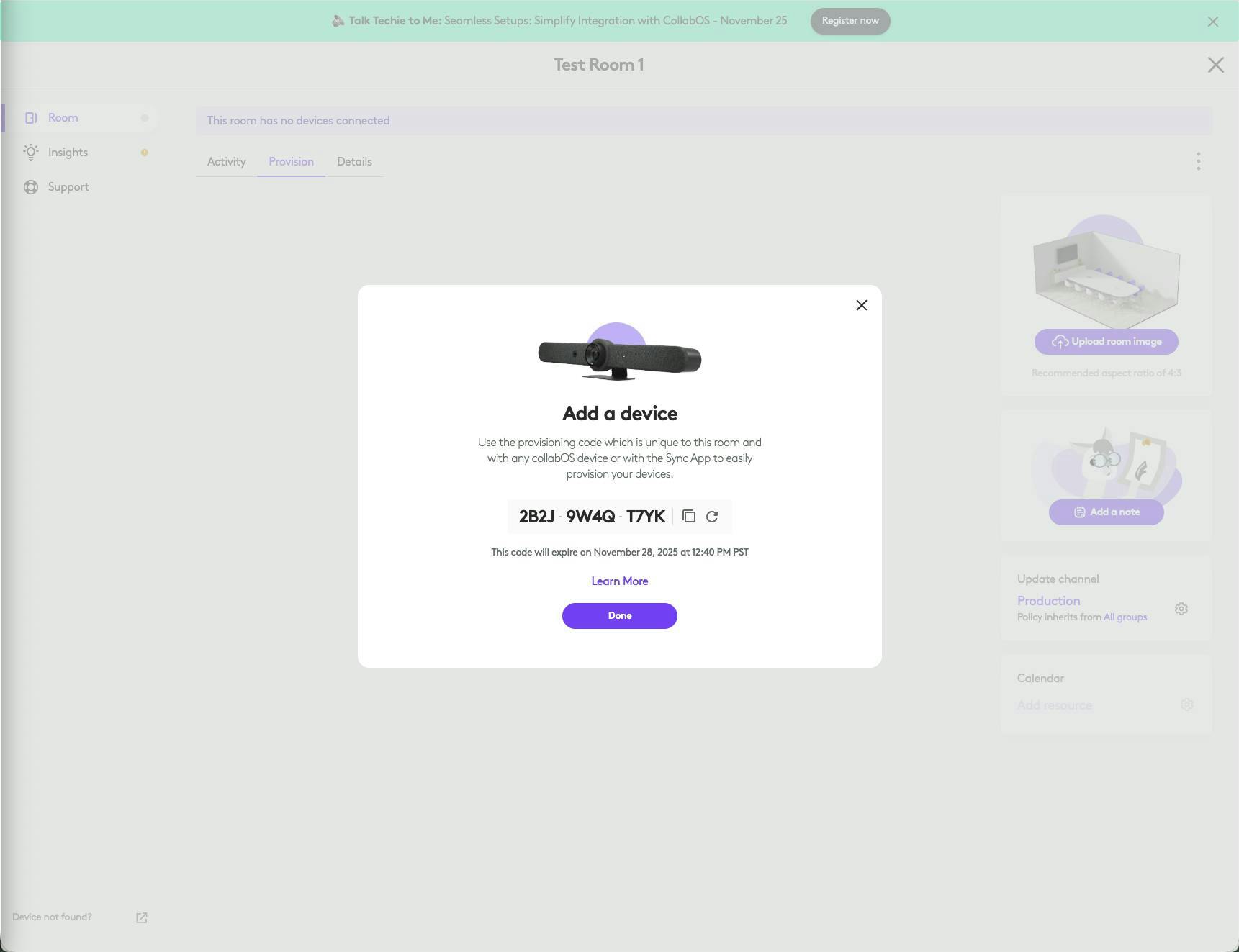

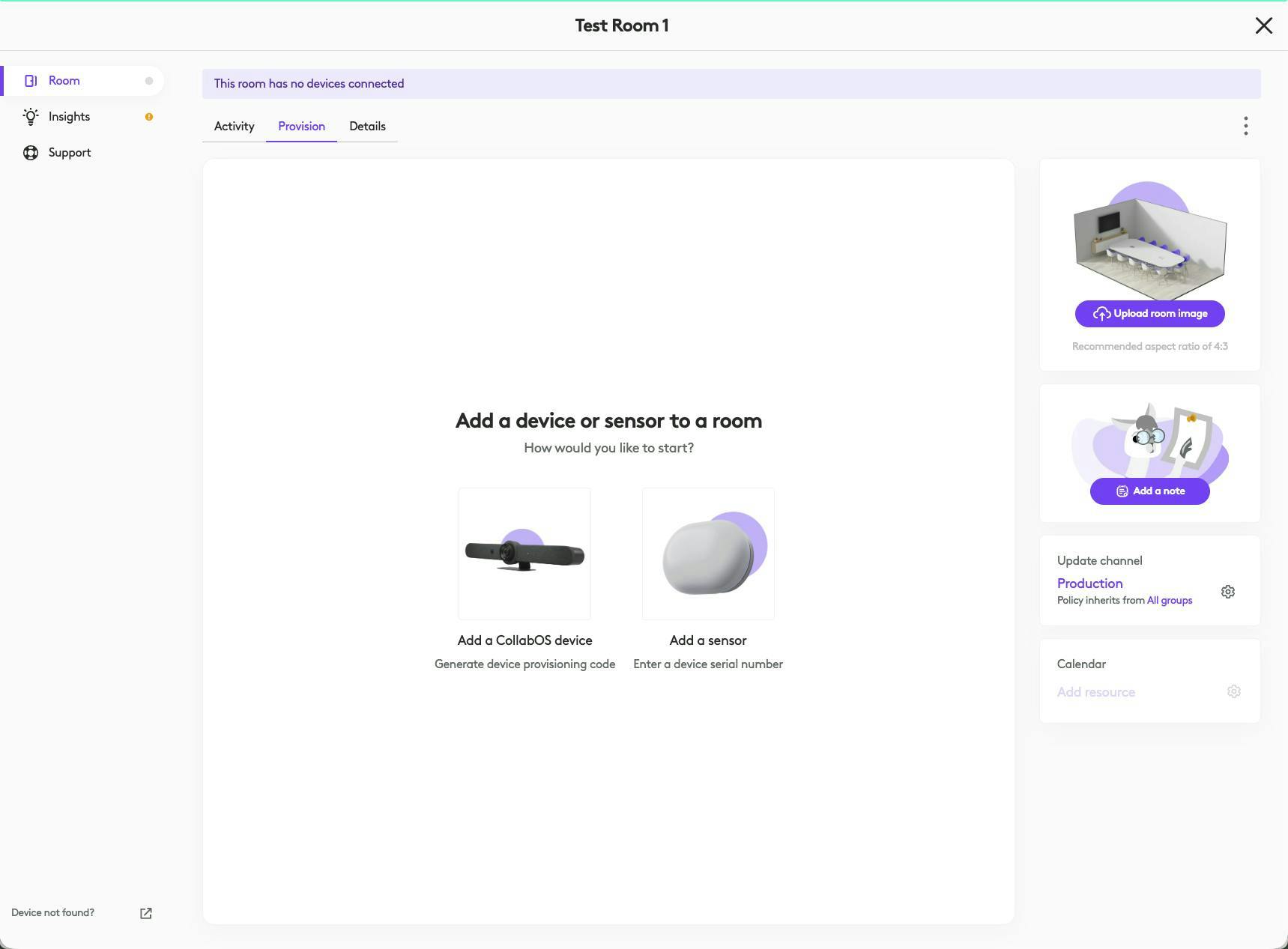

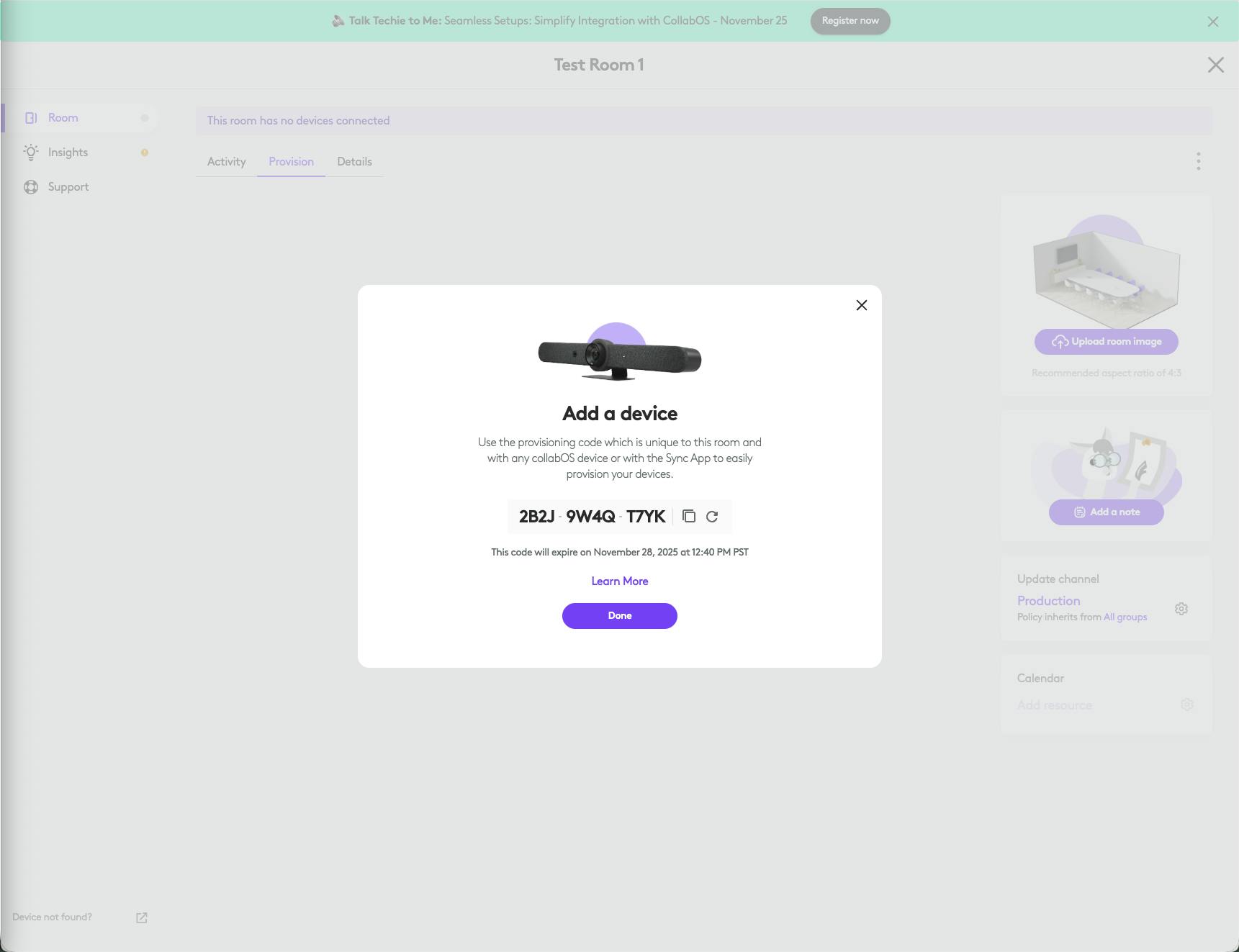

How to generate a provisioning code when creating a new room

  1. Navigate to Inventory in the Meeting Rooms tab.

  2. Click Add room near the top right corner.

  3. Select Empty room.

  4. Enter a Room Name and then select Create. (Note: Seat Count is optional)

  5. Once the room is created, navigate to that room in your meeting room Inventory and the provisioning code will be shown.

  6. If no code appears when viewing the room, click Generate code.

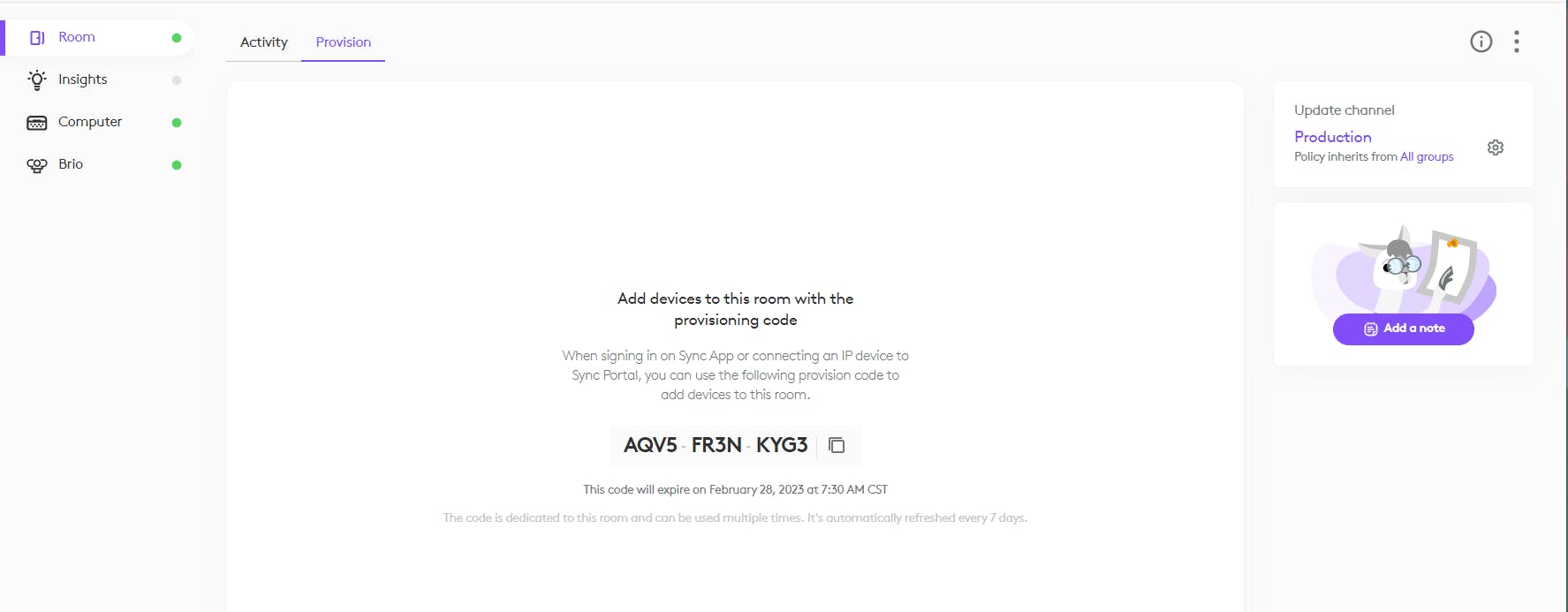

How to generate a provisioning code with an existing room

  1. Navigate to the room you want in your meeting room Inventory.

  2. In the upper left corner click on Provision

  3. The code will automatically be generated in the center of the screen

  4. If no code appears after clicking Room provisioning code, click Generate code.



How to use a provisioning code on a device

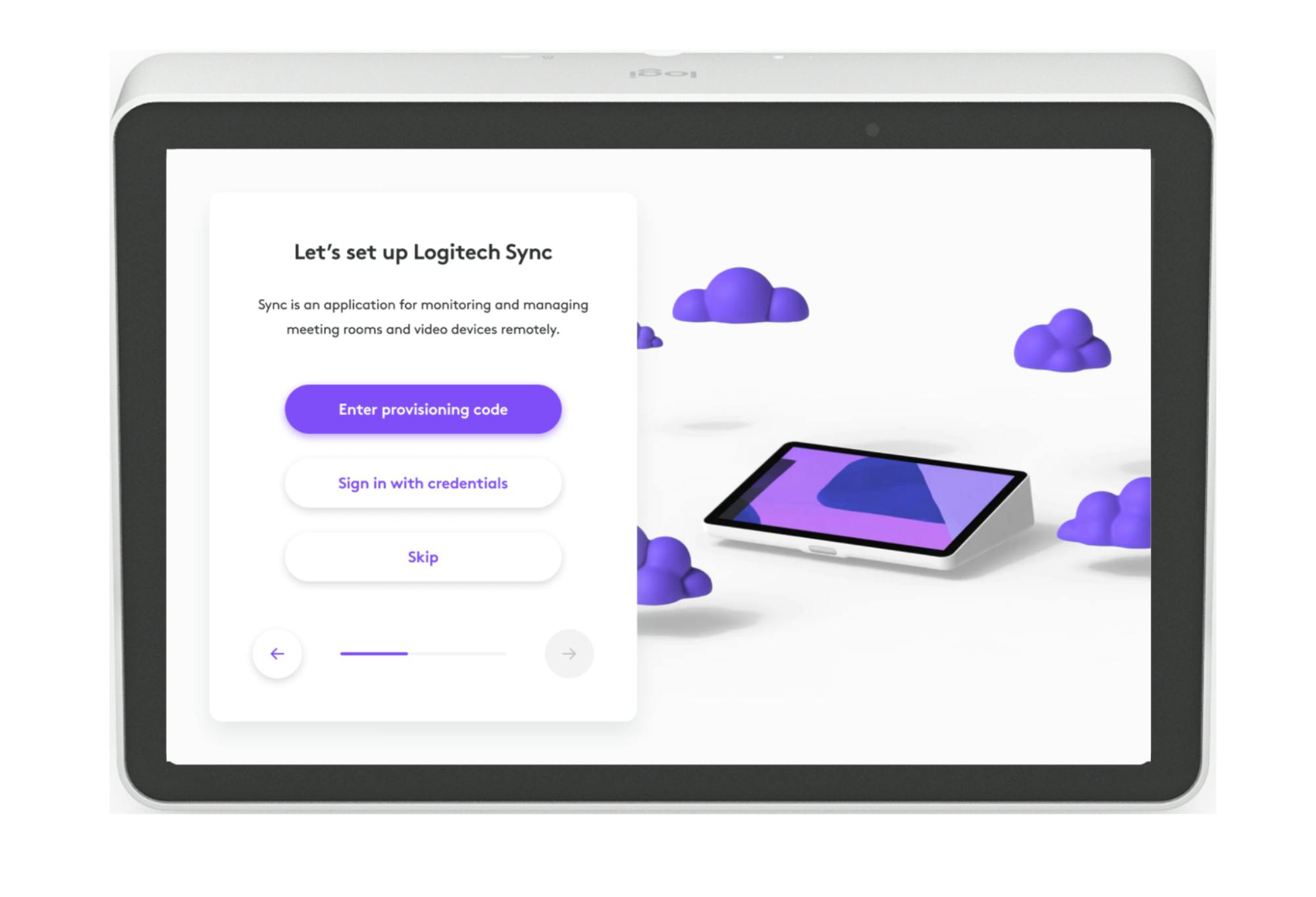

  • Using out-of-box setup experience

    1. Set up your device using touch controller or a device remote.

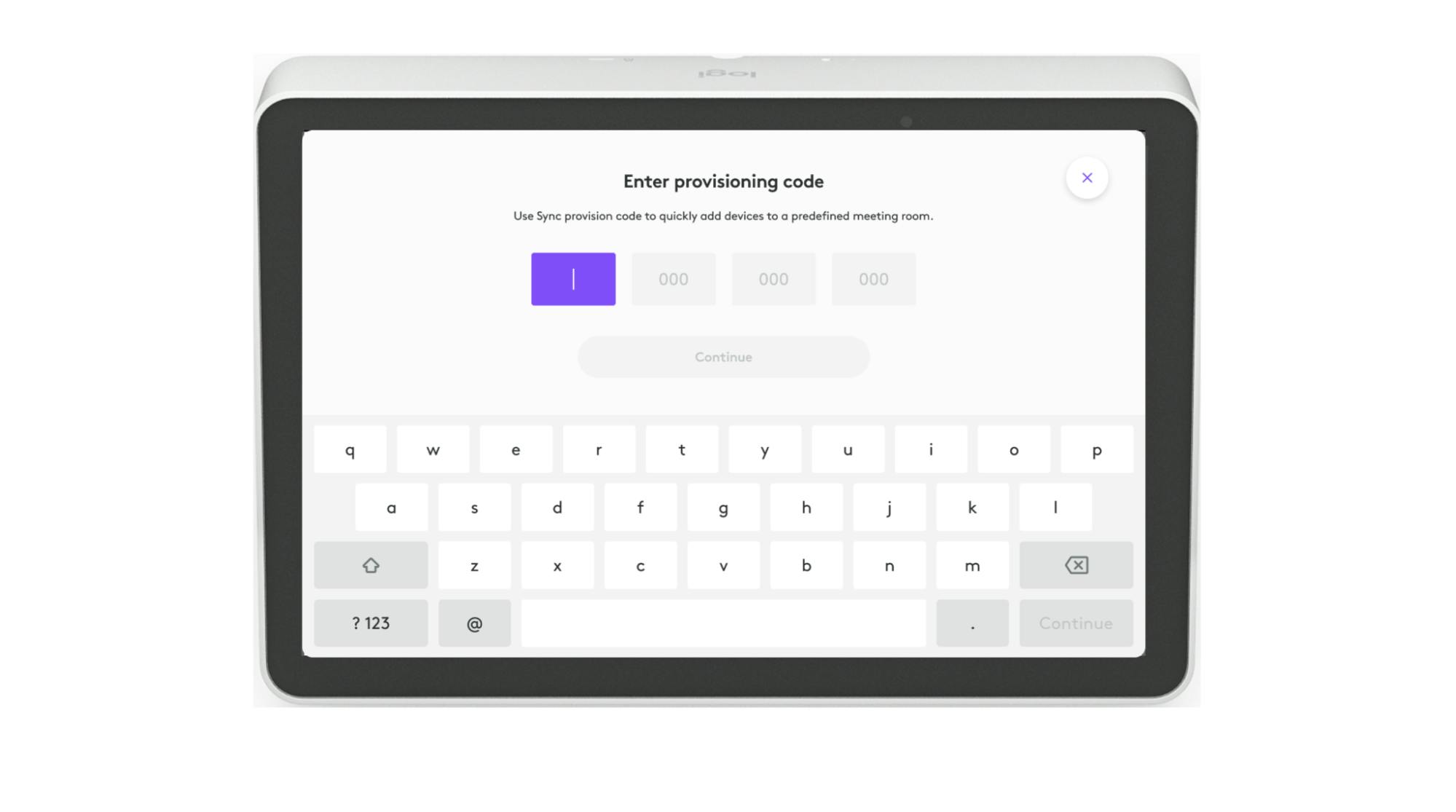

      • On Logitech Sync screen, tap on Enter provision code.

      • Input the 12-digit provisioning code generated in the Sync Portal.

  1. Using on-device settings

    • Go to Logitech settings.

      • Tap on Sync and select Connect to Sync.

      • Tap on Enter provision code.

      • Input the 12-digit provisioning code generated in the Sync Portal.

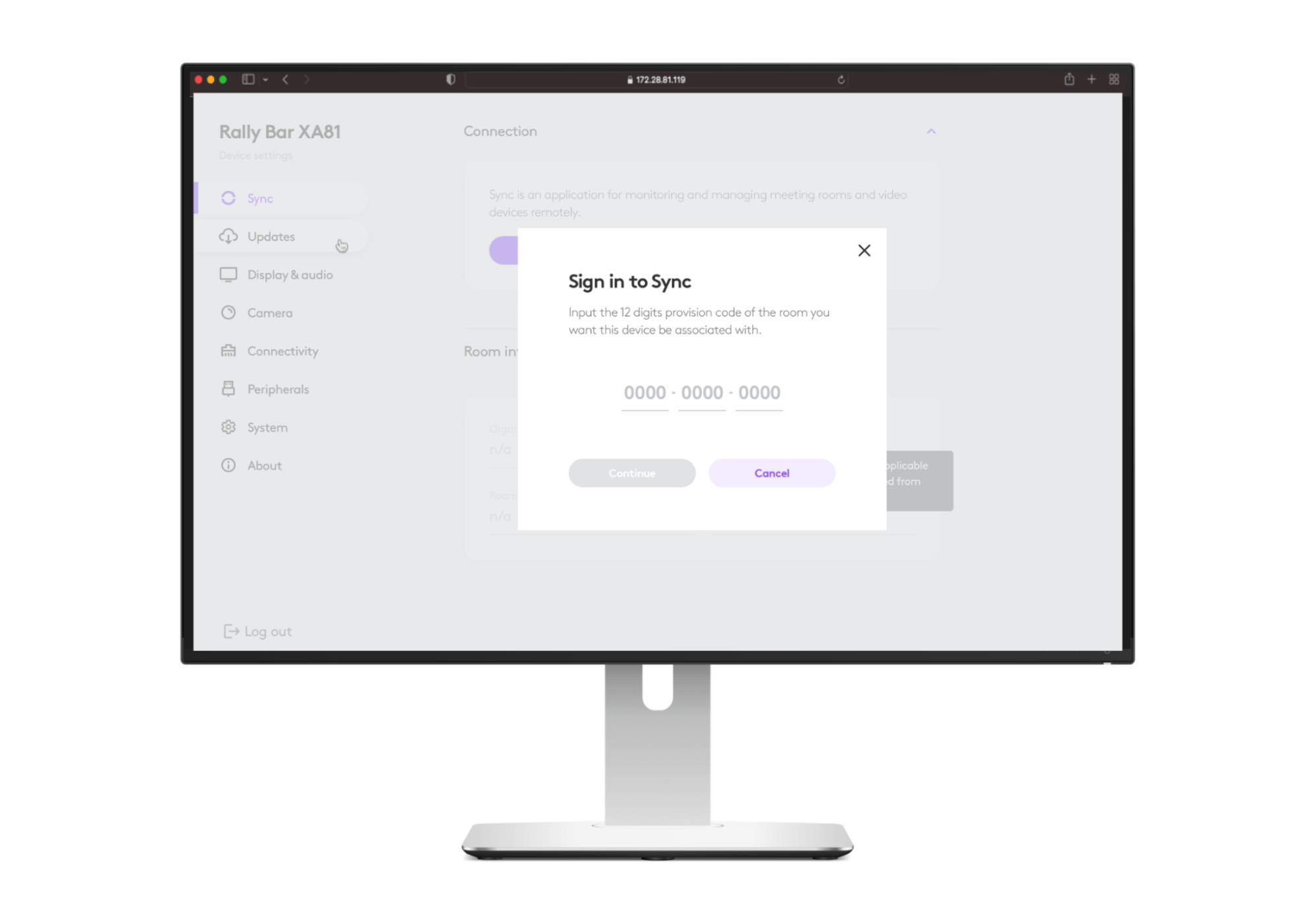

  1. Using Local Network Access

    • Login to your Local Network Access portal.

      • Navigate to  Sync and select Connect to Sync.

      • Input the 12-digit provisioning code generated in the Sync Portal.
