2.1 Meeting Rooms - Dashboard

The Meeting Rooms Dashboard is an aggregate overview of all rooms/hardware.

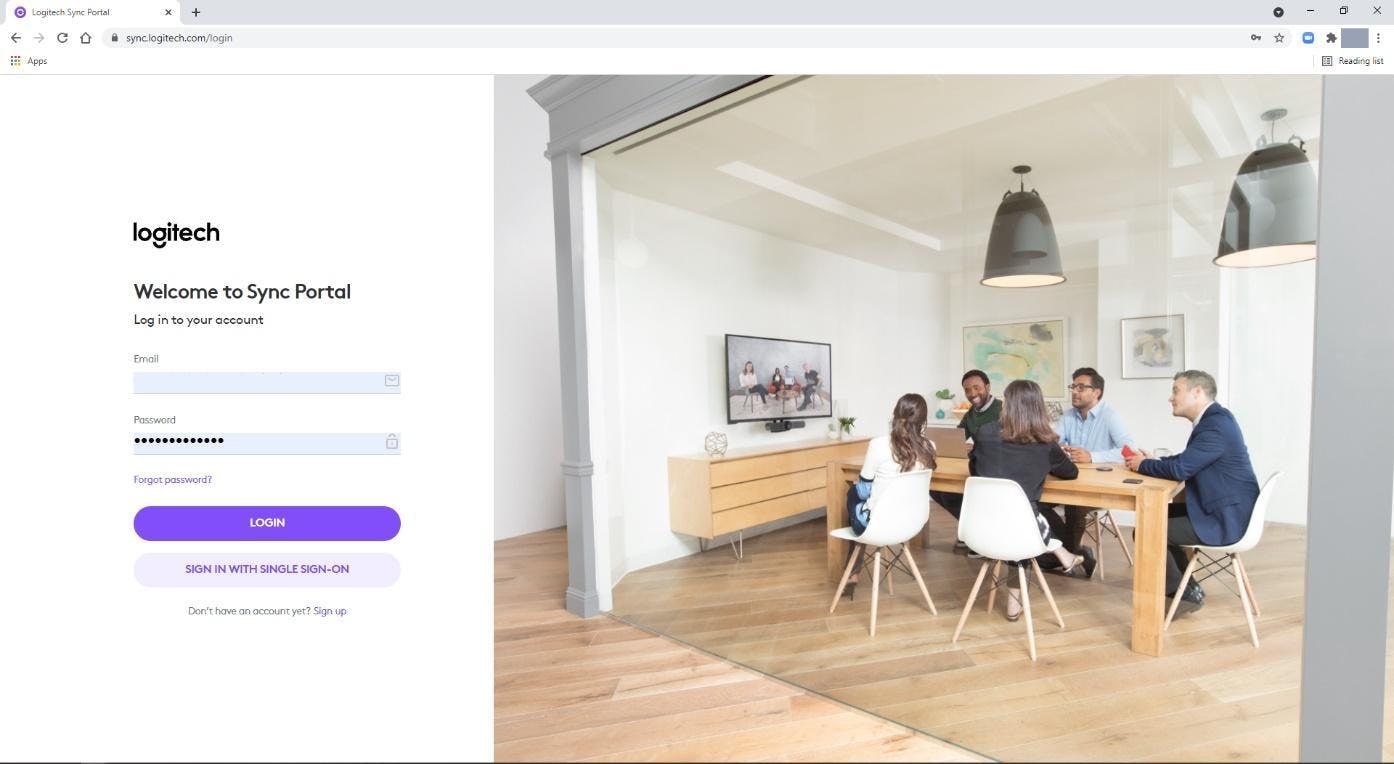

1. Open the following link: https://sync.logitech.com/login and enter admin email and password to login.

2. Go to MEETING ROOMS.

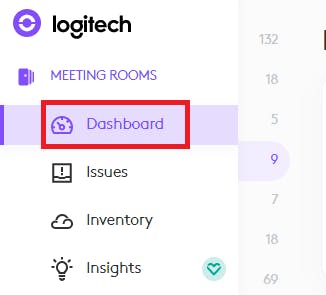

3. Click on Dashboard.

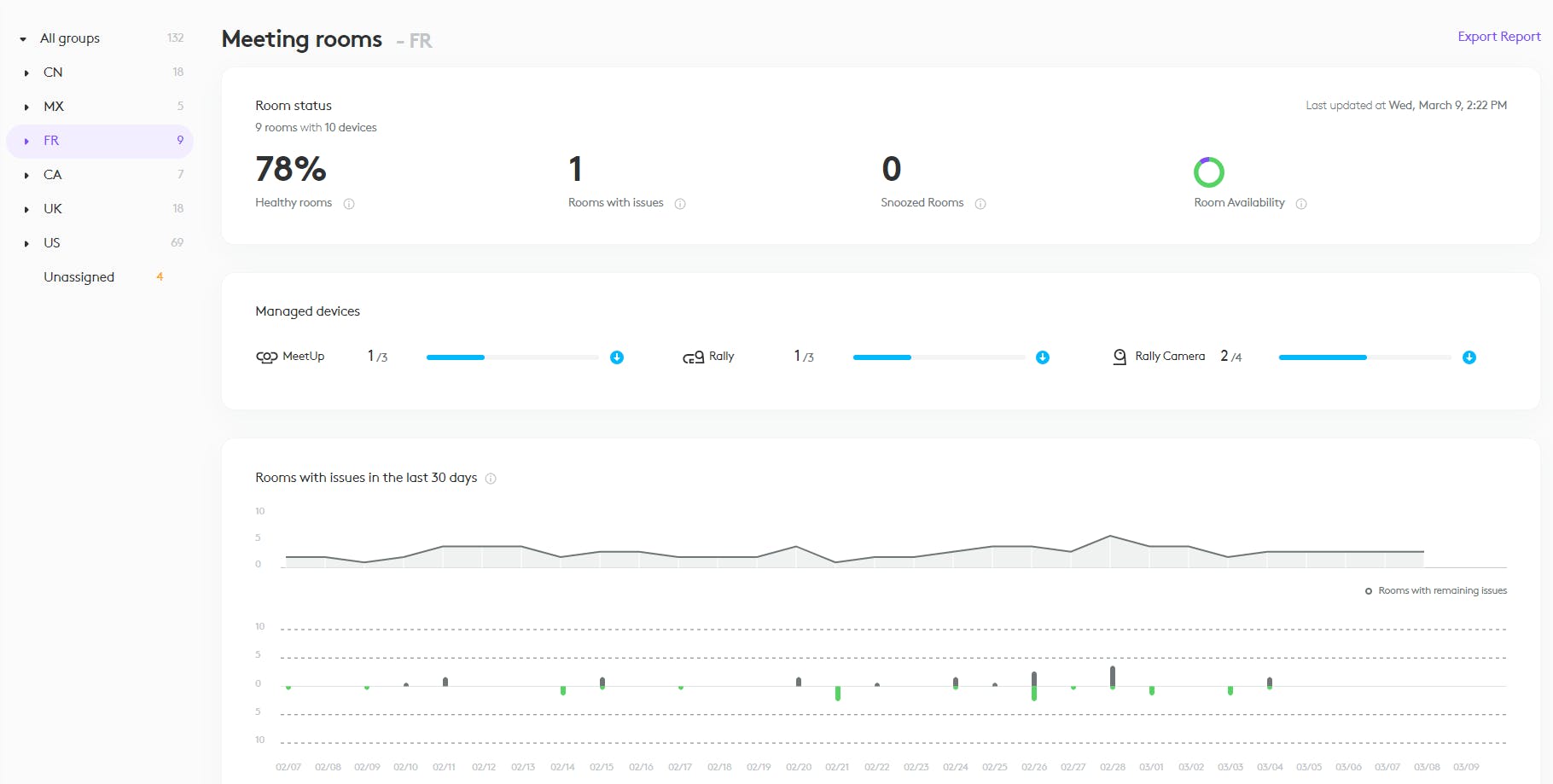

4. On the main screen, you will see a full “Meeting rooms” status report:

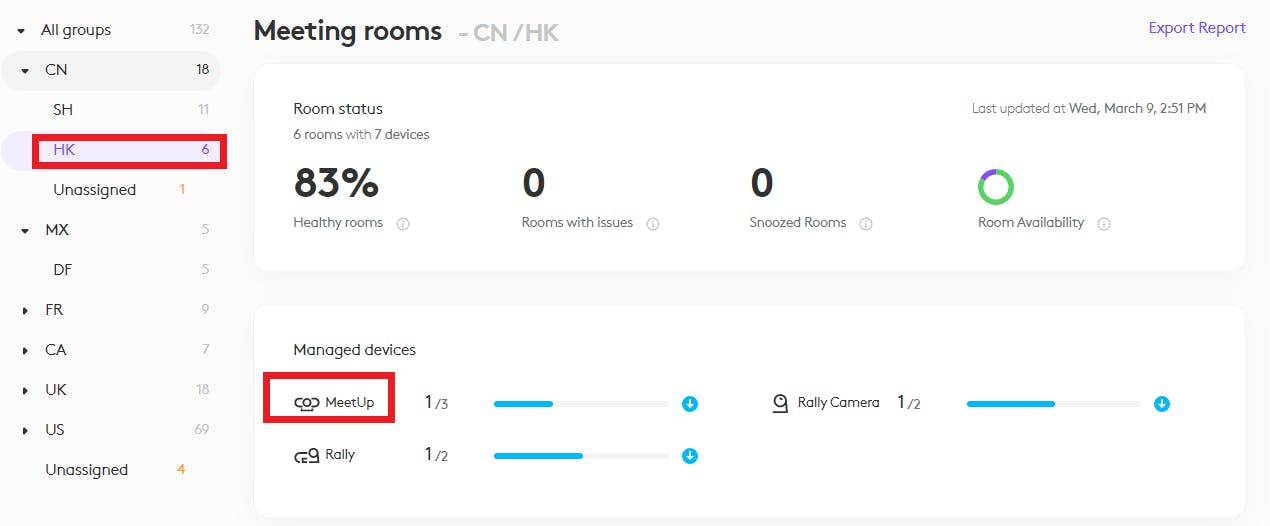

5. You can get the report for a specific group or subgroup by selecting the desired group:

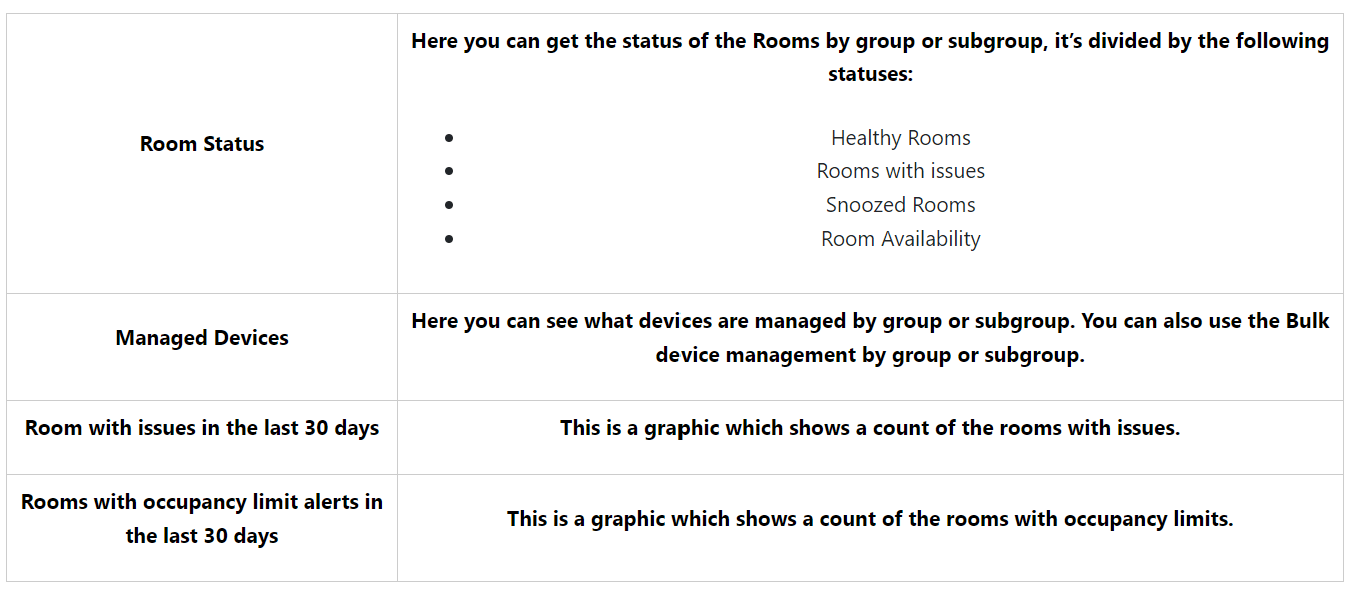

Group Details:

Bulk Device Management

In the “Managed devices” menu you can configure the firmware versions that you want to configure and install on the group’s devices.

1. Select the group or subgroup that you want to configure.

2. Select the device that you want to configure the updates.

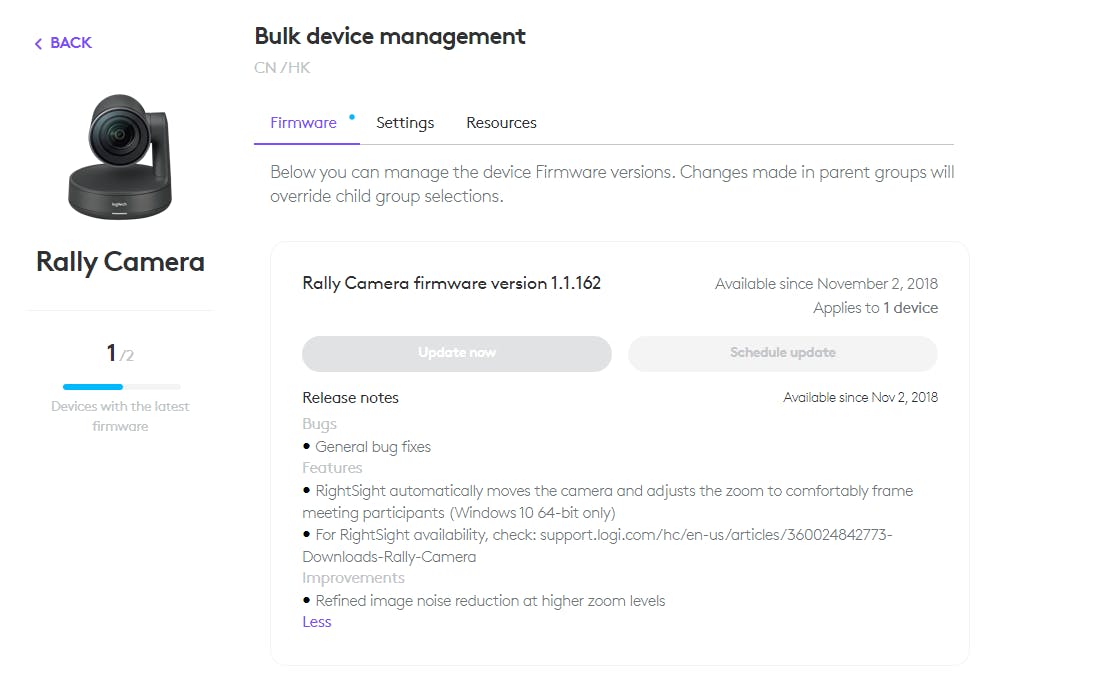

3. A new screen will appear with a list of the available firmware updates available, including the latest version. You can also see how many devices are using the latest firmware version.

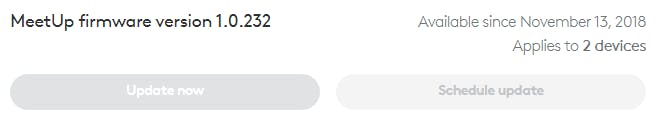

4. On the “Firmware” tab you have two options:

   • Update now

   • Immediately update the firmware for all group devices

   • Schedule update

   • Update the firmware at another time. (For instance, you want to upgrade during non-business hours.)



5. In the “Resources” tab, you will see documentation and guides for the device that you want to upgrade.

Bluetooth Settings

Logitech conference devices that come with a remote use Bluetooth for pairing. If you need to disable Bluetooth in your room setup, this will also disable remote control functions. We recommend using RightSight auto framing for the camera so that meeting participants are properly and automatically framed. Most video conferencing applications provide camera AV control via a touchscreen controller such as Logitech Tap or Tap IP.

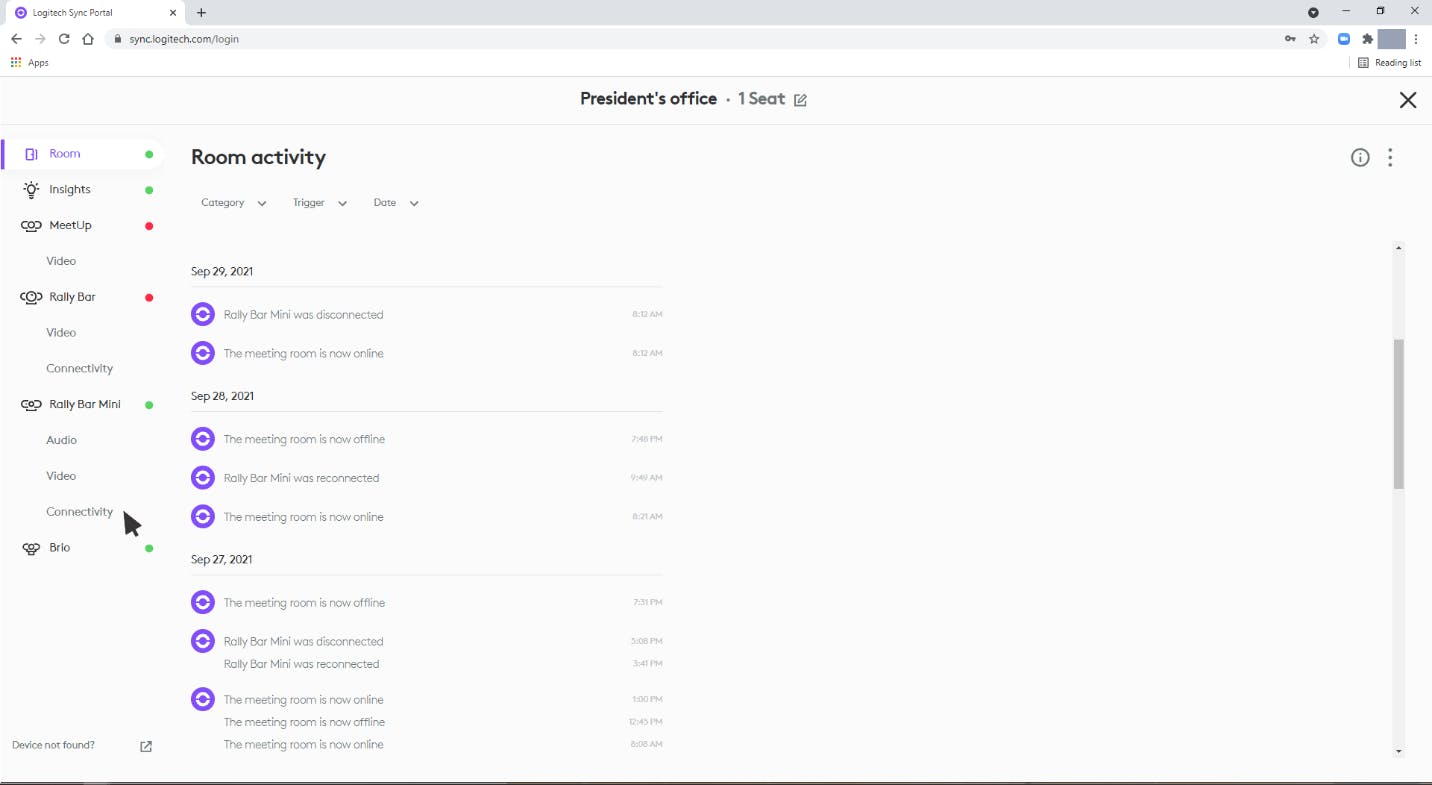

1. Log into your Sync account (sync.logitech.com).

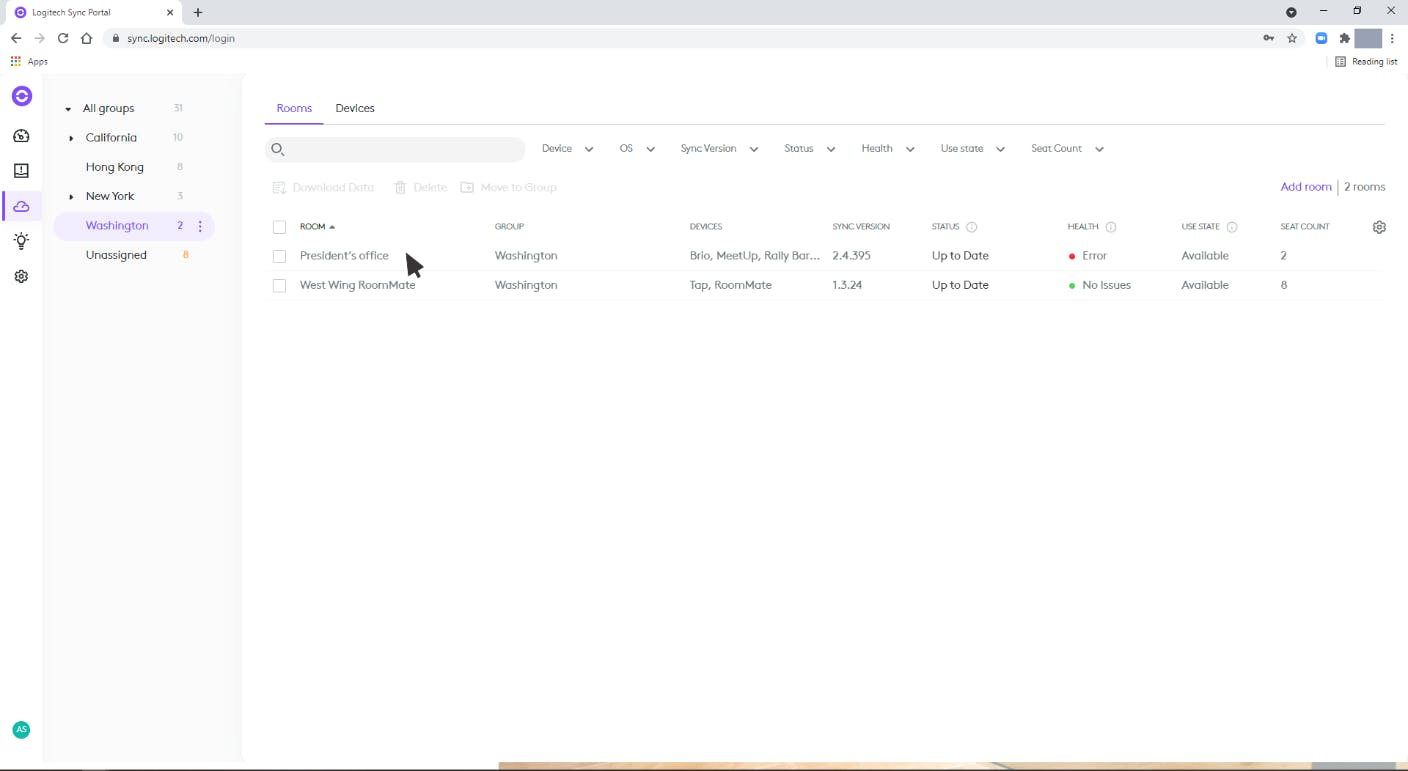

2. Select the appropriate room.

3. On the appropriate device, select “Connectivity."

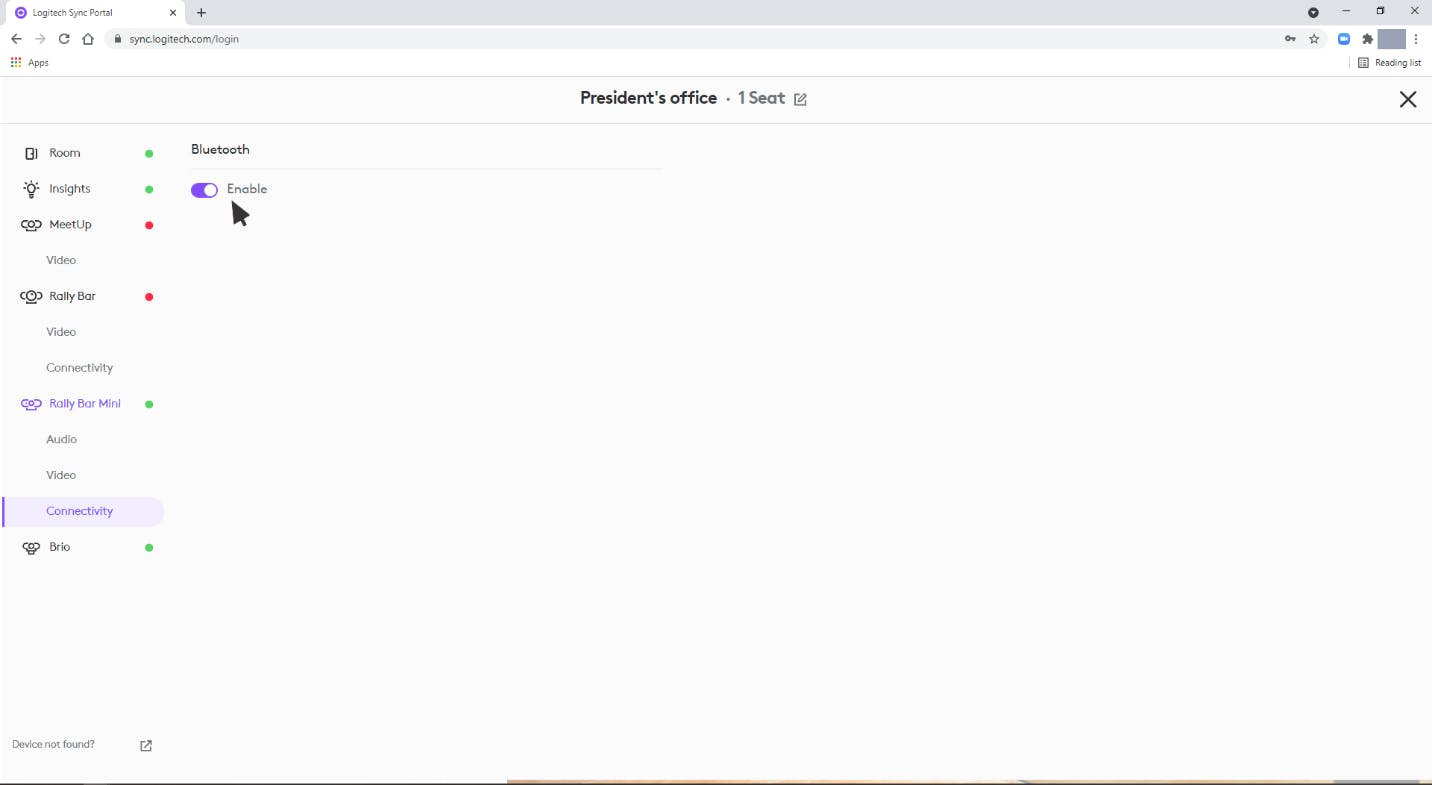

4. Here you can toggle Bluetooth on/off for Rally Bar, Rally Bar Mini, or RoomMate in this room.
