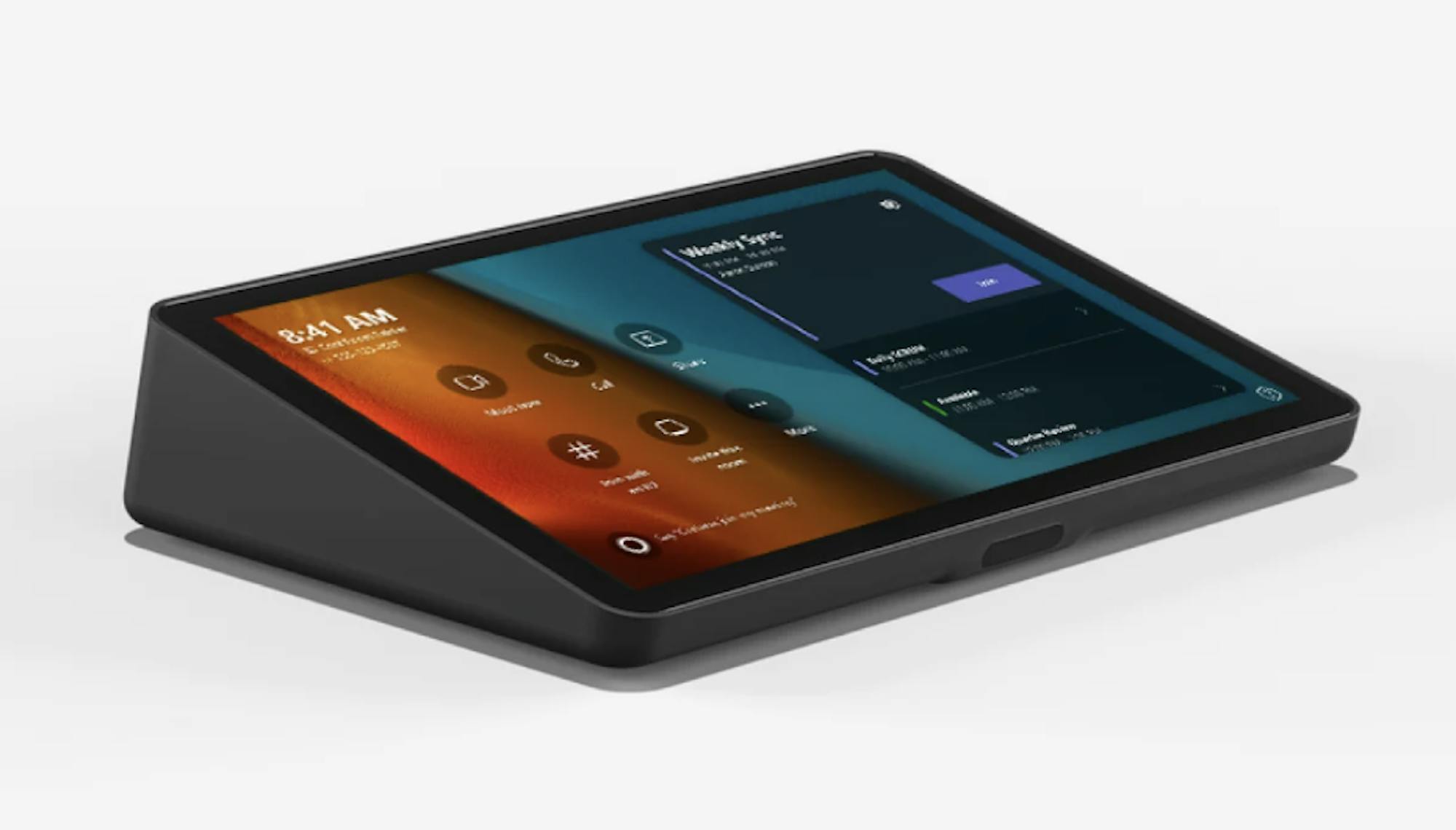

Touch Controller

Tap with USB Kit

USB-connected meeting room controller (Only available with Entry Level Microsoft Teams Room Solution)

  • Warranty - Tap with USB Kit

    2 year limited hardware warranty At Logitech, it is our goal to ensure you are completely satisfied with your Logitech purchase. We take pride in the products and services we offer, and want our customers to enjoy them just as much as we do. If you are experiencing an issue, please visit the Logitech Terms of Use page learn more about the Logitech warranty. Alternatively, you can click the link below to file a warranty claim for your Logitech Business or Enterprise product. Make the Most of your warranty File a warranty claim

  • Specifications - Tap with USB Kit

    In this article you will find detailed specifications for Tap with USB Kit. Tap USB Kit is part of a room solutions bundle that includes: Logitech MeetUp 2 (for detailed information about MeetUp 2 including specifications, visit the MeetUp 2 space here). Lenovo Tiny i3 PC Tap USB Kit Product Information Component: Tap with USB Kit Touch Controller Model Number (M/N): N/A Dimensions Height: 2.3 in (58 mm) Width: 9.6 in (244 mm) Depth: 7 in (179 mm) Weight: 2.2 lbs. (1 kg) Compliance: CE/CCC/EAC/FCC Battery MSDS HS Codes Technical Specifications General Product Specifications Internal cable retention and strain relief system Integrated ultrasonic speaker Integrated PIR Motion Sensor 100mm x 100mm VESA FDMI (Flat Display Mounting Interface) Kensington Lock slots (2) Touch Screen Specifications Size: 10.1” diagonal screen Display Angle: 14° Anti-Fingerprint & Anti-Glare: Oleophobic anti-fingerprint & anti-glare coating Resolution: 1280 x 800 Ports & Interfaces USB 2.0/3.0/3.1 Type C (to meeting room host system) HDMI input (for 1080p video + audio content sharing) Up to 1920 x 1080 (Full HD) at 60Hz Supports lower resolutions (e.g., 1280 x 720) for devices with limited output options 3.5 mm 4 pole Headset Jack 12VDC Power Optional Accessories Table Mount Riser Mount Wall Mount Cat5e Kit for Logitech Tap Warranty 2-year Limited Hardware Warranty 1-year and 3-year Extended Warranty available for purchase Compatibility Windows¼ 11 Logitech Tap with USB Kit is certified for use in a bundle with Lenovo ThinkSmart Tiny as an entry-level Microsoft Teams Rooms on Windows solution. For the latest certification and compatibility information, see here: https://hub.sync.logitech.com/tapip/post/lDlBFLSxeFMJU0u. Package Contents Tap Touch Controller USB-C to HDMI Cable 1.5m USB 2.0 Cable 5m Documentation

  • Logitech Tap Family Compatibility Information

    Updated May 2025 In this article, you will find current video conferencing platform compatibility information for the Logitech Tap Family. Room Solutions Deployments The Logitech Tap Family of touch controllers work in conjunction with third-party video conferencing platforms to operate and control Logitech room solutions, which include Logitech conference cameras and other devices. Note: PC-based room solutions are video conferencing room configurations that require a dedicated meeting room computer running Windows or macOS. Appliance-based room solutions are room configurations in which the video conferencing platform operates on a Logitech CollabOS appliance, such as Rally Bar, Rally Bar Mini, or RoomMate. Platform Compatibility Video Conferencing Platform Logitech Tap IP Logitech Tap with Cat5e Kit Logitech Tap with USB Kit Google Meet on Android** Certified Certified -- Google Meet on ChromeOS** -- Certified -- Microsoft Teams Rooms on Android Certified Certified -- Microsoft Teams Rooms on Windows -- Certified Only certified as part of Entry Level Solution Zoom Rooms Appliances Certified Certified* -- Zoom Rooms for Mac Certified -- -- Zoom Rooms for Windows Certified Compatible* -- Tencent Meeting Rooms Certified Certified -- Note: Certification programs include those offered by certain partners like Microsoft and Zoom, as well as by Logitech, that help ensure a reliable user experience for enterprise-grade video conferencing. Features for the touch controller will vary depending on the platform’s capabilities to support. *Zoom does not currently have a formal certification program for USB-connected controllers like Logitech Tap. When Tap is directly connected to Logitech Rally Bar or to Rally Bar Mini, they are Zoom-certified as all-in-one room systems. **Google Meet hardware supports a single touch controller per room. Logitech has discontinued support for GoTo Rooms, Pexip and RingCentral. Please see CollabOS Release Notes for more details.
