How to Enable Intelligent Camera with People Recognition on Rally Bar/Rally Bar Mini for Microsoft Teams on Windows (Beta)

Overview

People Recognition enhances hybrid Teams meetings by automatically identifying and labeling in-room participants, highlighting active speakers, and providing live transcription with speaker recognition. Names appear directly on video feeds and in the call roster, helping both in-room and remote attendees follow the conversation accurately and creating a more inclusive meeting experience. This feature enhances Multi-Stream IntelliFrame, enabling name labels on individual video streams for participants who have enrolled their facial profile through Teams.

Features

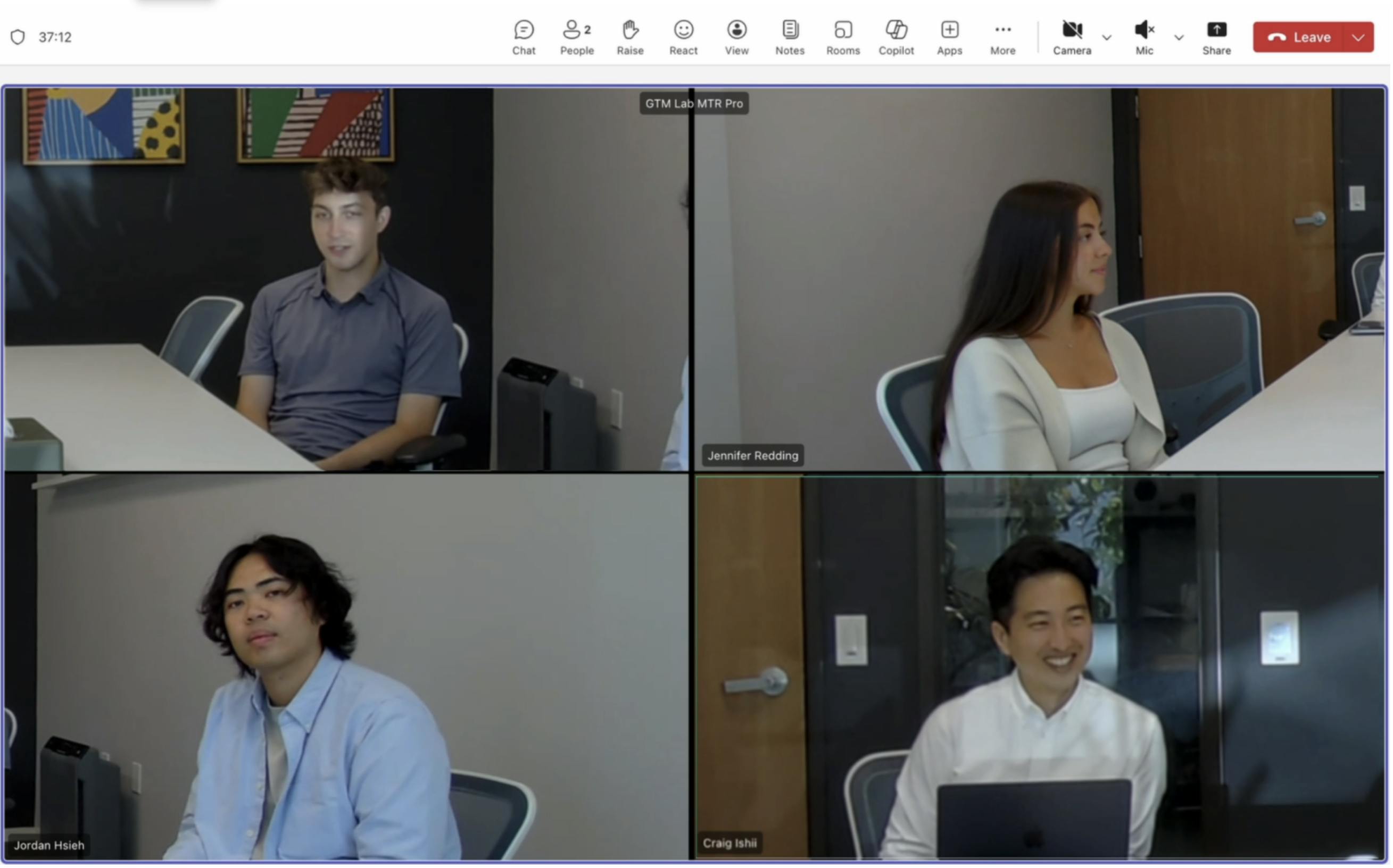

Name Labels on In-Room Participants

Displays participant names directly on video feeds in real time for everyone physically in the room, making it easy for remote attendees to know who’s speaking.

In-Room Participants Listed in the Call Roster

Adds recognized participants as individual entries in the meeting roster, mirroring remote attendee listings and making it easier to track who is present in the room.

Live Transcription with Speaker Recognition

Generates real-time transcripts during meetings and attributes each statement to the appropriate in-room speaker using voice profiles and speech recognition, ensuring conversations are easy to follow even in large or hybrid sessions.

Getting Started

To use Intelligent Camera with People Recognition, you’ll need a Logitech Rally Bar or Rally Bar Mini running CollabOS 1.15 or higher.

Pre-requisites:

Logitech Rally Bar or Rally Bar Mini
- USB 3.0 or higher cable connected to a USB 3.0 or higher port on the Teams Rooms device
- CollabOS 1.15.149 or higher
- Sync App 3.8.254 or higher
- Enable Multi-Stream IntelliFrame and disable Sub-tiling in Logitech Sync
  - People recognition is not supported when sub-tiling is enabled
  - See How to enable Multi-Stream IntelliFrame on Rally Bar for Microsoft Teams on Windows (Beta)
Certified Microsoft Teams Rooms Windows Compute
- Teams Rooms on Windows version: 5.3.111.0 or higher
- Teams Rooms Pro license
- Teams Rooms account in Ring 1.5 preview
Teams Configuration
- Always schedule a meeting to use People Recognition
- Teams Room account needs to be in the meeting invite
- Participants who want to be recognized must be part of the Teams meeting invite and complete the one-time voice enrollment and face enrollment in the Teams app prior to the meeting
  - Identification and Attribution will only work for invited users who have completed their facial profile enrollment.
- The meeting organizer/participant must join the meeting first from the Teams desktop application
- Ad-hoc meetings and 1:1 calls do not support IntelliFrame or People Recognition
- Admins must configure the tenant policy, See the Microsoft guide
  - Enabling enrollment option and people recognition

Step-by-Step Guide

On your Teams Room computer, go to the Teams admin settings and login to Windows as an administrator.
Download and install the latest version of Logitech Sync on your Teams Rooms on Windows computer.
Start the Sync app and make sure that the room’s camera (Rally Bar / Rally Bar Mini) is updated to CollabOS 1.15.0 or higher.

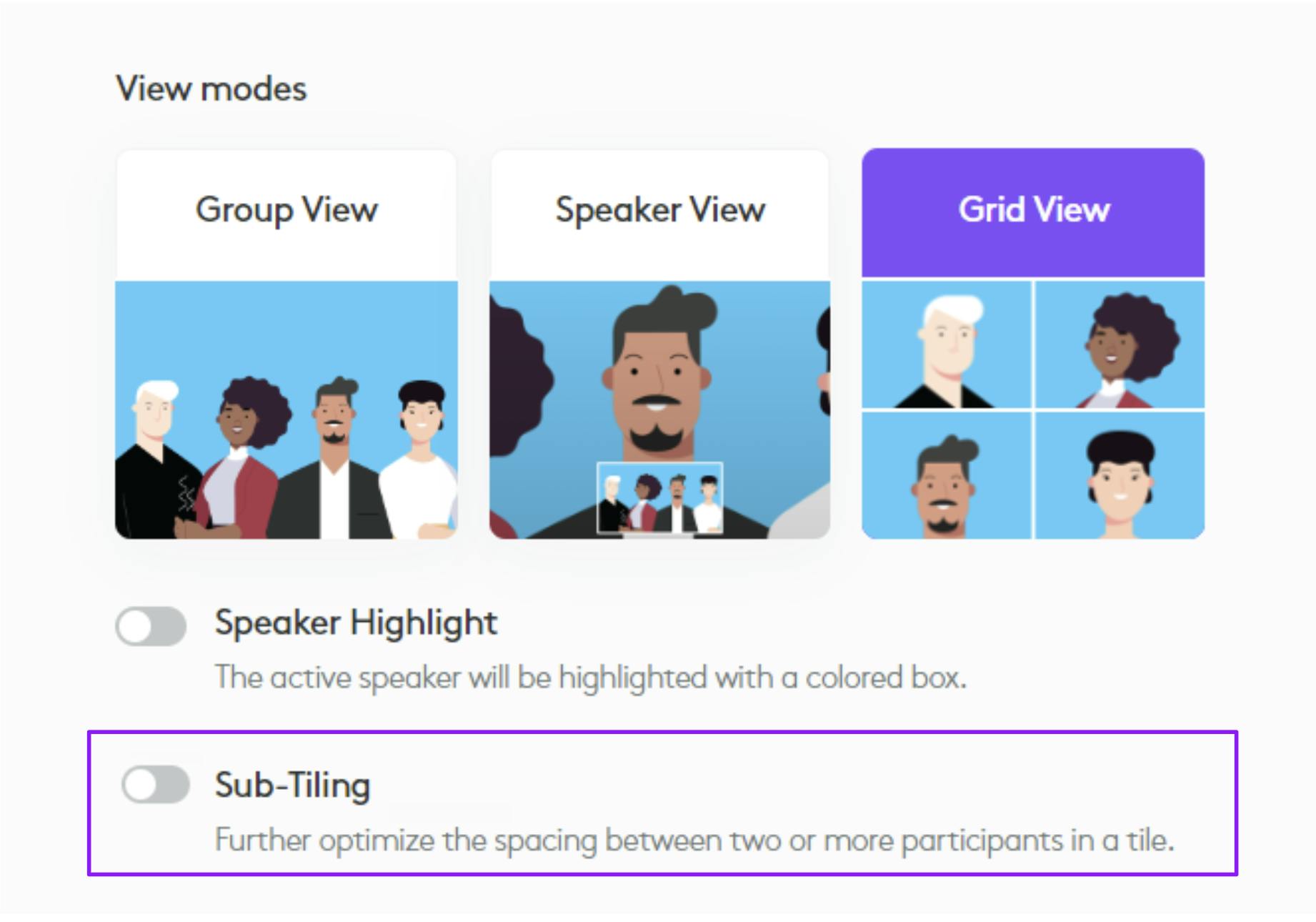

In the Sync app, go to the camera section and select Grid View, then disable Sub-Tiling
1. First select Grid View
2. Then disable Sub-Tiling

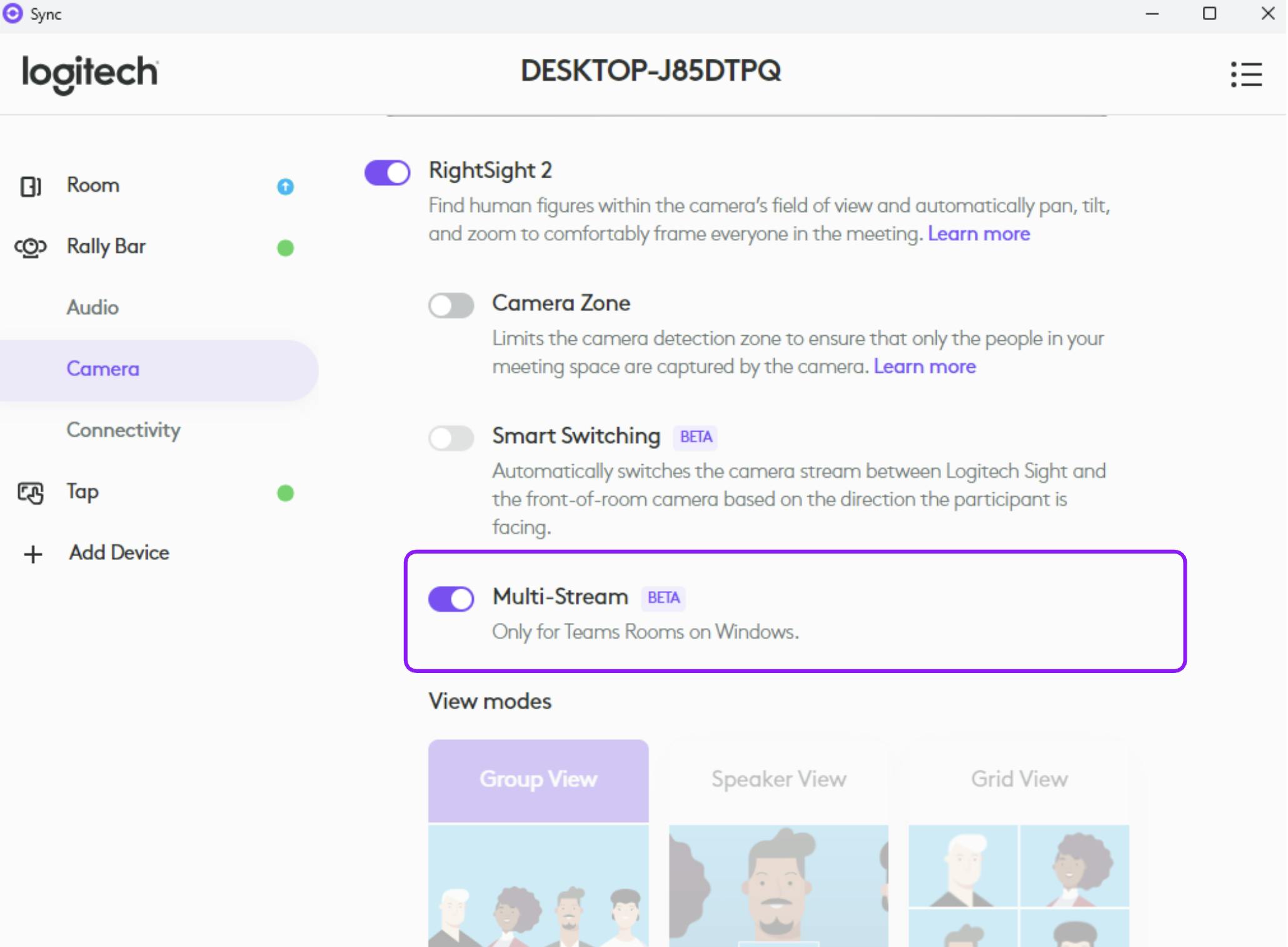

In the Sync app, go to the camera section and enable RightSight2 and the Multi-Stream option.

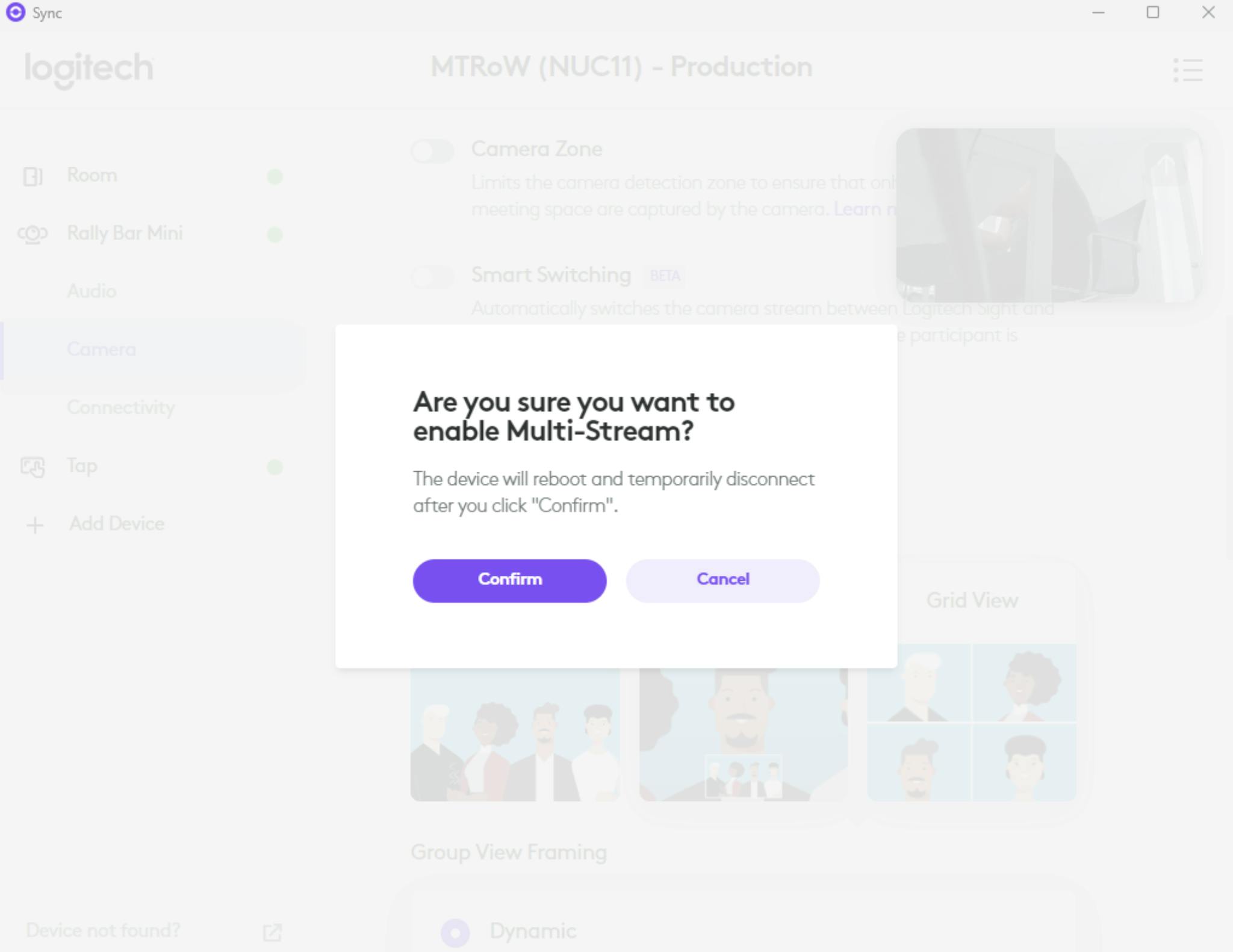

The Rally Bar/Rally Bar Mini will reboot to enter Multi-Stream mode.
Teams Rooms should be ready to use once the device has rebooted.

Ensure Rally Bar/Rally Bar Mini is the selected camera.

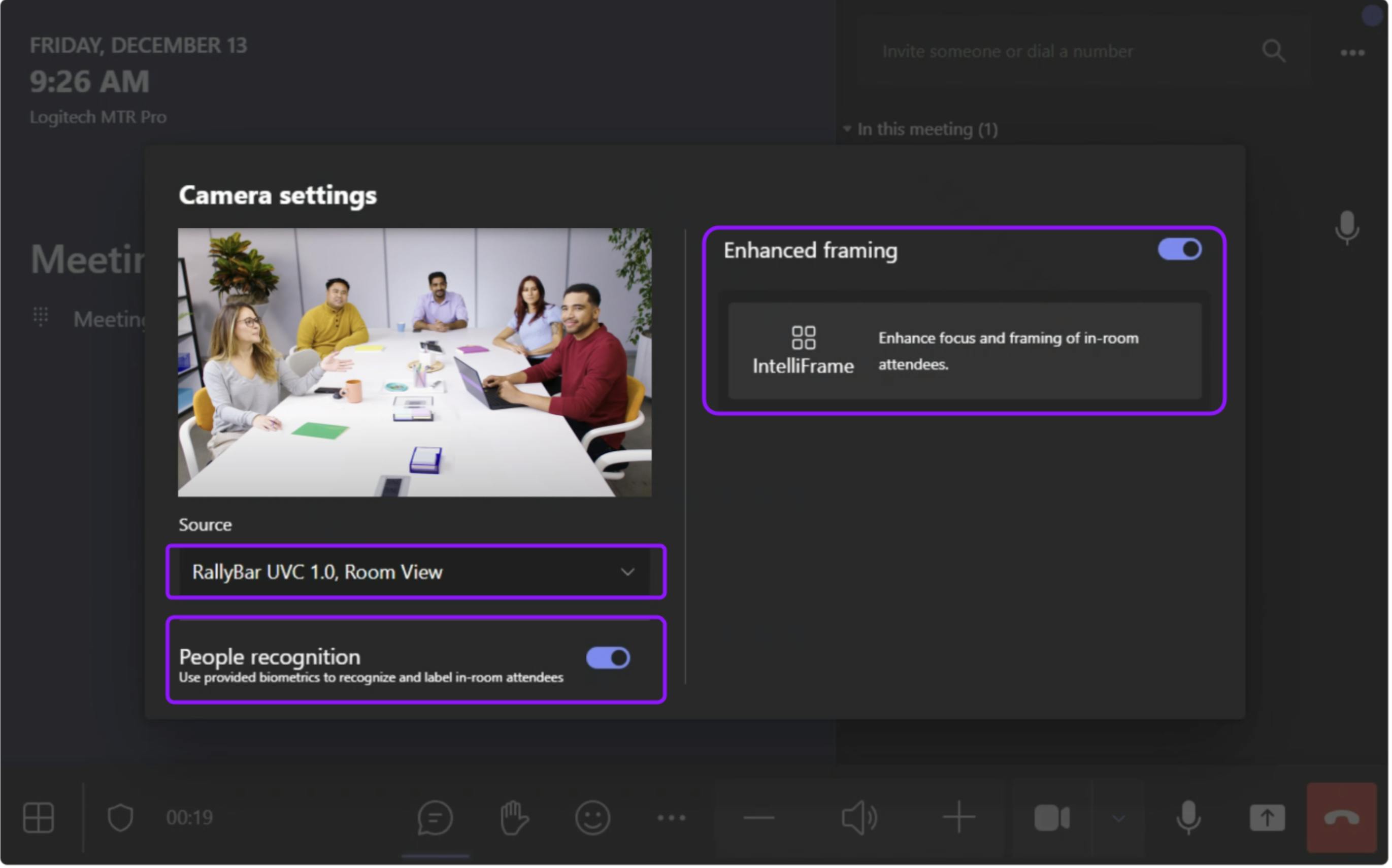

Open camera settings and make sure that Enhanced framing and People Recognition is enabled.
- Important: People recognition requires the Teams Rooms account to be enrolled in the Microsoft Teams Ring 1.5

Prepare your organization by enabling Face enrollment and People recognition.
- This step involves the configuration of Teams Rooms and user accounts. You must enable face and voice enrollment via PowerShell policies and Teams settings, so that a certified Multi-Stream IntelliFrame camera can recognize participants and then stream individual video feeds labeled with names alongside a panoramic view.
- Complete all steps in Microsoft's guide, Enabling enrollment option and people recognition.

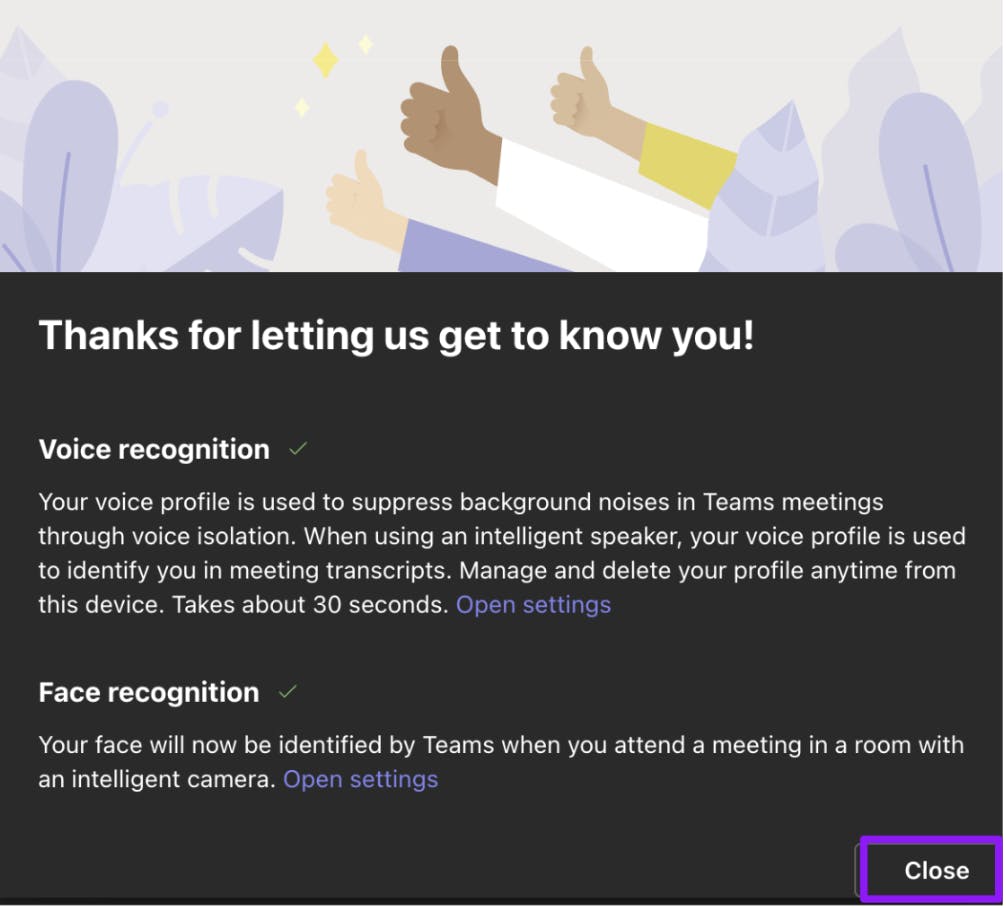

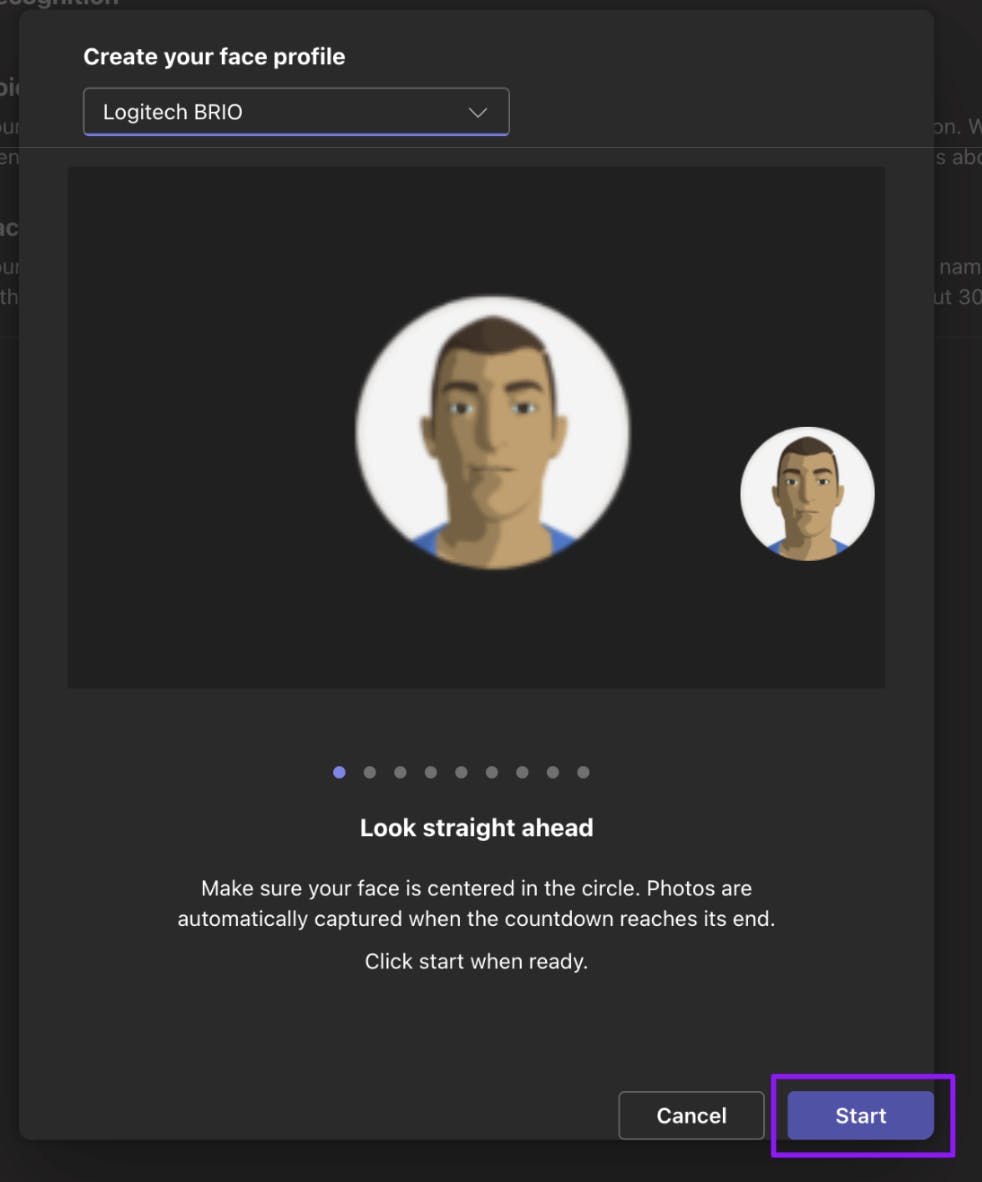

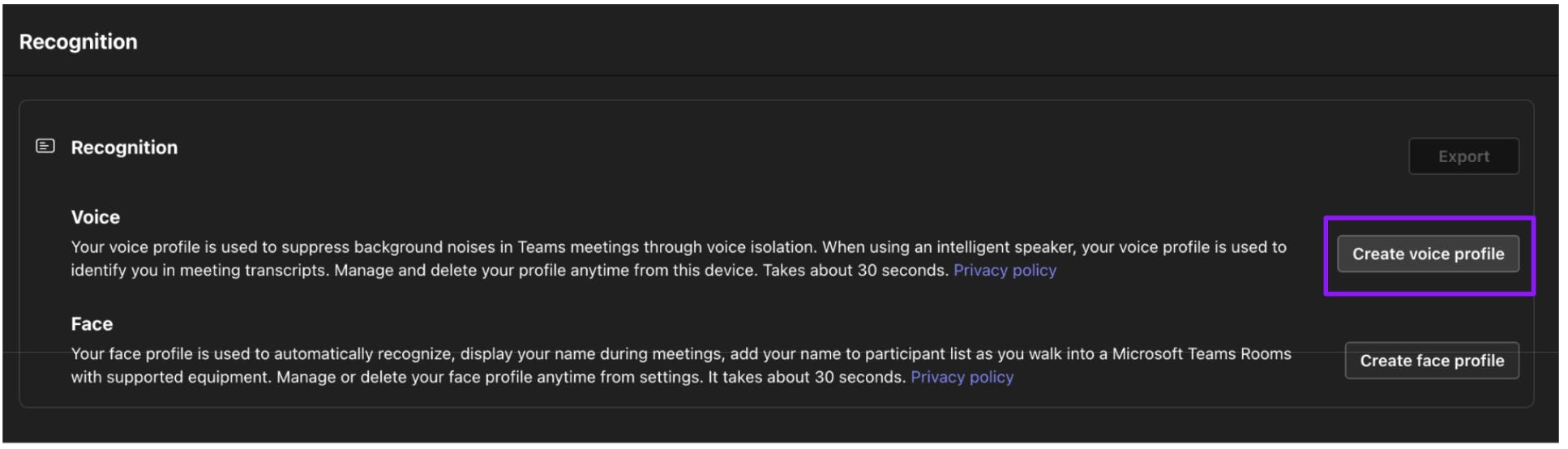

Each user who wants to be recognized in a meeting must self-enroll for face and voice recognition.
This is required to allow Teams to display participant names accurately during meetings.

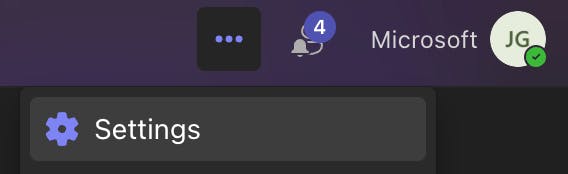

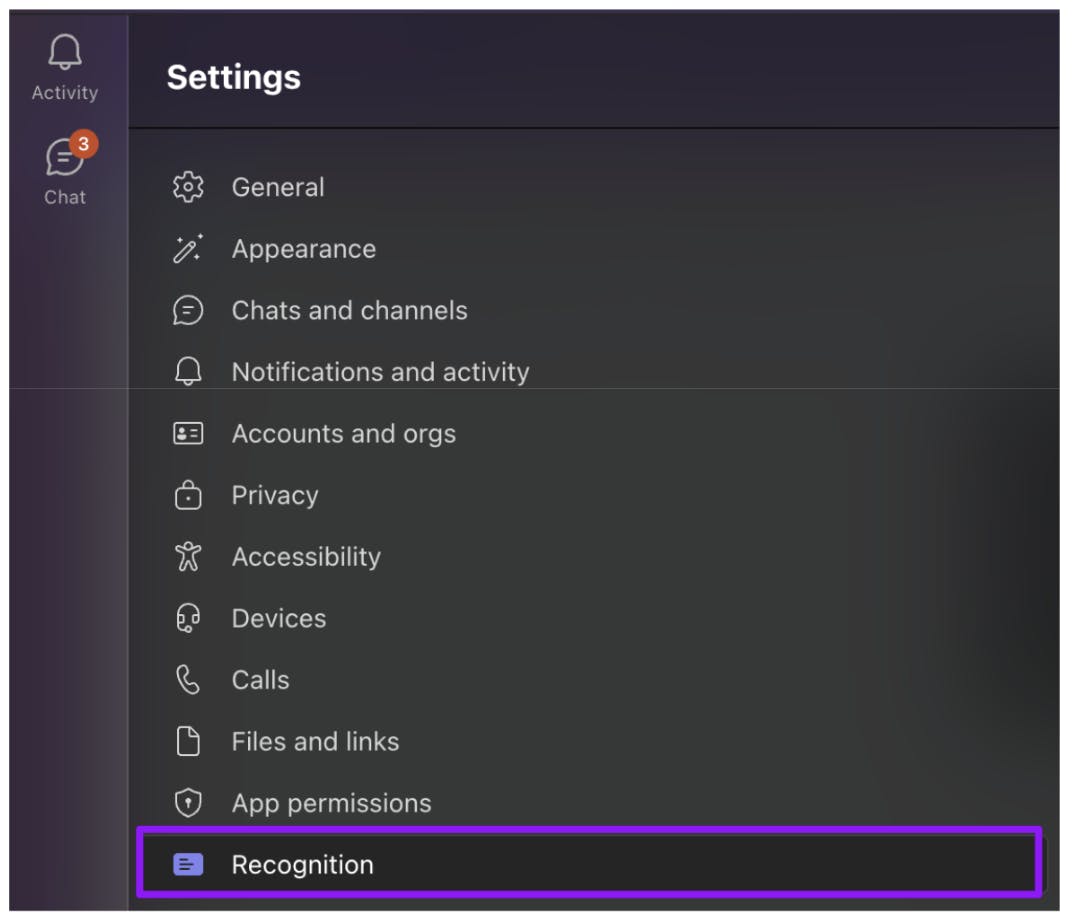

In the Teams Desktop application, go to settings
