1.1 How to Access System Settings

System settings enable you to control and configure your device audio/video settings, manage network settings, connect to Sync, and more.

Note: Logitech settings application is only available in Appliance mode. To configure settings in USB mode, use the Sync app. In screen share mode, accessing settings is disabled. Unplug the USB cable and try one of the following methods.

Note: When using an IP-based controller (such as an iPad) the settings application will be displayed on the TV screen, not the IP-based controller.

Touch Controller

Supported devices: Rally Bar, Rally Bar Mini, Rally Bar Huddle, RoomMate, Tap IP, Tap Scheduler.

1. Open your service provider settings.



2. Select system settings (This may vary based on your service provider).

3. Enter your service provider passcode.

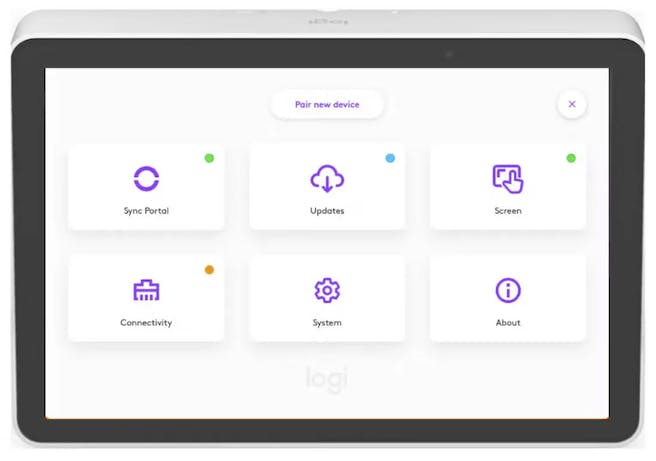

4. This will bring you to the CollabOS device settings.

Note: When using an IP-based controller (such as an iPad), the Rally Bar settings application will be displayed on the TV screen, not the IP-based controller.

Device Remote

Supported devices: Rally Bar, Rally Bar Mini, RoomMate.

1. Use the remote controller that came with your device.

2. Press and hold the End Call button for 10 seconds.



3. Enter your service provider passcode. This may vary based on the service provider.

4. This will bring you to the CollabOS device settings.

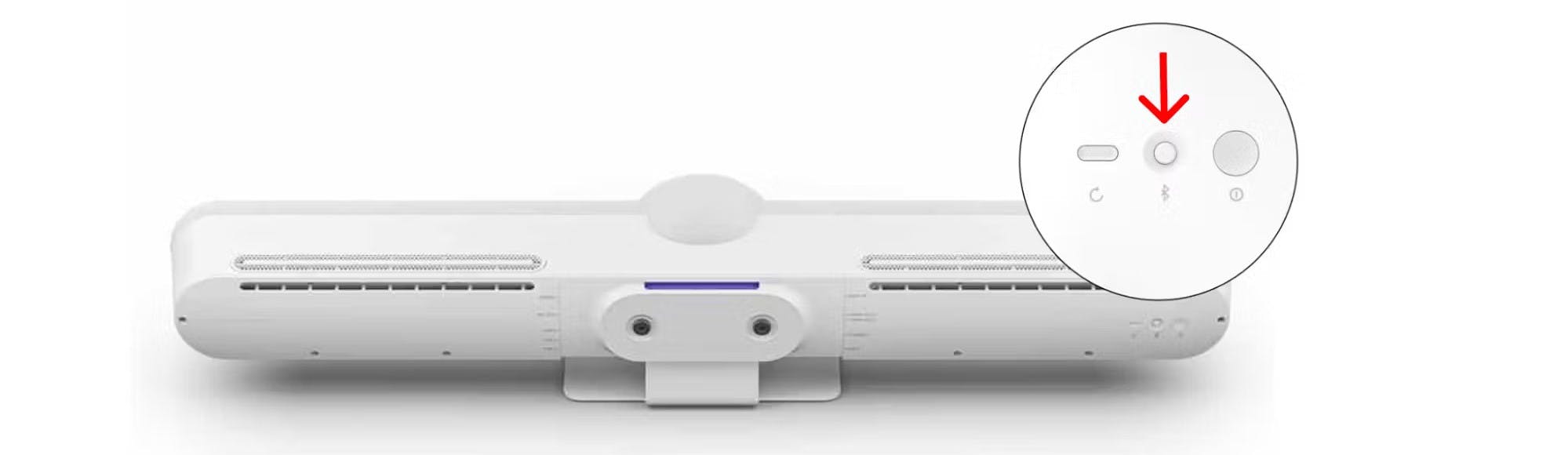

Hardware Button

Supported devices: All CollabOS devices.

1. Press the Bluetooth button 3 times to access the settings.



2. Enter your service provider passcode. [This may vary based on the service provider]

3. This will bring you to the CollabOS device settings.

Note: In service provider screen share mode, accessing settings via the hardware button is disabled.

If you are facing any device specific issue, we recommend opening a ticket with Prosupport.
