Online Options+ Mass Installation (Windows)

Logi Options+ software can be mass deployed remotely on Windows using popular deployment tools including SCCM and Intune, instructions for both can be found below. To use parameters to enable/disable features (e.g., Flow, SSO and Updates, etc...), you will need to install as a silent installation. Please see our Options+ Silent Installation & Feature Flags article for parameter guidelines.

You can navigate our mass deployment guide below:

Mass and Silent installation NotesSteps to deploy Options+ using SCCM1. Create an Application:2. Application Deployment Steps:3. TroubleshootingSteps to deploy Options+ using Intune1. Gather Softwares2. Create the Intunewin file3. Upload file in Intune Portal4. Verify Install:5. Troubleshooting:

Mass and Silent installation Notes

  • The installer file is around 750 MB in size for Windows .exe and 800MB for MacOS .pkg file

  • The Options+ offline installer can be used with the script DFU tool

  • The Options+ offline installer can be used with mass deployment (including silent install)

  • The existing Options+ offline app can be left installed if the user/ITDM wants to install a newer version of the Options+ offline installer; just run the installer on the same computer and it will carry out an upgrade. This so the end user will not lose their settings or paired devices

  • The Options+ offline installer will have the same security structure as the online version

  • The user will need administrator access to install the offline version, the same as the online version of Options+ installer.

Steps to deploy Options+ using SCCM

1. Create an Application:

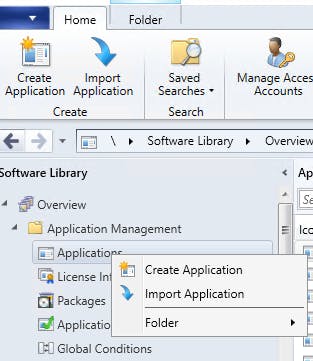

  1. In the Configuration Manager console, choose Software Library > Application Management > Applications.

  2. Right click Applications and select Create Application.

  3. Select Manually specify the application information  > Next .

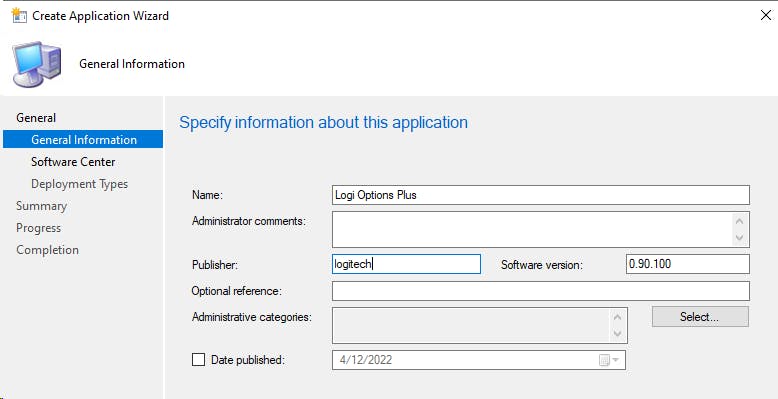

  4. Enter details about the Application > Next.

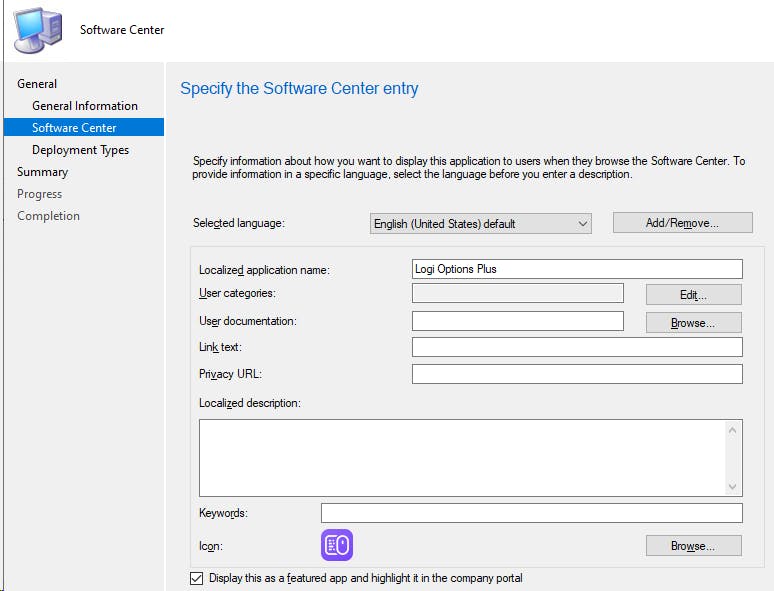

  1. Here we can select language add an icon for the application and we can highlight this app in Software Center > Next.

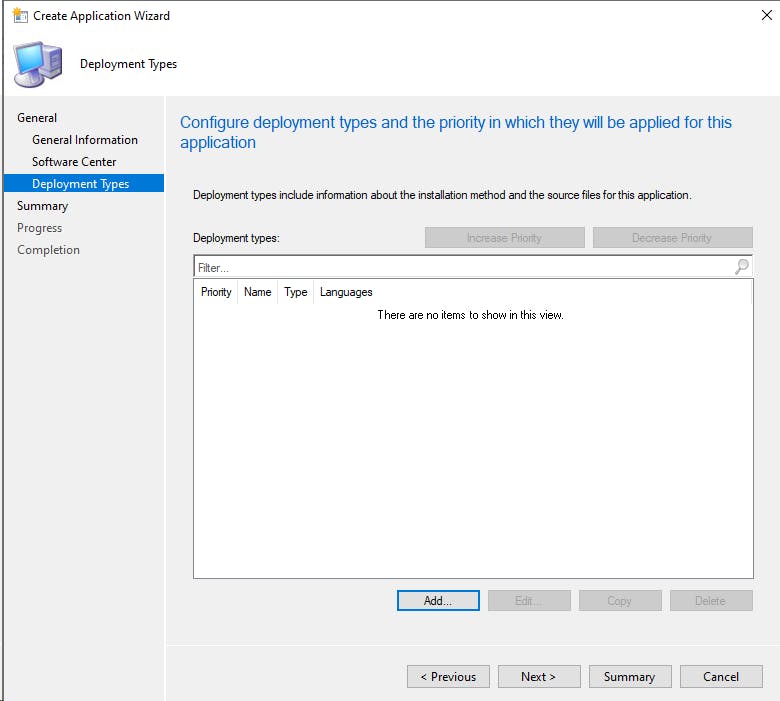

  2. Click Add to manually configure the deployment types.

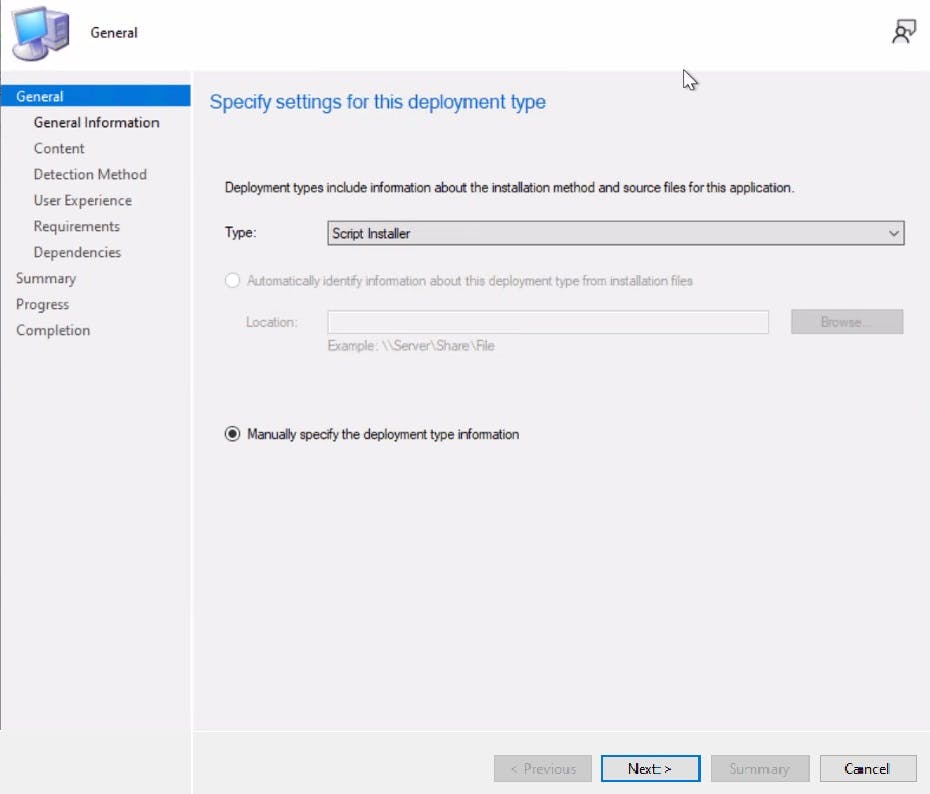

  3. Choose manually specify the deployment type information > Next.

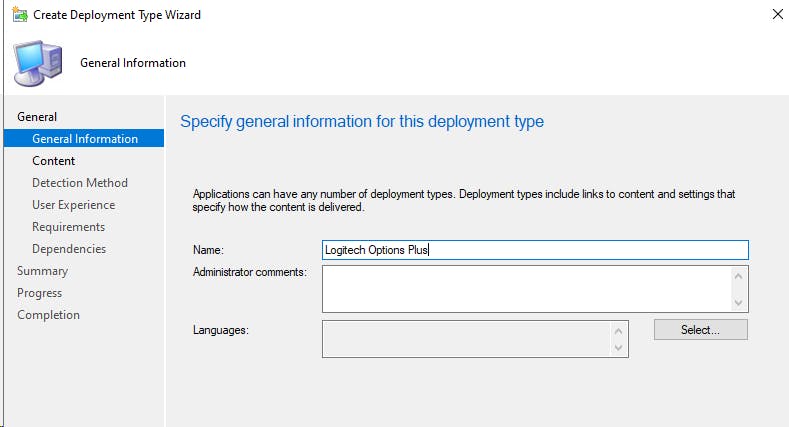

  4. Enter the name of the application > Next.

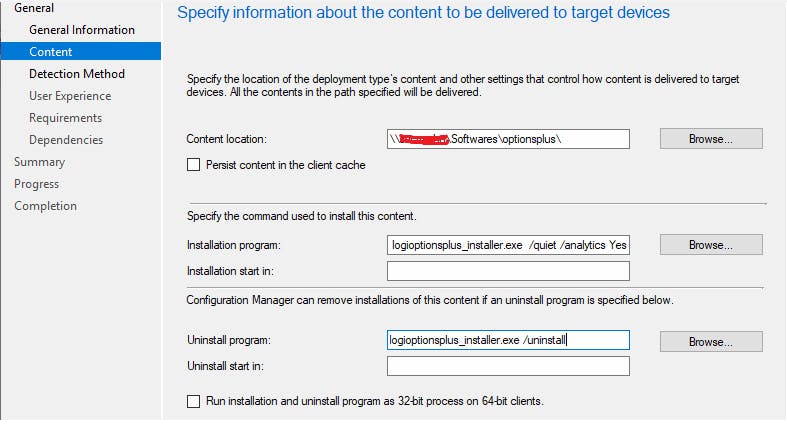

  5. Specify the folder and Content file location for the exe file and specify the command that will be used during the installation.

    • Install command: logioptionsplus_installer.exe /quiet

    • Uninstall command: logioptionsplus_installer.exe /quiet /uninstall

Supported Arguments

  • quiet - does installation silently without User Interface

  • analytics - Yes / No - Enables/disables analytics

  • flow - Yes / No.- Enables/disables flow feature

  • sso - Yes / No - Enables/disables SSO

  • update - Yes / No - Enables/disables auto update feature.

  • log <directory path>

Example:

  • logioptionsplus_installer.exe  /quiet /analytics Yes /flow Yes /sso No /update Yes /log c:\temp\optionsplus.log

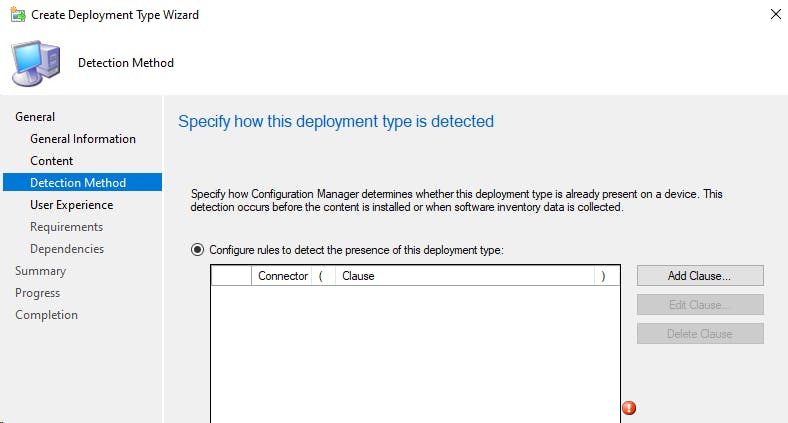

    1. Click Add Clause.

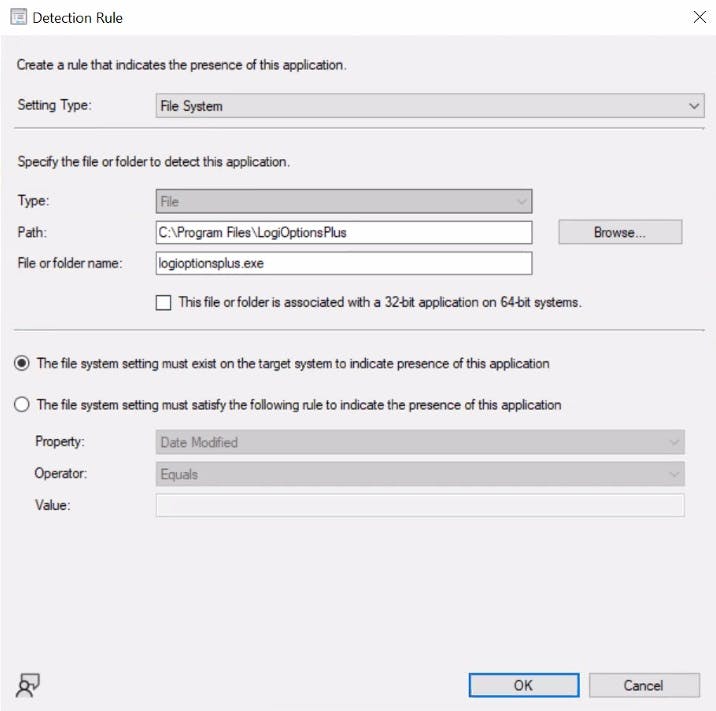

    2. Here we specify the detection method which checks if the application file exists on the specified location. This will indicate software is installed successfully. You can use a test computer to make sure the specified location is correct.

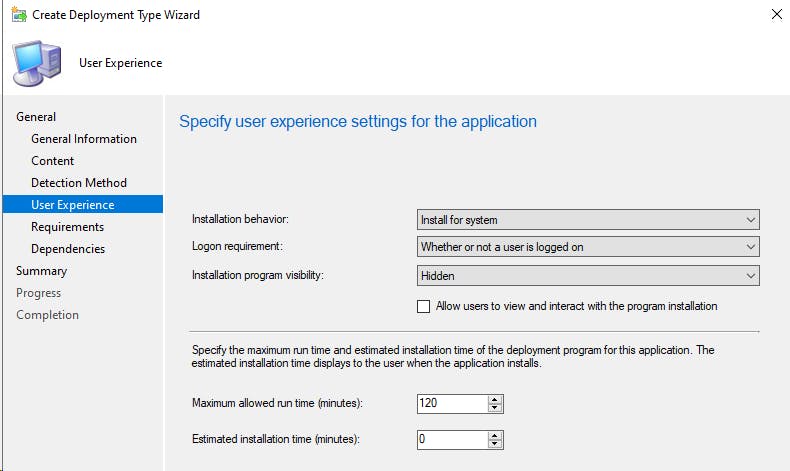

    3. Set install behavior this for system > Next.

    4. No requirements > Next.

    5. No dependencies > Next.

    6. Close the wizard > Next > Close the wizard.

Now you can distribute the Application and deploy to your collections

2. Application Deployment Steps:

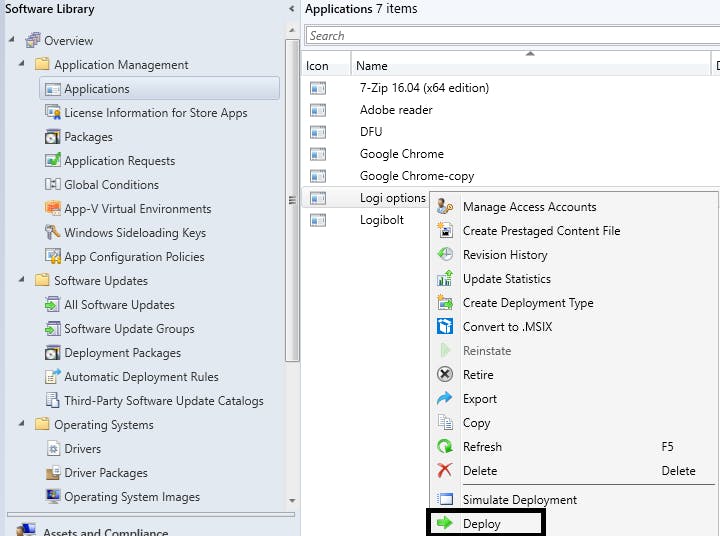

  1. In the Configuration Manager console, choose Software Library Application Management > Applications.  ,Right click the Options application and click Deploy.

  2. Click Browse and specify the collection as All Systems. Click Next.

  3. To add the Distribution Points, click in Add and choose your distribution point.

  4. Choose Action as “Install” and Purpose as “Required“.

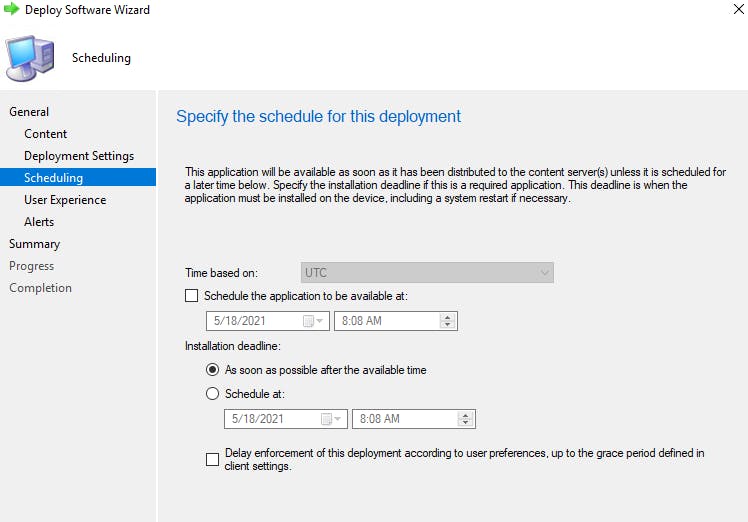

  5. Select the Installation deadline “as soon as possible“. Click Next.

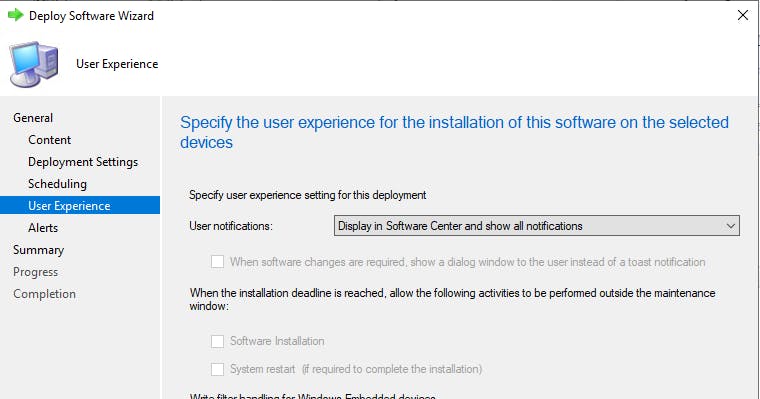

  6. For the User Notifications, select Display in the Software Center and all notifications. Click Next.

  7. Click Next > Next > Finish.

3. Troubleshooting

Check the log files from c:\temp\optionsplus.log (You should mention the path in installation commands otherwise you can’t get log files)

Steps to deploy Options+ using Intune

1. Gather Softwares

  1. Download Logitech options software from the following link.

  2. Create a new folder in c: (c:\optionsplus), then move the file to that new folder.

  3. Download the Microsoft Content Prep Tool (IntuneWinAppUtil.exe) https://github.com/Microsoft/Microsoft-Win32-Content-Prep-Tool

  4. Create a new folder in c:\IntuneWinAppUtil. Then Extract the downloaded zip file and copy the IntuneWinAppUtil.exe file into the c:\IntuneWinAppUtil folder.

2. Create the Intunewin file

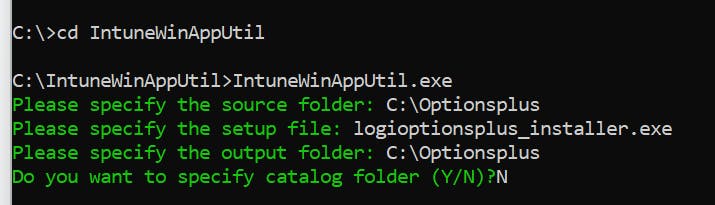

  1. Open a CMD prompt with the administrator and navigate to the folder you copied the Intune Win32 Content prep tool in. ex: c:\IntuneWinAppUtil.

  2. Run the IntuneWinAppUtil.exe command and fill in the following information:

    Source folder: c:\Optionsplus

    Setup file: logioptionsplus_installer.exe

    Output folder: C:\Optionsplus

    Specify the Catalog folder: No

    Press Enter

  3. The .intunewin file is then created (C:\Optionsplus\logioptionsplus_installer.intunewin)

3. Upload  file in Intune Portal

  1. Log into your Intune portal.

  2. Go to Apps.



  3. Click on All Apps.

  4. Add a new App.

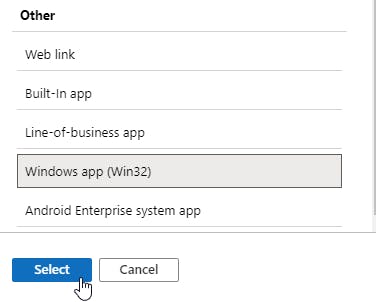

  5. Under others, choose Windows-app (Win32), then click Select.

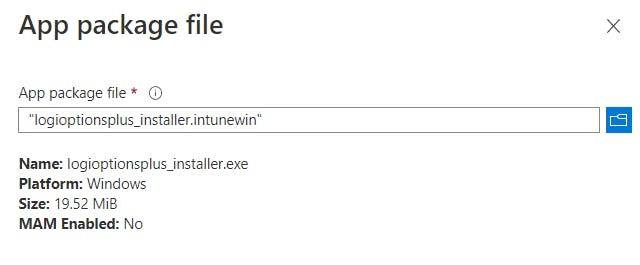

  6. Add the App Package file, this is the logioptionsplus_installer.intunewin file that you created above.

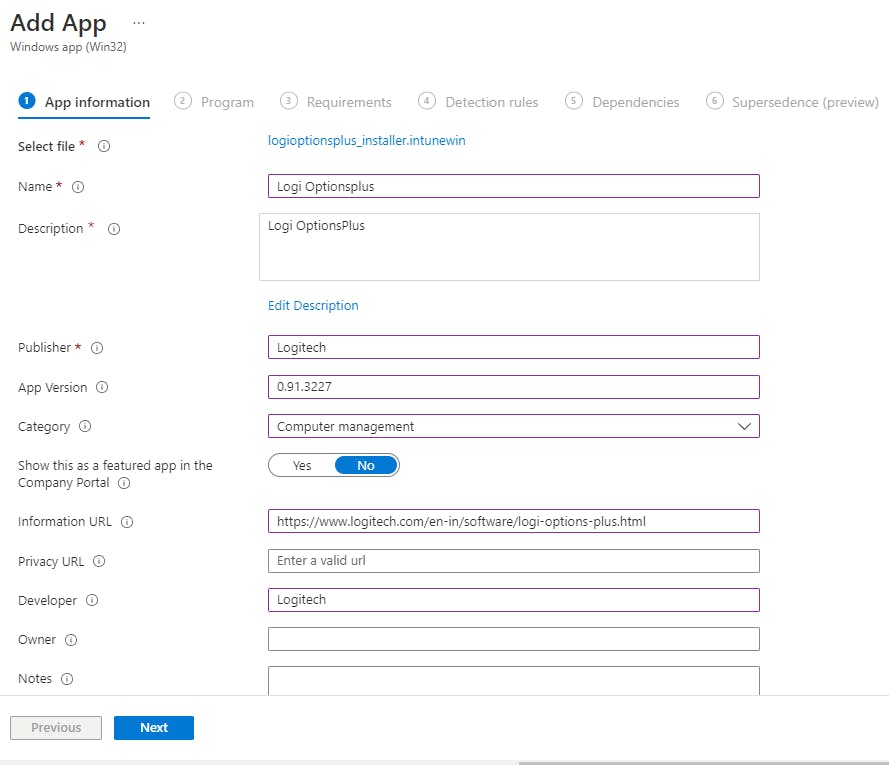

  7. In the App Information tab, you can customize this as needed.

    Click Next.

  8. In the Program tab, make the following changes:

    • Install command: logioptionsplus_installer.exe  /quiet /analytics Yes /flow Yes /sso No /update Yes /log c:\temp\optionsplus.log

    • Uninstall command: logioptionsplus_installer.exe /uninstall

    • Install behavior: System.

    • Device restart behavior: No specific actions.

    • Return code: Leave as default

    • Click Next.

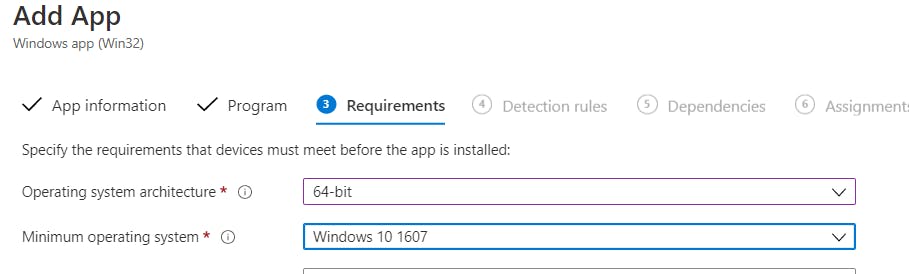

  9. For the Requirements tab, settings are:

    Operating system architecture: x64-Bit

    Minimum operating system: Windows 10 1607

    Click Next.

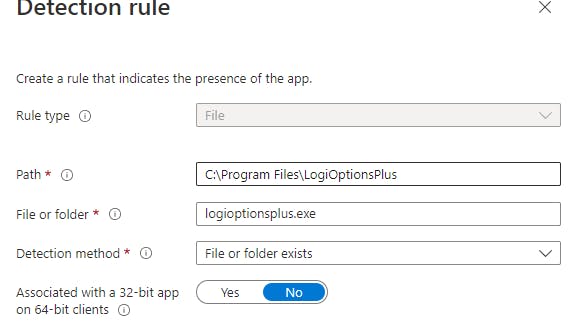

  10. Detection rules : Create a manually configured detection rule - Click Add

    • Rule Type: File

    • Path: C:\Program Files\LogiOptionsPlus

    • File: logioptionsplus.exe

    • Detection Method: File or Folder exists

    • Click Next > Next > Next.

      Note: Dependencies & Supersedence should be blank

Assignment:

  1. Add it to the required group.

  2. Make sure to hide all Toast Notifications.

  3. Click Next > Create

4. Verify Install:

  1. Go to the Apps List

  2. Drill Down into the Application you just created

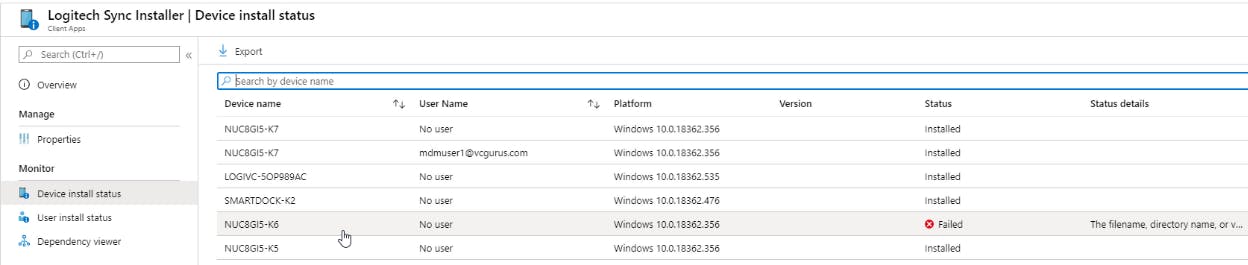

  3. Click on Device Install Status

  4. Check for any failed systems

5. Troubleshooting:

Drill down into the Managed Apps for the failed system:

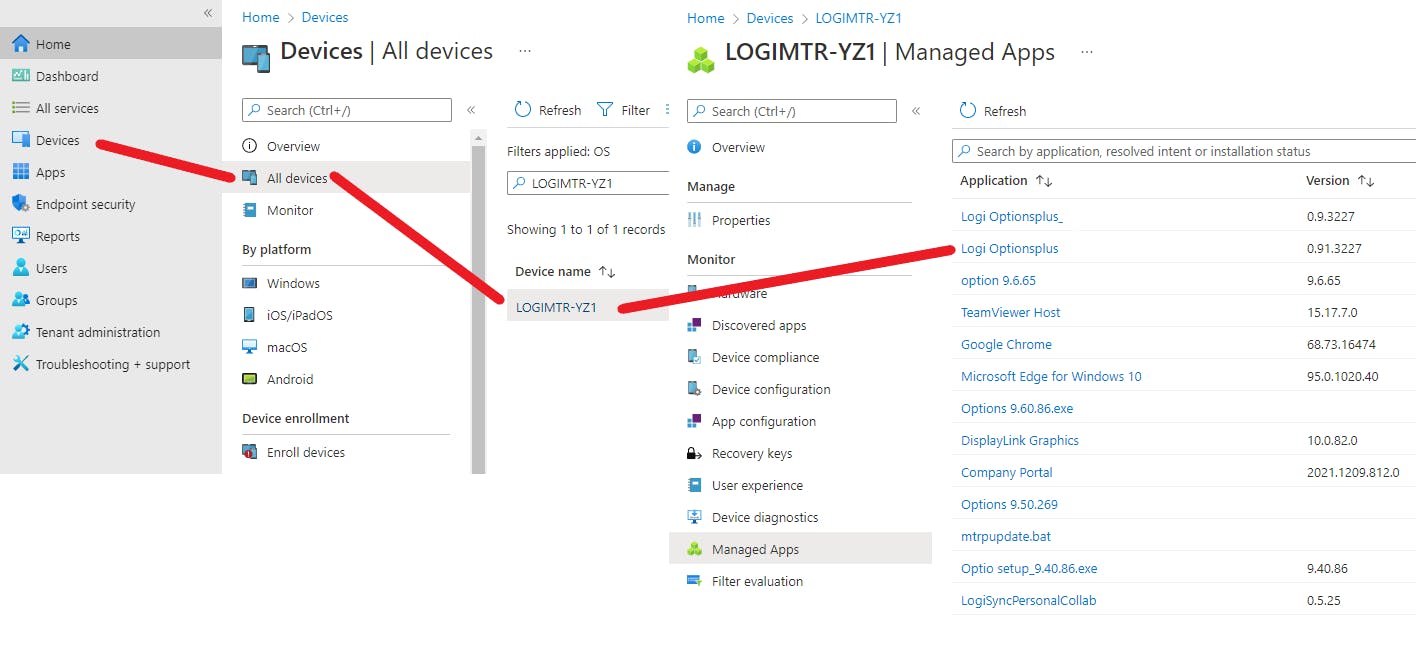

  1. Go To Devices > All Devices > Select the computer that failed and then select Managed Apps.

  2. Click on collect Logs and enter the path c:\windows\Temp\logioptionsplus.log

    • In a few minutes the log file will be ready to download

  3. Check the log files from c:\temp\optionsplus.log

    Note: You should mention the path in installation commands otherwise you can’t get log files.
