TV Mount Adapter Kit for Rally Bar Huddle

Installation Instructions: TV Mount Adapter Kit for Rally Bar Huddle

Steps 1-4 use the multi-mount included with Rally Bar Huddle

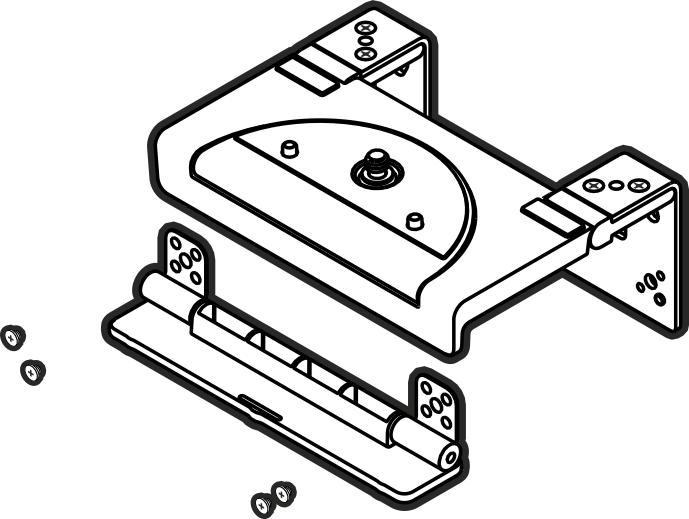

Step 1: Remove ‘foot’ by unscrewing 4 screws; pieces won’t be used for new config.

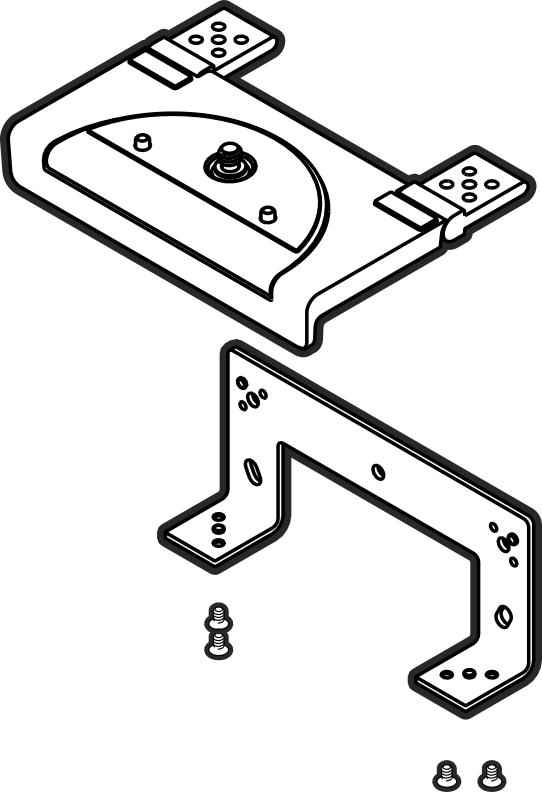

Step 2: Remove L Bracket by unscrewing 4 screws; retain these for use in next steps.

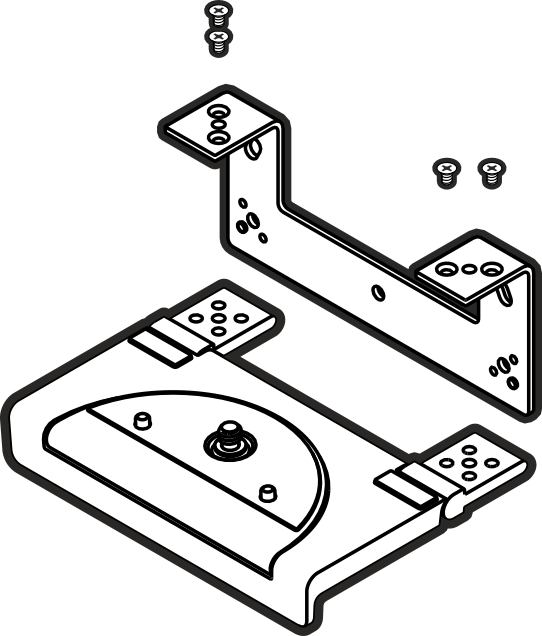

Step 3: Flip L Bracket 180° so that the black tabs of platform sit atop the L Bracket.

Step 4: Reattach L Bracket using 4 screws it was originally attached with.

Step 5 uses the pieces included with TV Mount Adapter Kit for Rally Bar Huddle

Step 5: Inset washer to recess of long arm. Aligning with top hole of L Bracket, use the washer and screw to connect all pieces together.
