Sight Wiring Diagram Guide

Below, you will find a collection of different room configurations specific to Sight that link directly to the corresponding page of our Wiring Diagram. Most of the configurations below are shown with Tap as room controller, but can be substituted with the Tap IP using the connection methods detailed here: Wiring configurations for Tap and Tap IP (page 3).

• Page 66: Mic Pod daisy chain

• Page 67: Ceiling Mount Configuration (applies to Appliance and USB modes)

• Page 68: Appliance mode with Rally Bar/Rally Bar Mini

• Page 69: Appliance mode with Rally Bar/Rally Bar Mini and Mic Pod Hub

• Page 70: Sight with Scribe

• Page 71: USB mode with Rally Bar/Rally Bar Mini

• Page 72: BYOD mode with Rally Bar/Rally Bar Mini

• Page 75: USB mode with Rally Bar/Rally Bar Mini and Swytch

• Page 76: Appliance mode with Rally Bar/Rally Bar Mini and Swytch

• Page 77: BYOD mode with Rally Bar/Rally Bar Mini and Swytch

• Page 78: With Rally Plus: PC at Display Hub

• Page 79: With Rally Plus: PC at Table Hub

Below you will find two new pages that will be added to the Wiring Diagram soon. Both cover Sight daisy chain setup which is a beta feature and requires CollabOS 1.15.

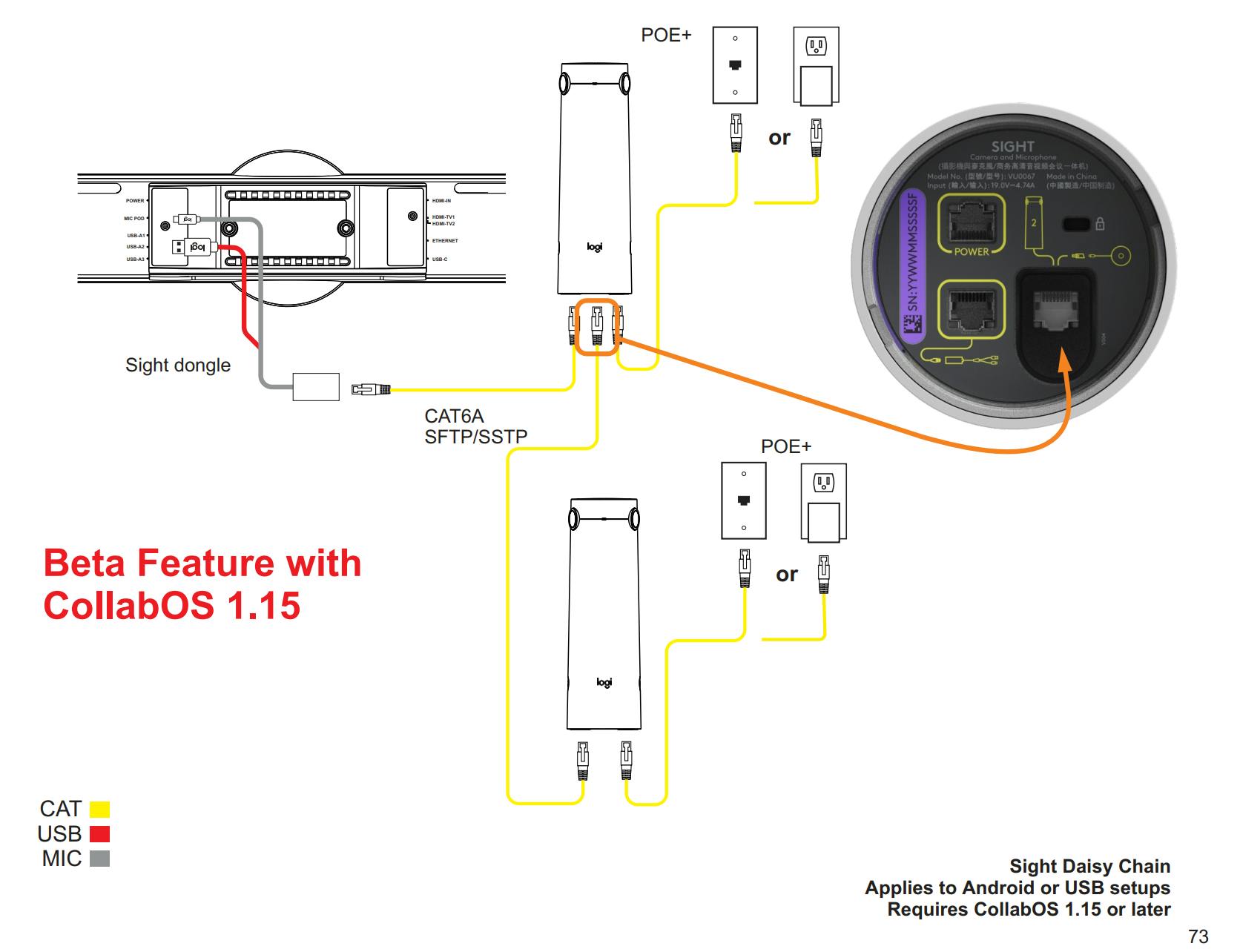

Sight Daisy Chain - Applies to Android or USB setups

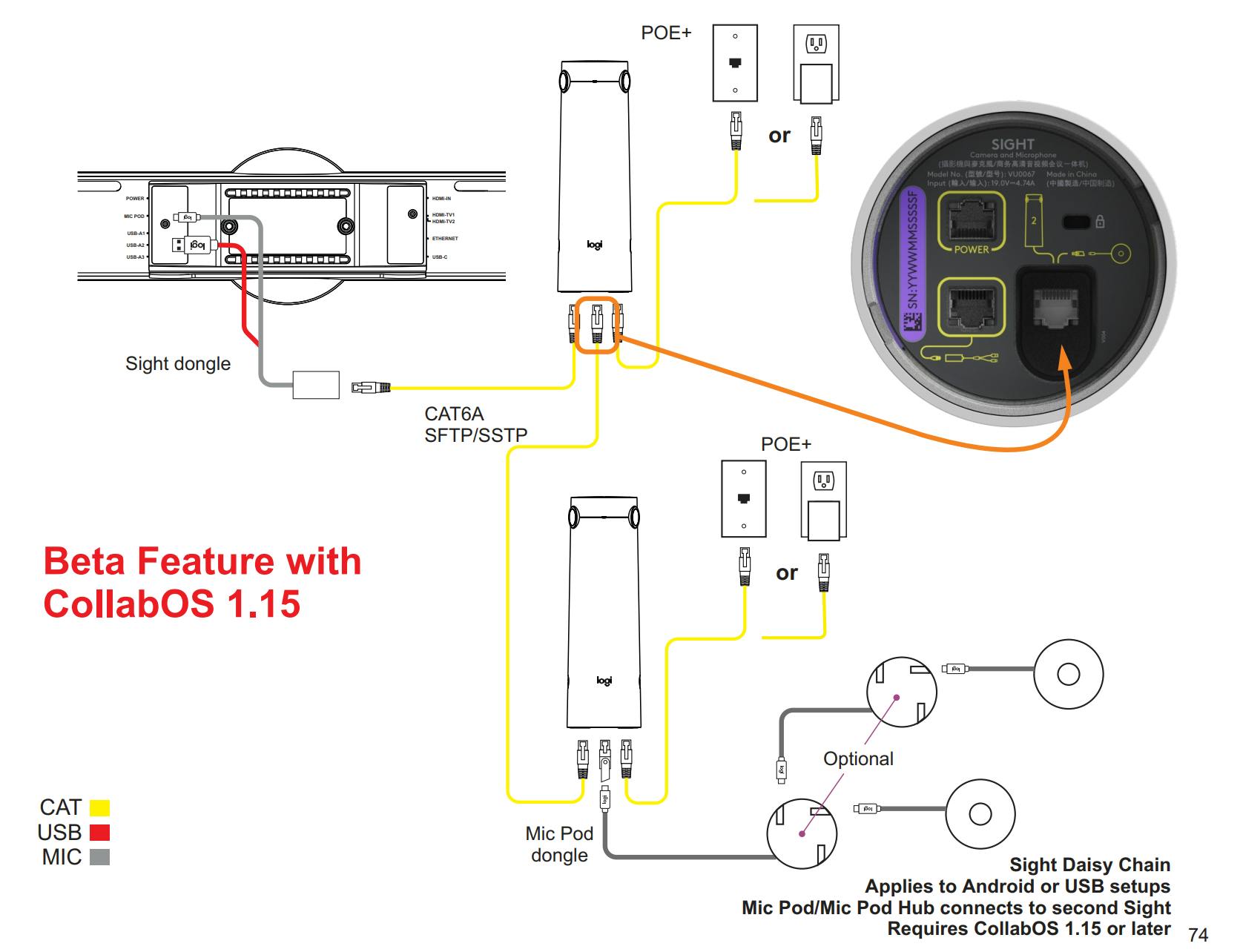

Sight Daisy Chain - Applies to Android or USB setups - Mic Pod/Mic Pod Hub connects to second Sight
