RoomMate Specifications

CollabOS is a standalone device for conference cameras and peripherals of compatible meeting room solutions it is is powered by CollabOS, allowing you to easily deploy Microsoft Teams ® Rooms on Android™, Zoom Rooms™ devices, and other leading video conferencing services.

RoomMate Specifications

• Height: 1.36 in / 34.5 mm

• Width: 6.34 in / 161 mm

• Depth: 8.31 in / 211 mm

• Weight: 1.14 lbs / 857 g

General Product Specifications

• Appliance mode: Supports compatible video conferencing software, including Zoom Rooms Appliances and additional video conferencing platforms.

• Compatible devices: Logitech MeetUp, Rally Camera, Rally System, Rally Plus System

• Network Protocol Support: IPv4, IPv6

• Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

• Part Number: 950-000081

• Package Contents: Power supply, AC cable, VESA bracket, Remote control, User documentation

• Device Management: Logitech Sync

• Displays Supported: Two (Three with certain configurations)

• Display Resolution: 1080p

Power & Cables

• Power Supply: Auto-sensing

• Operating Voltage/Power: 100-240V, 19V, 4.74A

• Power Supply Dimensions: 5 in (127 mm) x 2.01 in (51 mm) x 1.18 in (30 mm)

• DC Cable: 5 ft (1.5 m)

• AC Cable: 3.28 ft (1 m)

Security

• Full Disk Encryption: AES-128

• Data Encryption: Symmetric Keys, PKI

• Device Identity: Protected by device attestation

• Device Access: Authenticated using API

• Key Protection: Arm TrustZone, RPMP

• Device Security: Kensington Lock

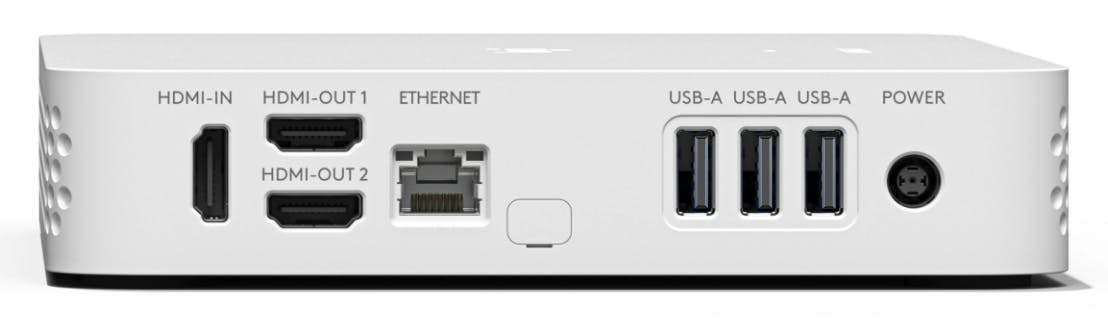

Interfaces

• HDMI Out: 2x HDMI 1.4

• HDMI In: 1x HDMI 1.4

• USB: 3x Type A USB 2.0

• Network: 10/100/1G Ethernet

• WiFi: 802.11a/b/g/n/ac

Environmental

• Operating Temperature: 0 to 40°C

• Storage Temperature: -40 to 70°C

• Humidity: 10 to 95%

Warranty Information

• Standard: 2-year limited hardware warranty included

• Extended: Additional one-year extended warranty available at the time of hardware purchase. Contact your reseller for availability.
